Sintered Metal Flame Arresters

Sintered Metal Flame Arresters

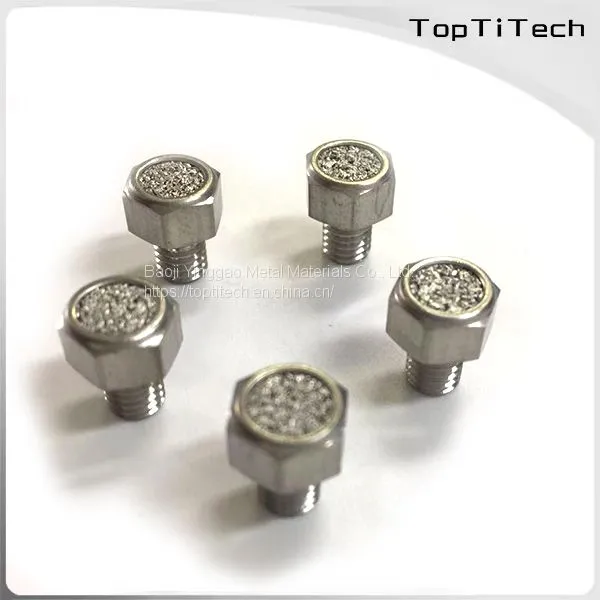

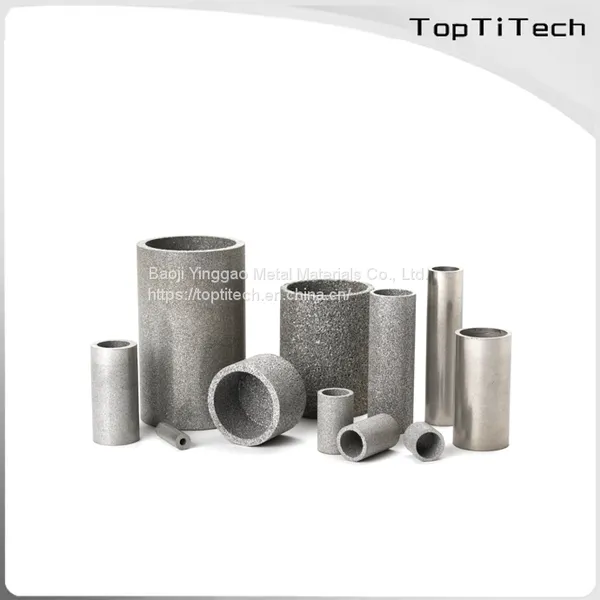

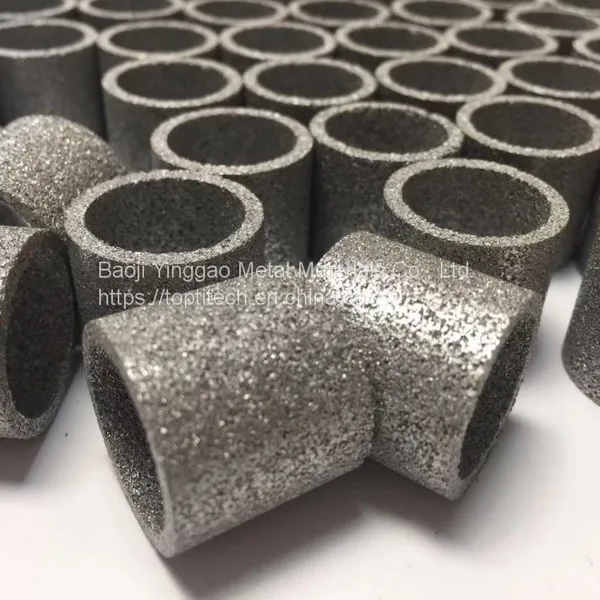

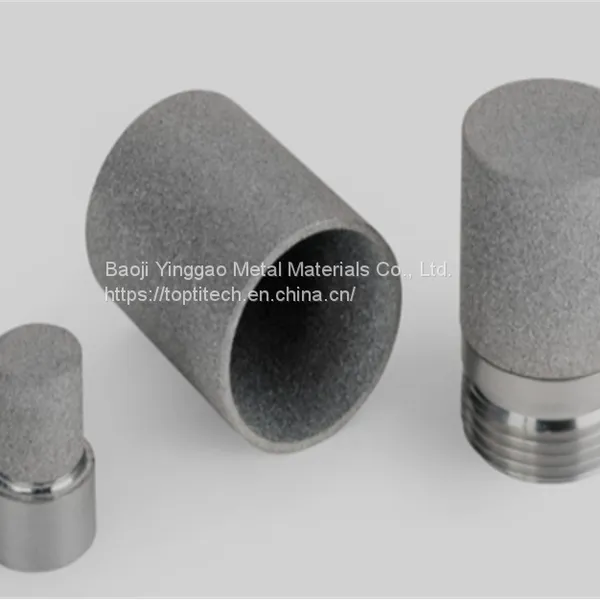

Sintered metal flame arresters are designed to prevent the propagation of flames in gas or vapor handling systems. They are typically composed of a cylindrical housing with a sintered metal element inside. The element is made up of multiple layers of metal powder that are compressed and sintered (heated without melting) to form a porous material with precise pore sizes and distribution.

When a flammable gas or vapor mixture passes through the flame arrester, the element acts as a filter, allowing the gas or vapor to flow through while trapping any flames or sparks. The porous material of the element also provides a large surface area for heat dissipation, making it difficult for any trapped flames to ignite the surrounding atmosphere.

Product parameters

Material: stainless steel 304/316L

Pore size: 0.2um, 0.5um, 2um, 5um, 10um, 15um, 20um, 40um, 60um, 90um, 100um

Technology: Powder Sintering

Temperature range: below 600°C

Style: customized according to customer needs

Features

Effective flame arrestation: The porous material of the sintered metal element acts as a filter, allowing gas or vapor to pass through while trapping any flames or sparks. This helps to prevent the risk of fire or explosion in industrial settings where flammable / or vapors are present.

Precise flow control: The pore size and distribution of the sintered metal element can be tailored to control the velocity and direction of gas or vapor flow. This allows for precise flow control, which is important in many industrial applications.

Durable and long-lasting: Sintered metal flame arresters are made from high-quality materials that are designed to withstand harsh industrial environments. They are typically very durable and long-lasting, providing reliable flame arrestation for many years.

Low maintenance: Sintered metal flame arresters require minimal maintenance, making them a cost-effective solution for many industrial applications. Regular inspections and cleaning can help ensure that the porous element remains free of debris and in good working condition.

Application

Oil storage tanks are commonly used to store crude oil, refined petroleum products, and other flammable liquids. In order to prevent the risk of fire or explosion, flame arresters are often installed on the vents of these tanks.

When the tank is filled or emptied, a mixture of air and flammable vapors is released through the vent. If a flame were to ignite this mixture, it could cause a catastrophic explosion. However, by installing a flame arrester on the vent, the flammable vapors are filtered through the sintered metal element, preventing any flames or sparks from passing through.

In addition to storage tanks, sintered metal flame arresters are also commonly used in pipelines that transport crude oil, refined petroleum products, and other flammable / or vapors. They can be installed at various points along the pipeline to prevent the propagation of flames in the event of a fire or explosion.
