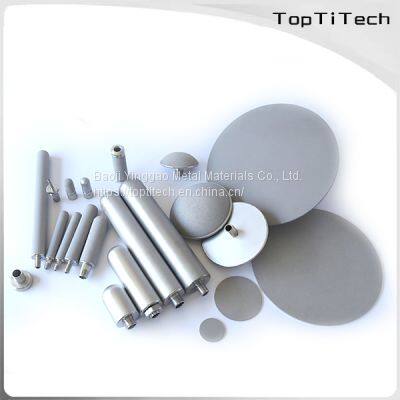

Polished Stainless Steel Powder Filter Elements

Polished Stainless Steel Powder Filter Elements

Polished stainless steel powder filter elements are manufactured using high-quality stainless steel powder that has been processed using advanced technology. These filters have a uniform structure with high porosity and pore diameter ranging from 0.2μm to 100μm, and porosity between 35% to 60%.

Polished stainless steel powder filter elements are available in various shapes and sizes, including cylindrical and disc-shaped. The cylindrical filter elements have a diameter ranging from 10mm to 1000mm, while the disc-shaped filter elements have a diameter ranging from 5mm to 300mm. The filter elements generate uniform filtration and have low resistance, which reduces energy consumption.

Products Parameters

Material: S304/SS316L

Outer diameter: 5~300mm

Length: 10~1000mm (more than 1000mm can be welded)

Filtration accuracy: 0.2um~100um

Surface treatment：Polished

Inlet/outlet connection：Screw thread, flange

Features

1. Durability, corrosion resistance, and high-temperature tolerance

2. It can be cleaned and reused multiple times

3. Additionally, the polishing process helps to create a smoother surface, which can improve the filter's efficiency and reduce the risk of clogging.

4. Compatibility: Polish stainless steel filters are compatible with a wide range of liquids and gases, including corrosive and high-temperature fluids. They are also resistant to many chemicals, making them suitable for use in harsh environments.

Products Applications

Food Industry: Polish stainless steel filters are commonly used in the food industry to remove contaminants such as bacteria, yeast, and sediment from liquids. They are used in various applications, including filtering wine and beer, filtering cooking oil, and clarifying juices and syrups.

Pharmaceutical Industry: In the pharmaceutical industry, Polish stainless steel filters are used to remove impurities and particles from liquids used in drug production. They are also used in sterile filtration to remove microorganisms and other contaminants from pharmaceutical solutions.

Water Treatment: Polish stainless steel filters are used in water treatment to remove impurities and particles from water. They are commonly used to filter drinking water, wastewater, and industrial process water.

Compatibility with Extreme Temperatures: Polish stainless steel filters are compatible with extreme temperatures, making them suitable for use in high-temperature applications. They can withstand temperatures up to 1000°F (538°C) and are commonly used in applications such as high-temperature gas filtration.
