Home > Instruments & Meters > Test Instrument > Test Machine > WAIOT-N / AED NB-IoT Module

WAIOT-N / AED NB-IoT Module

Name: WAIOT-N / AED NB-IoT Module
Brand: whaleteq
SKU: 171822335
Availability: InStock

Shanghai Lifeitest Technology Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

whaleteq

Place of Origin:

Taiwan, China

Model Number:

WAIOT-N / AED NB-IoT Module

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

20 days

Product Details
Company Profile
Contact Us

Brand Name whaleteq

Place of Origin Taiwan, China

Model Number WAIOT-N / AED NB-IoT Module

Power Other, 5V 1A DC Power Adaptor

Usage Other, ECG patterns for AED defibrillation tests

WAIOT-N / AED NB-IoT Module

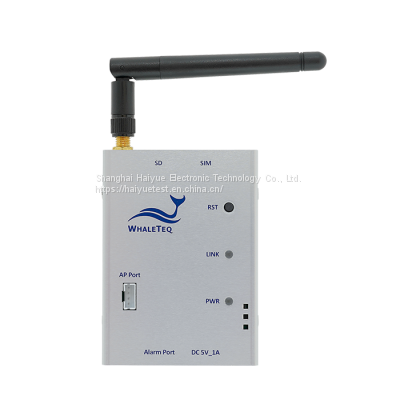

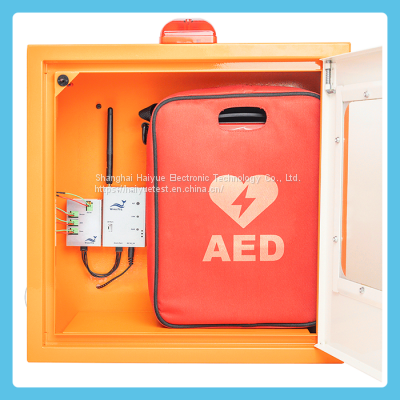

The AED NB-IoT Module WAIOT-N includes the main unit and the IoT bridge, which can be installed in the AED cabinet, allowing users to remotely monitor the AEDs with NB-IoT technology. The main unit automatically identifies the different audio frequencies of AED's daily self-test results; when used with the IoT bridge, it can detect the opening and closing of the AED cabinet, whether the AED is in the cabinet, etc., and upload all the aforementioned status to a user-owned management system or WhaleTeq AIMS CMS – Cloud platform in real time. The WAIOT-N assists AED managers in keeping abreast of each AED equipment at any time and saves the time for personnel to on-site confirm the self-test status one by one. It’s ideal for application on a massive amount of widely distributed AEDs with effortless management.

Specifications
General Specifications
Antenna	Band 1, 2, 3, 4, 5, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 66, 71, 85
SIM Card Type	Nano-SIM
Power	5V 1A DC Power Adaptor
Mechanical	Housing: Aluminum Size (L x W x H): 6.1 x 8.4 x 2.25cm Weight: 81.8g
Sound Detection Specifications
Audio Frequency Analysis Algorithm	Max: 2KHz
Tolerance	±15.6Hz (±4 KHz/256)
Alarm/Siren Detection Frequency	440, 500, 560, 800, 1000, 1200Hz

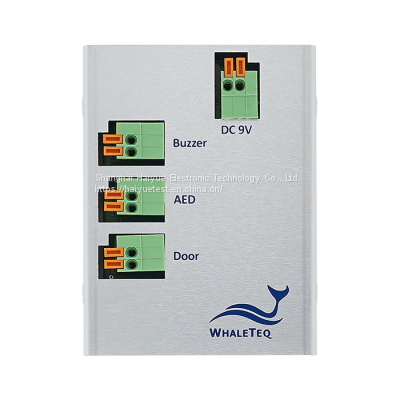

WAIOT-N IoT Bridge

	Specifications
Port	Buzzer, AED, AED cabinet
Mechanical	Housing: Aluminum Size (L x W x H): 5.0 x 6.6 x 0.82cm Weight: 43.2g

Product Tags: AED defibrillation tests , ECG patterns , voltage multimeter , Withstand more intense defibrillation shocks , outstanding electrical conductivity , Standalone device , Various signal simulations
