WECG400 ECG Performance Tester USING Production Line

Compliance tests conforming with IEC 60601-2-47, China YY0885, and YY 9706.247-2021

• Integrates IEC 60601-2-47 test items*, including dynamic range, input impedance, frequency response, etc.

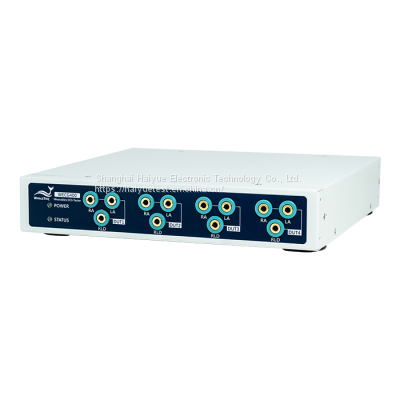

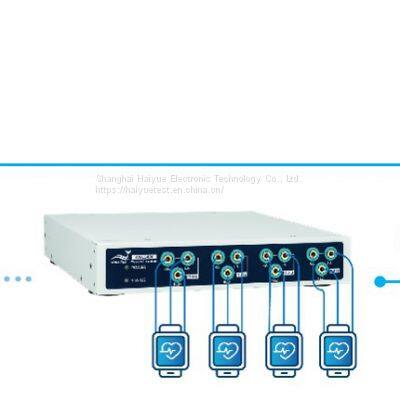

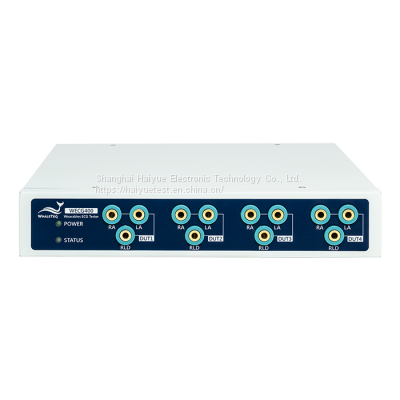

• Equipped with 4 sets of electrode terminals － RA/LA/RLD electrode terminals on each set to meet testing needs for wearable device's ECG function

• Outputs 7 types of standard ECG waveforms － ECG Waveform, Sine, Triangle, Square, Exponential, Rectangle Pulse, and Triangle Pulse

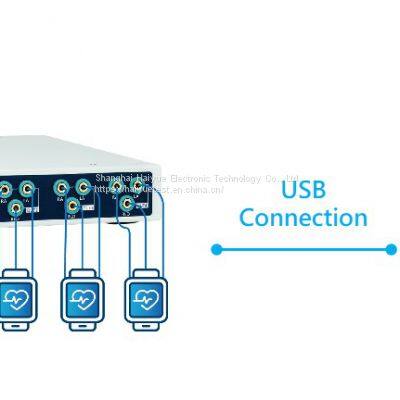

• Provides SDK － users can flexibly develop automated testing programs and control multiple WECG400 to test more than 4 DUTs simultaneously

• Supports sequential testing － tests DUTs one at a time according to a user-defined sequence

• Equipped with 4 DUT Monitor ports to connect to an oscilloscope － amplifies the ECG signals to help users monitor the signal output with higher resolutions

• Rack-mountable and easy to deploy with the 1U height design.

• Parameters		Range	Resolutions
  ECG Waveform	Frequency (Hz)	0.02 ~ 6Hz	0.01
  	Frequency (BPM)	1 ~ 360BPM	1
  	Amplitude	(-5) ~ 5mV	0.01
  Sine	Frequency (Hz)	0.05 ~ 500Hz	0.01
  	Frequency (BPM)	3 ~ 30000BPM	1
  	Amplitude	(-10) ~ 10mV	0.01
  Triangle	Frequency (Hz)	0.05 ~ 500Hz	0.01
  	Frequency (BPM)	3 ~ 30000BPM	1
  	Amplitude	(-10) ~ 10mV	0.01
  Square	Frequency (Hz)	0.05 ~ 500Hz	0.01
  	Frequency (BPM)	3 ~ 30000BPM	1
  	Amplitude	(-10) ~ 10mV	0.01
  Exponential	Frequency (Hz)	0.05 ~ 5Hz	0.01
  	Frequency (BPM)	3 ~ 300BPM	1
  	Amplitude	(-5) ~ 5mV	0.01
  Rectangle Pulse	Frequency (Hz)	0.05 ~ 5Hz	0.01
  	Frequency (BPM)	3 ~ 300BPM	1
  	Amplitude	(-5) ~ 5mV	0.01
  	Pulse width (frequency: 0.05Hz)	1 ~ 300ms	1
  	Pulse width (frequency: 5Hz)	1 ~ 200ms	1
  Triangle Pulse	Frequency (Hz)	0.05 ~ 5Hz	0.01
  	Frequency (BPM)	3 ~ 300BPM	1
  	Amplitude	(-5) ~ 5mV	0.01
  	Pulse width (frequency: 0.05Hz)	1 ~ 300ms	1
  	Pulse width (frequency: 5Hz)	1 ~ 200ms	1



• Input Impedance / Frequency Response Signal add-on
• 　　　　　　 　　　　　　

  Parameters		Range	Default Values	Resolutions
  Play raw data	Sample rate	Maximum: 40K Hz	-	-
  DC offset (non-Variable)		-300, 0, +300mV	0mV	300
  DC offset (Variable)		(-1000) ~ 1000mV	0mV	100
  Input impedance switch		100Ω (short circuit)	-	-
  		620kΩ / 4.7 nF on/off	Off (on: short circuit)	-
  		10MΩ / 180 pF on/off	Off (on: short circuit)	-



• Product System Capacity and Standard Requirements Table

• Parameters	Specifications	System Capability
  Main output voltage accuracy	±1% for amplitudes of 0.5mVpp or higher	±0.3%
  Main output voltage resolution (DAC resolution)	N/A	0.15µV
  Frequency / pulse repetition rate accuracy	±1%	±0.1%
  Pulse duration / timing accuracy	±1ms	±0.2ms
  Resistor tolerance	±1%	±0.5%
  Capacitor tolerance	±5%	±5%
  Precision 1000 : 1 divider	±0.5%	±0.3%
  Sample rate	5kHz ± 0.1%	10kHz ± 0.05% (50ppm)
  DC offset (fixed, noise-free, sourced from the internal supercapacitor)	300mV ± 1%	300mV ± 0.1%
  DC offset (variable, up to 1000mV)	Setting ±1% or ±3mV	Setting ±1% or ±3mV
  Environment	15 ~ 30°C (by design) 30 ~ 80% RH (by design)	5 ~ 40°C 30 ~ 80% RH altitude <2000M Overvoltage CAT II
