SECG 4.0 ECG Performance Testing

Shanghai Lifeitest Technology Co., Ltd.
SECG 4.0 ECG Performance Testing thumbnail-1
SECG 4.0 ECG Performance Testing thumbnail-2
SECG 4.0 ECG Performance Testing thumbnail-3
SECG 4.0 ECG Performance Testing thumbnail-4
SECG 4.0 ECG Performance Testing thumbnail-5
SECG 4.0 ECG Performance Testing photo-1

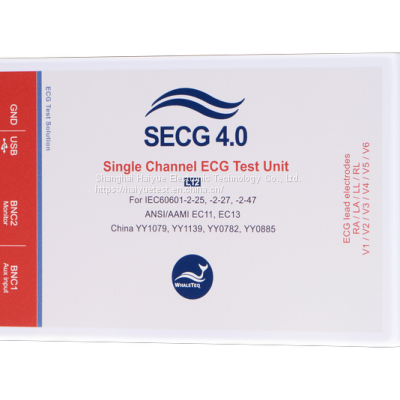

SECG 4.0 ECG Performance Testing photo-2

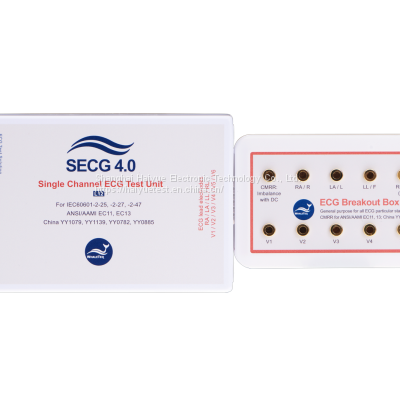

SECG 4.0 ECG Performance Testing photo-3
SECG 4.0 ECG Performance Testing photo-4

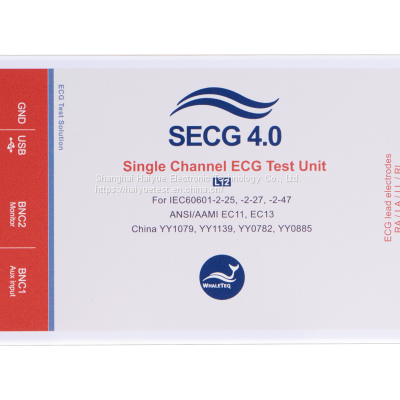

SECG 4.0 ECG Performance Testing photo-5
CNY 49000 - 52000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
whaleteq
Place of Origin:
Taiwan, China
Model Number:
SECG 4.0
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name whaleteq
Place of Origin Taiwan, China
Model Number SECG 4.0
Power Other, ±1% for amplitudes of 0.5mVpp or higher
Usage Other, ECG performance testing
SECG 4.0
The ECG simulator designed for performance testing. Suitable for compliance and production line testing.
Compliant with IEC 60601-2-25, IEC 60601-2-27, IEC 60601-2-47, ANSI / AAMI EC11, ANSI / AAMI EC13, GB9706.225, GB9706.227, YY9706.247, YY107Single channel performance tester for diagnostic ECG, monitoring ECG and ambulatory ECG


    • The ECG simulator designed for performance testing. Suitable for compliance and production line testing.
    Compliant with IEC 60601-2-25, IEC 60601-2-27, IEC 60601-2-47, ANSI / AAMI EC11, ANSI / AAMI EC13, GB9706.225, GB9706.227, YY9706.247, YY1079, YY1139, YY078Built-in test circuits as defined in ECG standards

  • Excellent shielding and grounding design makes amplitude and frequency accuracy <± 1%

  • DC offset and pacemaker signal output can be adjustable

  • Load ECG file function enables to load and replay recorded or programmed waveforms

  • Offer alternative input of external generator for arbitrary waveforms

  • Software Development Kit (SDK) assists user to develop customized or automated test software with less efforts

  • Optional Standard Assistant software pack simplifies the medical standard with test sequences, options, parameters and pass criterions.

  • ParametersSpecificationsSystem capability
    Main output voltage accuracy±1% for amplitudes of 0.5mVpp or higher±0.3%
    Main output voltage resolution
    (DAC resolution)    		N/A2.5µV
    Frequency / pulse repetition rate accuracy±1%±0.1%
    Pulse duration / timing accuracy (excluding pacing)±1ms±0.2ms
    Pacing pulse width accuracy±5µs±1µs
    Pacing pulse amplitude accuracy, range±2mV pulse: ±1%
    >2mV pulse: ±10%
    Range: ±2mV ~ ±700mV    		±2mV pulse: ±0.3%
    100mV pulse: ±1% or ±5mV
    Pacing pulse characteristicsRise/fall time 5µs
    Overshoot <1%
    Settling time <1%
    Pacing pulse overshoot (intentional)Method A according to IEC 60601-2-27
    Resistor tolerance±1%±0.5%
    Capacitor tolerance±5%±5%
    Precision 1000:1 divider (100KΩ:100Ω)±0.2%±0.1%
    Sample rate5kHz ± 0.1%5kHz ± 0.05% (50ppm)
    DC offset
    (fixed, noise free, from internal supercapacitor)    		300mV ± 1%300mV ±0.1%
    DC offset
    (variable, may include up to 50µVpp noise)    		Setting ±1% or ±3mVSetting ±1% or ±3mV


Product Tags: ECG performance testing , Capable of adding noise , respiration and lead-off simulations , R&D and compliance testing , Compliant with IEC60601-2-25 , Multiple noise simulations , Various signal simulations , Load and play recorded , Standalone ECG simulator
