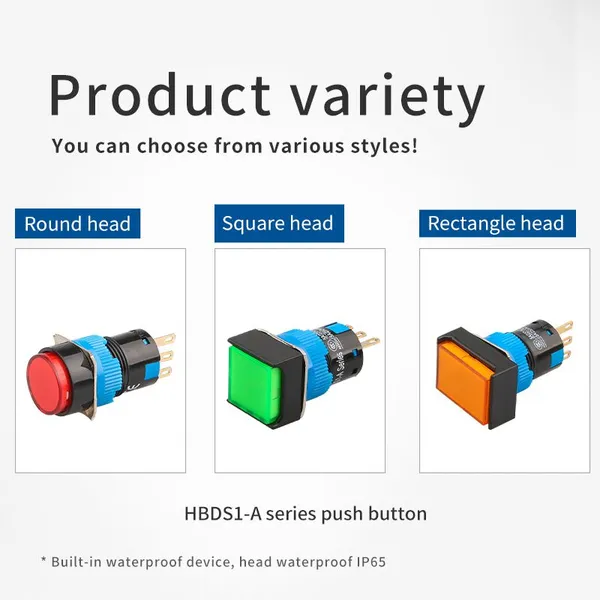

ip65 16mm rectangle head 24v SPDT push button switch on off momentary with led

Name: ip65 16mm rectangle head 24v SPDT push button switch on off momentary with led
Brand: CDOE
Price: USD $0.75 - 0.75 / Piece

FOB Price

USD $0.75 - $0.75 / Piece

40 Pieces(Min.Order)

Supply Ability 1000 Box / Boxes per Month
Port shanghai or ningbo port
Payment Terms:T/T Credit Card
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	CDOE	Place of Origin:	China	Model Number:	HBDS1-AJ-11D
Protection Level:	IP65	Max. Voltage:	250V	Max. Current:	5A

Product Description

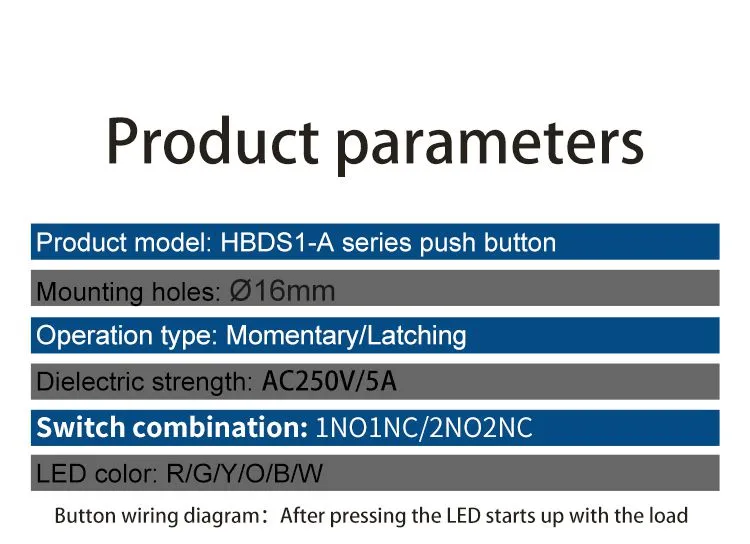

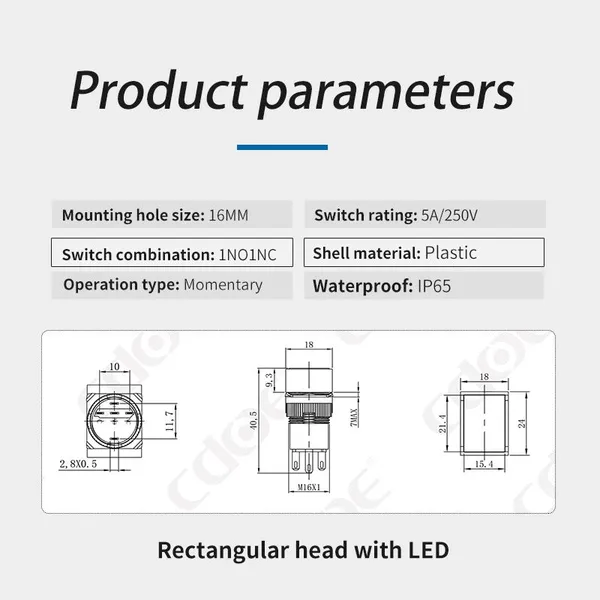

Product parameters:

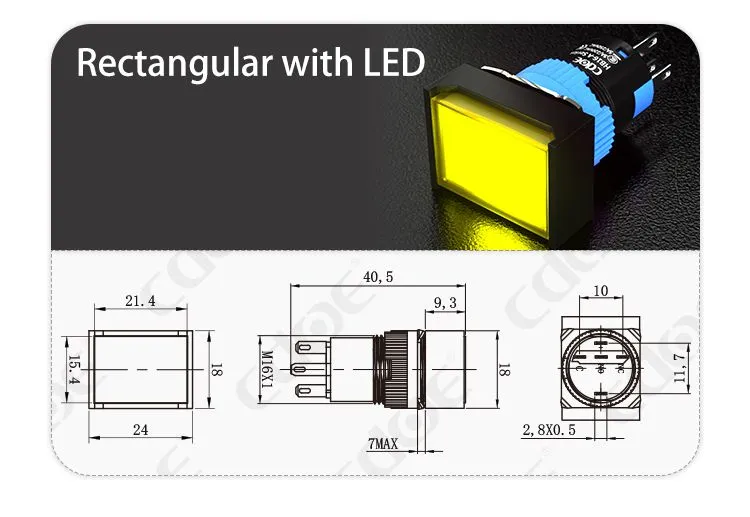

ip65 16mm rectangle head 24v SPDT push button switch on off momentary with led

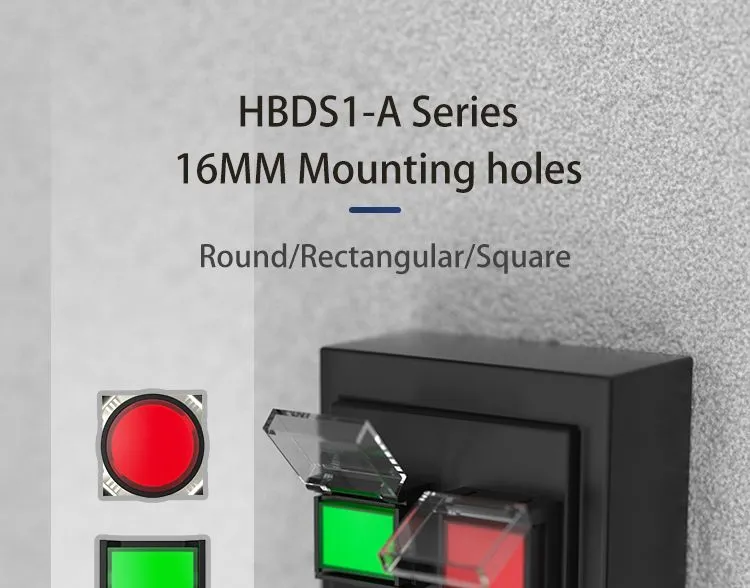

Mounting hole size :			16mm


Switch value:			5A/250V AC
Operation type:			Momentary
Contact configuration:			1NO1NC
Crust material:			Plastic
Terminal type:			Pin terminal
Protection grade :			IP65

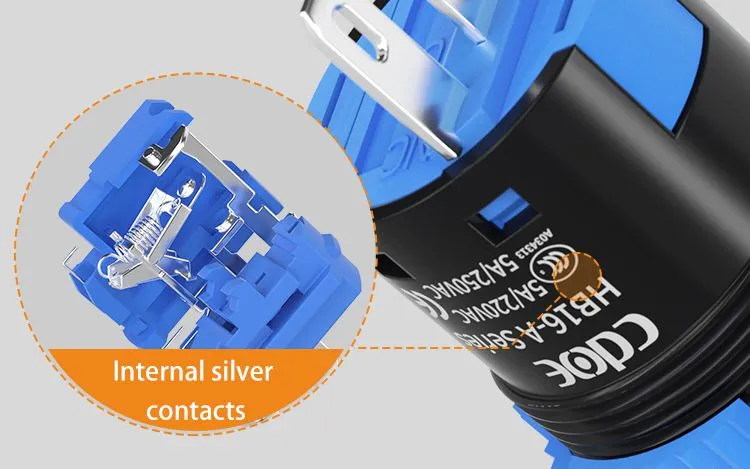

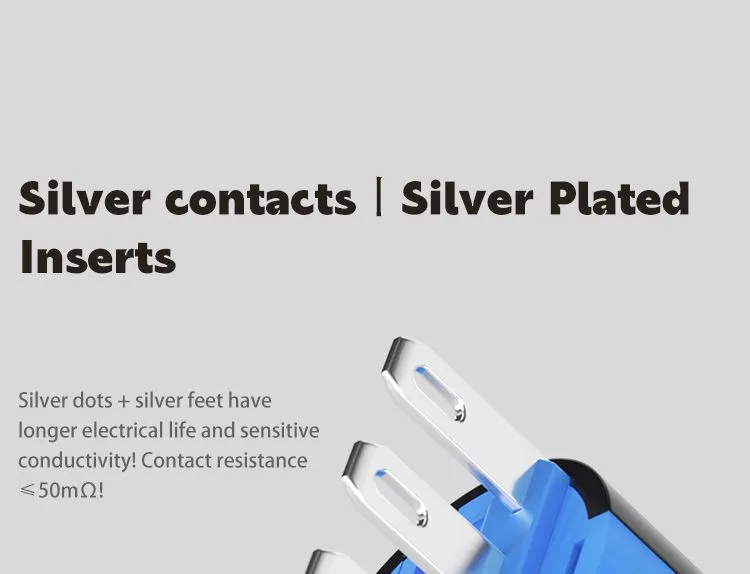

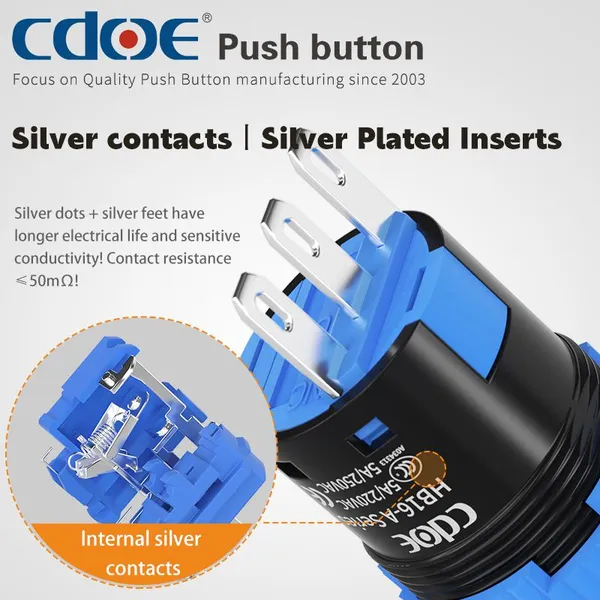

Contact material:			Silver alloy
Mechanical life:			≥1，000,000 times
Illumination type:			Dot illumination

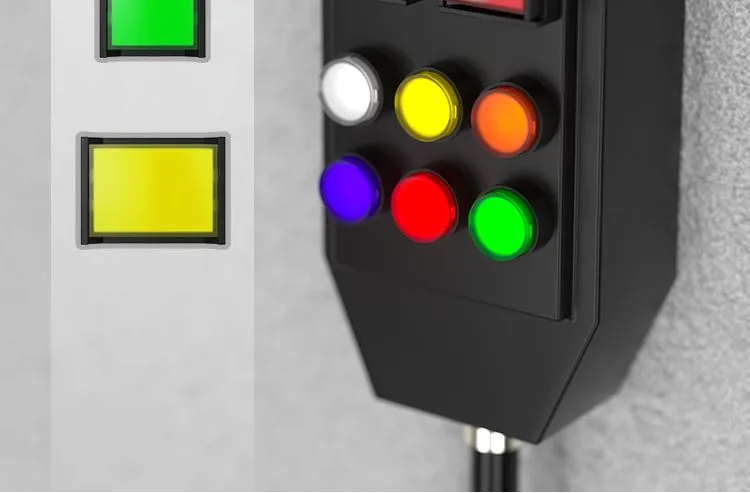

Led color:			Red,Green,Blue,Orange,White,Yellow
Led voltage:			2V(3V),5V(6V),12V,24V,36V,110V,220V
Led life:			50,000 hours

Product Description:

Company information:

 Why should you choose us?

* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.

* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.

* And the world's top 500 enterprises have cooperation.

* A number of technical patents: CCC, UL, Rohs, TUV, UL, etc.

* Main production buttons:：anti-vandal metal push button switches (which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches (which can be used in elevator),touch switch ,20a high current switch, signal lamp（indicator）, buzzers and push button accessories.

* Large quantity can enjoy a certain discount.

FAQ:

Q: Can you provide samples? Are the samples free?
"A: Yes, we can provide samples. We will collect samples fee (1-3 pcs) and you have to pay for the shipping cost. When you place an official order, we will refund the sample fee to you."

Q: What kind of payment do you accept? Can I pay via RMB?
"A: We accept T/T (Wire transfer), Western Union, PayPal and credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money in RMB. No problem."

Q : What about your delivery time?
"A: We have a lot of products in stock. We can send the inventory products in 3 working days. If we don't have them in stock, or our stock is not enough, we will check the delivery time for you."

Q : How to ship my order? Is it safe?
"A: For small packages, we will send them by Express, such as DHL, FedEx, UPS, TNT. That’s a Door to Door service. For big packages, we will send them by Air or by Sea. We will use good packaging and ensure the safety. We will be responsible to any product damage caused on delivery."

Q: Do you have a catalog? Can you send me the catalog to check all your products?
"A: Yes, we have a product catalog. Please contact us online or send an email so that we can offer you the catalog."

Q: Do you have a guarantee for your products' quality?
A: We have a guarantee for one year. Any requirements or questions, please send us an email now! It'll be our great honor to service you! We will reply you ASAP. If no response within 24 hours, please kindly check the spam in your mail box.

Thank you for your trust and support!

● Email: cdoe@cncdoe.com

● Whatsapp/Phone:0086-13968754347

● Address: Huxi no.2 road, Huxi village, Liushi Town, Yueqing City, 325604, Zhejiang Province, China
