ip65 16mm plastic flat head 12v 24v 1no1nc illuminated square push button reset

Name: ip65 16mm plastic flat head 12v 24v 1no1nc illuminated square push button reset
Brand: CDOE
Availability: InStock
Rating: 4.1 (43 reviews)

FOB Price

USD $0.75 - $0.75 / Piece

40 Pieces(Min.Order)

Supply Ability 1000 Box / Boxes per Month
Port shanghai or ningbo port
Payment Terms:T/T Credit Card
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	CDOE	Place of Origin:	China	Model Number:	HBDS1-AF-11D
Protection Level:	IP65	Max. Voltage:	250V	Max. Current:	5A

Product Description

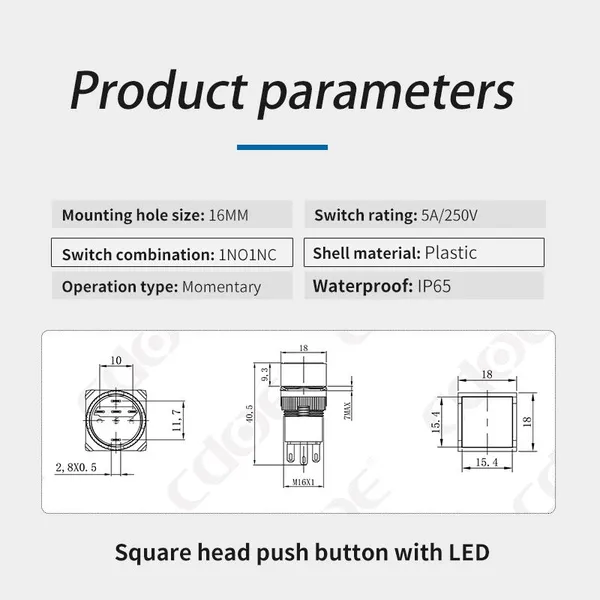

Product parameters:

ip65 16mm plastic flat head 12v 24v 1no1nc illuminated square push button reset
Mounting hole size :			16mm


Switch value:			5A/250V AC
Operation type:			Momentary
Contact configuration:			1NO1NC
Crust material:			Plastic
Terminal type:			Pin terminal
Protection grade :			IP65
Contact material:			Silver alloy
Mechanical life:			≥1，000,000 times
Illumination type:			Dot illumination
Led color:			Red,Green,Blue,Orange,White,Yellow
Led voltage:			2V(3V),5V(6V),12V,24V,36V,110V,220V
Led life:			50,000 hours
