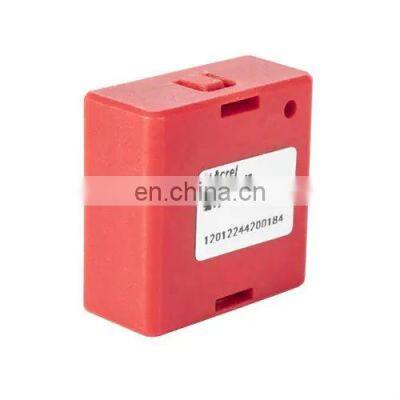

Acrel Industrial ATE Series Wireless Small Smart Watch Temperature Sensor Optional Battery and CT Sensing Power
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Movable Box Substation Temperature and Humidity Regulator Intelligent 2-way Temperature and Humidity ControlNegotiableMOQ: 1 -
Acrel Digital Multi-channels Temperature Humidity Controller and Measurement WHD46-33 With 3 SensorNegotiableMOQ: 1
-
Acrel Digital Multi-channels Temperature Humidity Controller and Measurement WHD46-33 With 3 SensorNegotiableMOQ: 1
-
Acrel Industry Intelligent Temperature and Humidity Controller WHD72-11NegotiableMOQ: 1
-
Smart One Channel T&H Sensor WHD72-11/M With 4-20mA Analog OutputNegotiableMOQ: 1
ATE Series wireless small smart watch with CT wireless temperature sensor
Products Description
● Range of Measurement: -50℃~+125℃
● Communication: GFSK Wireless Communication
● Application: Switchgear, Busbar, Bus duct, Electric contact, Cable joint, Rain main unit and etc
● Installation: Bolted, Magnetic, Belt, Alloy Sheet Fixed
● Protection Level: IP68 (Optional)
● Power Supply: Battery or CT Sensing Power
● Standard&Certificate: CE
Technical Parameter
Wireless temperature measurement |
Item |
Value |
Wireless frequency |
470MHz |
|
Communication distance |
150m in open area |
|
Sampling frequency |
ATE100, ATE100M, ATE200, ATE100P, ATE200P:25s ATE400:15s |
|
Transmission frequency |
ATE100, ATE100M, ATE200, ATE100P, ATE200P:5min ATE400：15s |
|
Power source |
CT-powered, starting current>5A |
|
Installation |
Alloy chip fixing |
|
Range of temperature |
-50AC~125°C |
|
Precision |
ATE100, ATE100M, ATE200, ATE400: 士 TC ATE100P,ATE200P: 土0.5°C |
|
Application |
Joints in high or low voltage switchgears |
|
Service life |
^5 years |
|
Environmental requirement |
Operating temperature |
-50"C~125"C |
Relative humidity |
W95% |
|
Atmospheric pressure |
86kPa~106kPa |
Details
Dimension & Installation
Certification
Customized service
If you have any special requirements, for example another bandwidth and communication solution or special power supply and size ,please feel free to Contact Us.
