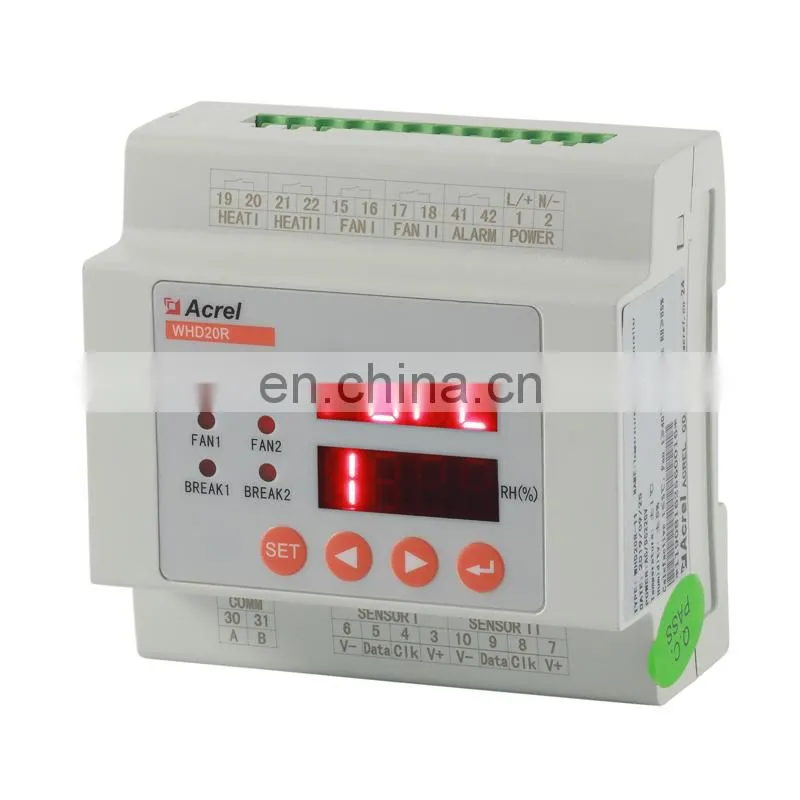

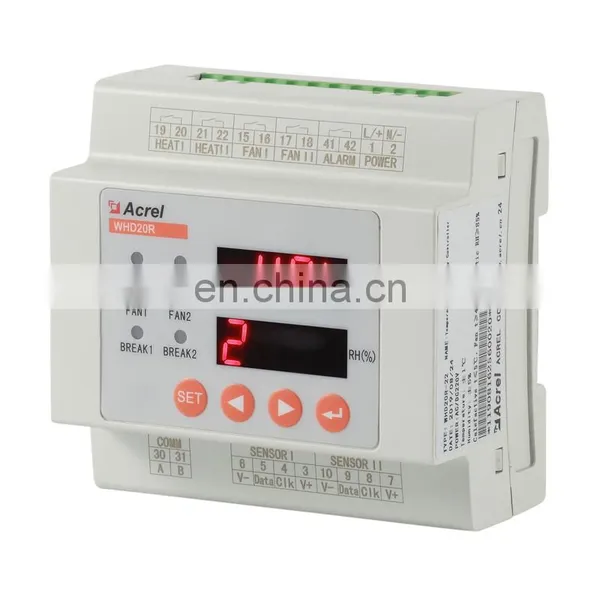

DIN Rail Digital Temperature Humidity Control Meter WHD20R-22 Measuring 2 Channel Temperature & Humidity
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Temperature Humidity Control and Measuring Meters With RS485 WHD20R-11/CNegotiableMOQ: 1 -
DIN Rail Digital Temperature Controller Meter WHD20R-22/C Measuring 2 Channel Temperature & Humidity RS485 Modbus CommunicationNegotiableMOQ: 1
-
Multi-circuit Temperature & Humidity Controller WHD46-33 Measure Three Channel Temperature and Humidity With SensorsNegotiableMOQ: 1
-
ARTM-8 Pt100 Input Multi Channels Temperature Controller With Alarm OutputNegotiableMOQ: 1
-
Wholesale Acrel Thermometer Temperature Device -50C To 600C With Relay Alarm Output Industry Infrared ThermometerNegotiableMOQ: 1
WHD20R-11/C
|
Temperature & Humidity Controller |
||
|
* Temperature and humidity measuring & controlling * DIN 35mm * LED display * With 1 Temperature and humidity sensor * RS485 (Modbus-RTU) Communication
|
||
INFORMATION
| Characteristic |

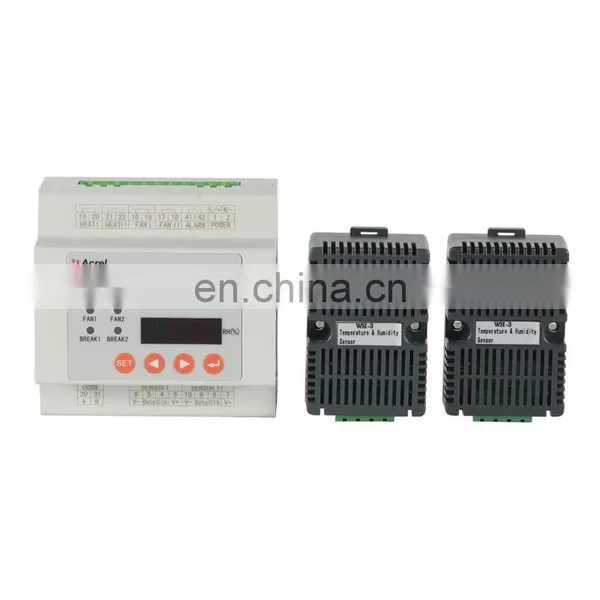

| Measurement: Two channel temperature & humidity (with sensor) |
| Measuring temperature range: -40~+99℃ |
| Measuring temperature range: 20%RH~90%RH |
| Display: LED display |
| Option function/C: RS485(Modbus-RTU) |
| Option function/J: 1 channel alarm output |
| Option function/M: 2 analog output(programmable 4-20mA) |
| LED diaplay |
| Function |
|
Accuracy Temperature ±1℃ Humidity ±5%RH
Power supply AC 85-265V,DC 100-350V
Input Consumption Auxiliary power supply: Basic power consumption(≤0.8w) Relay power consumption(each channel≤0.7w) |
|
|
|

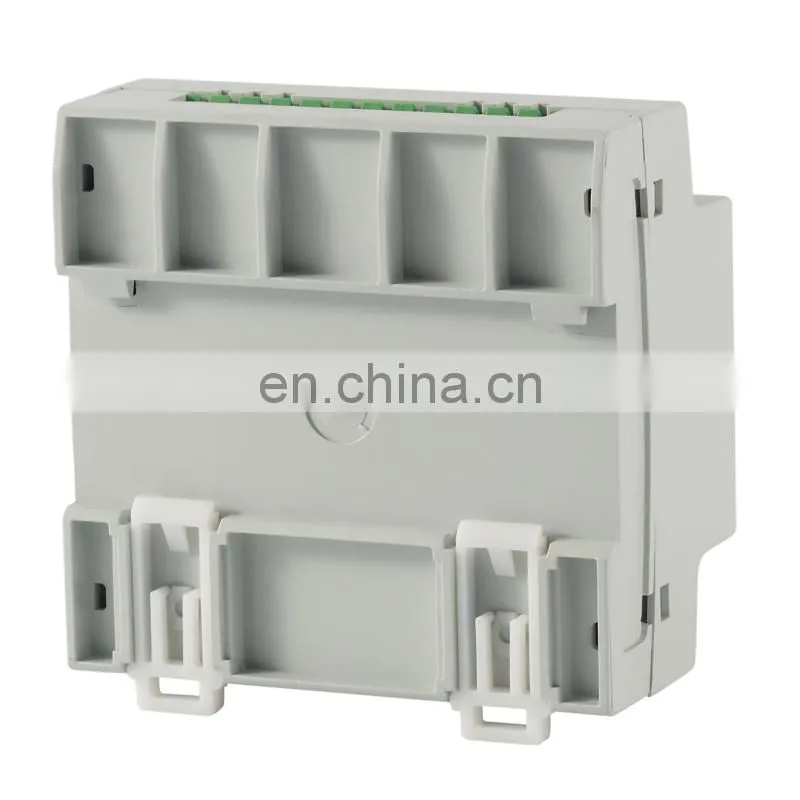

Installation:
DIN 35mm
Dimension(L*W*H):
88*90*52mm
|

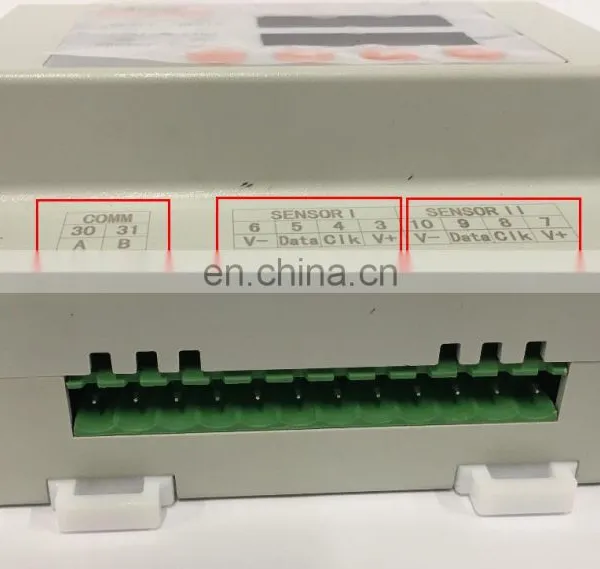

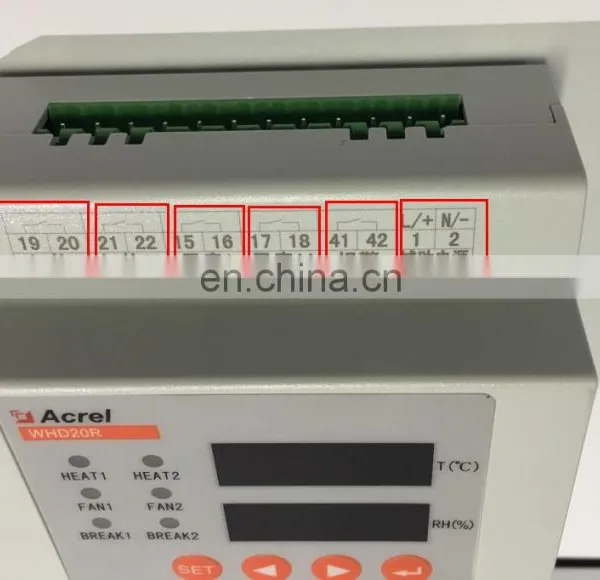

| Typical connection |
PARAMETER
