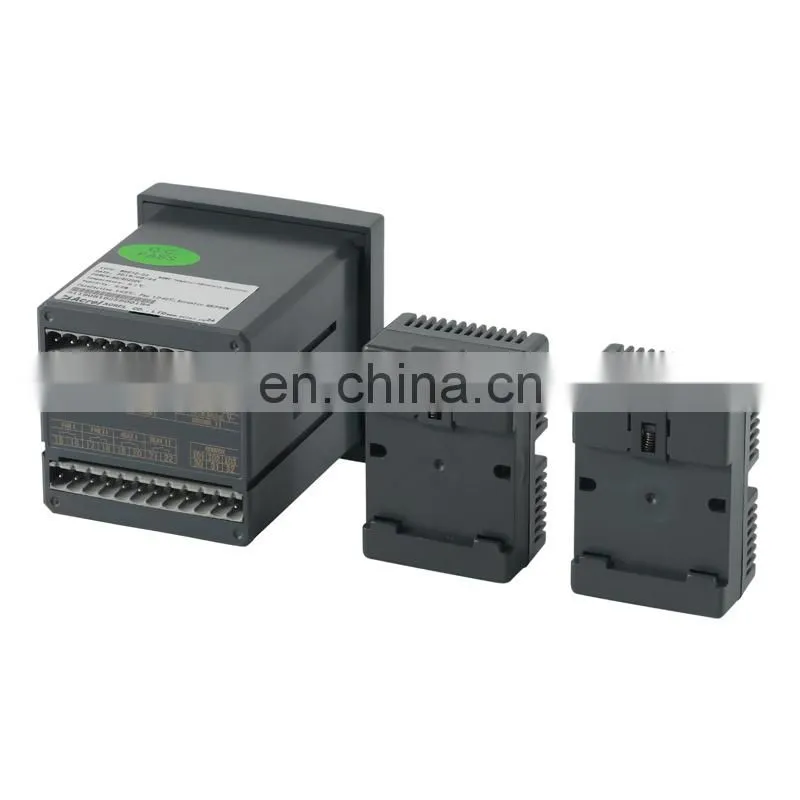

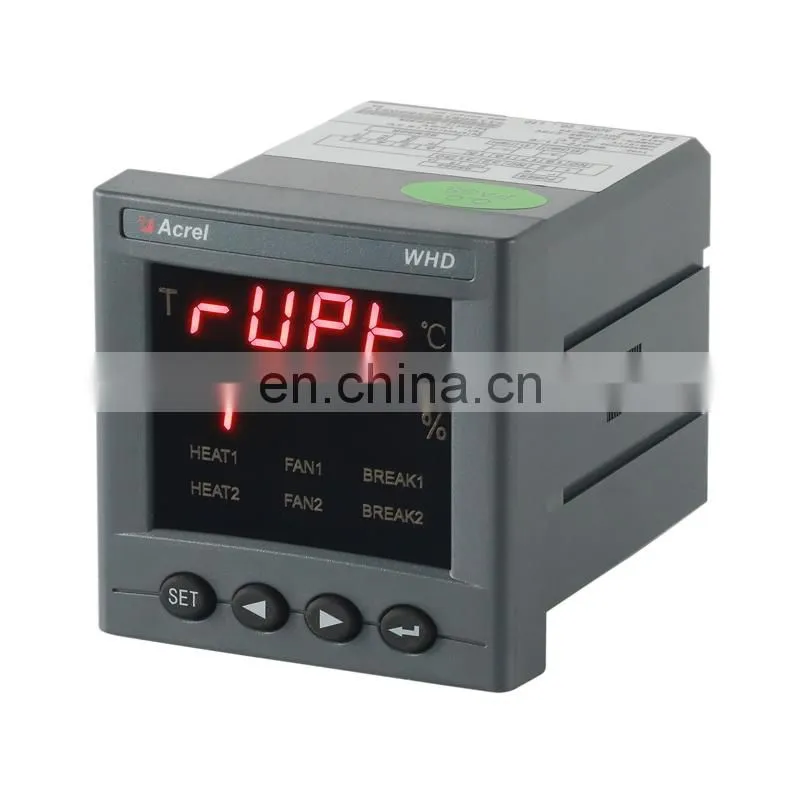

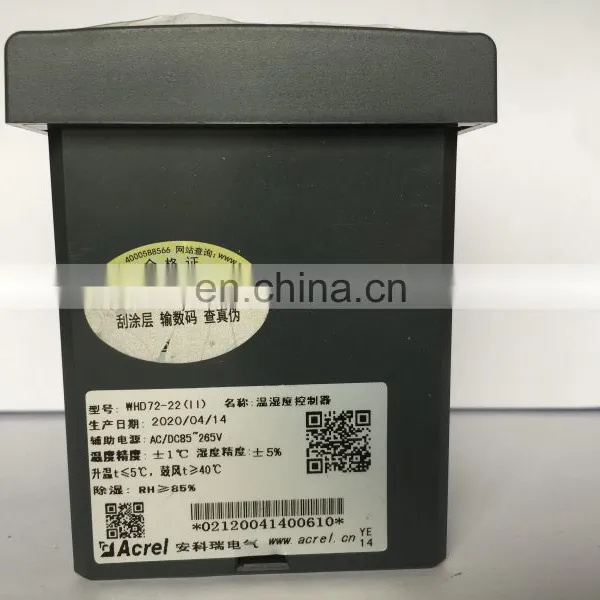

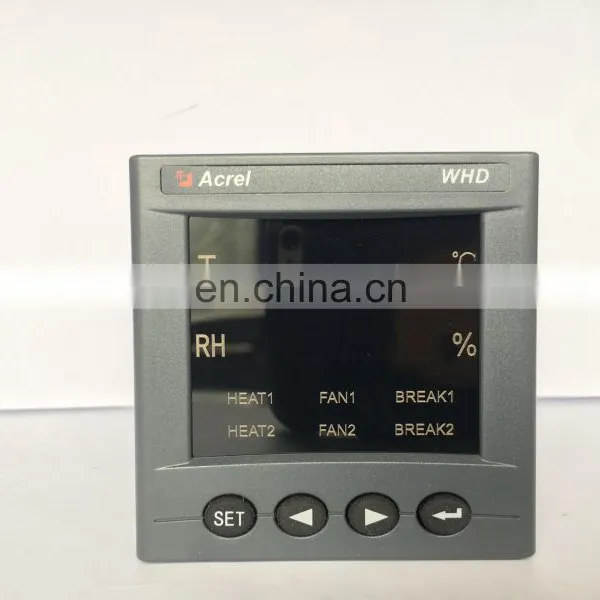

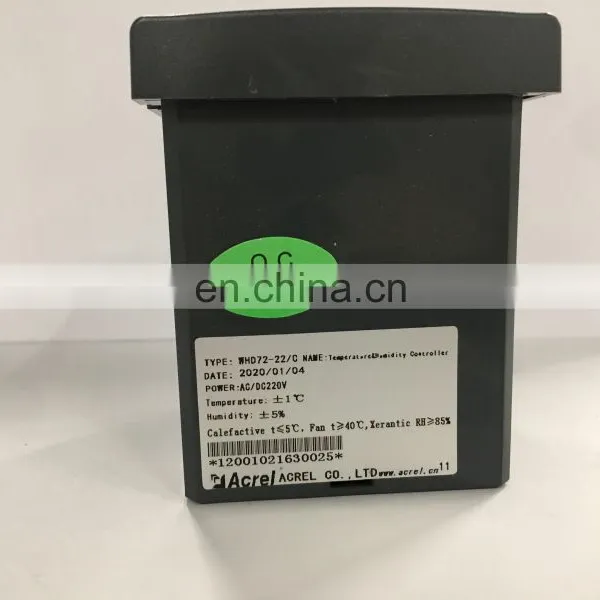

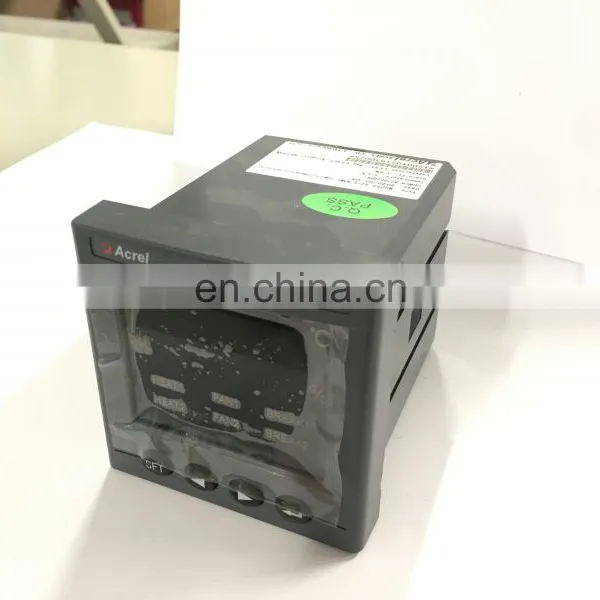

Digital Thermostat Controller 2 Channel Temperature and Humidity Controller WHD72-22/J With Alarm Output
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Thermostat Panel Temperature Controller WHD72-11 With SensorNegotiableMOQ: 1 -
Digital Din Rail Temperature Meter WHD20R-11 Intelligent Digital PID Temperature Humidity Controller Optional RS485NegotiableMOQ: 1
-
Digital Din Rail Temperature Meter WHD20R-11 Intelligent Digital PID Temperature Humidity Controller Optional RS485NegotiableMOQ: 1
-
DIN Rail Digital Temperature Humidity Control Meter WHD20R-22 Measuring 2 Channel Temperature & HumidityNegotiableMOQ: 1
-
Digital Temperature Humidity Control and Measuring Meters With RS485 WHD20R-11/CNegotiableMOQ: 1
WHD72-22/J
|
Temperature & Humidity Controller |
||
|
* Temperature and humidity measuring & controlling * Panel mounted * LED display * With 2 Temperature and humidity sensor *Alarm output
|
||
INFORMATION
| Characteristic |
| Measurement: Two channel temperature & humidity (with sensor) |
| Measuring temperature range: -40~+99℃ |
| Measuring temperature range: 20%RH~90%RH |
| Display: LED display |
| Function: 1 channel alarm output |
| Communication/C: RS485(Modbus-RTU) |
|
Option function/M: 2 analog output(programmable 4-20mA) |
| LED diaplay |
| Function |
|
Accuracy Temperature ±1℃ Humidity ±5%RH
Power supply AC 85-265V,DC 100-350V
Input Consumption Auxiliary power supply: Basic power consumption(≤0.8w) Relay power consumption(each channel≤0.7w) |
|
|
|
Installation:
Panel mounted
Dimension(L*W*H):
Faceplate(L×W):75*75mm
Cutout(L×W):67*67mm Housing(L×W×H):66*66*92mm |
| Typical connection |
