Heating and Dehumidification Intelligent Temperature and Humidity Controller Manufacturer Acrel WHD46-22 LED Digital Display
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel WHD72-22 Intelligent Temperature and Humidity Controller/Condensation Controller Medium and High Voltage SwitchgearNegotiableMOQ: 1 -
Temperature Measuring Device PT100 Wireless Temperature Sensor and ARTM Temperature and Humidity ControllerNegotiableMOQ: 1
-
Acrel ATE400 Tied Type Passive Small Wireless Temperature Sensor Esay OperatingNegotiableMOQ: 1
-
Acrel Industrial ATE Series Wireless Small Smart Watch Temperature Sensor Optional Battery and CT Sensing PowerNegotiableMOQ: 1
-
Movable Box Substation Temperature and Humidity Regulator Intelligent 2-way Temperature and Humidity ControlNegotiableMOQ: 1
Temperature&Humidity Controller
Product Description
The controller for temperature and humidity is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creepage or
flashover etc.from humidity or condensation.
These products meet the requirements of GB/T 15309-1994.
flashover etc.from humidity or condensation.
These products meet the requirements of GB/T 15309-1994.
Details
Type |
Function |
Sensor (Pcs) |
Mounting mode |
WHD46-22/J |
Two channels temperature, humidity control |
WH-3(2) |
Embedded Catout:116x56 |

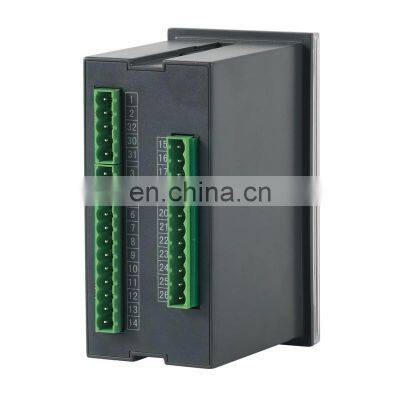

3-4-5-6 port:
the first sensor (connect with temperature&humidity sensor. 3 connect to V+ ;4 connect to Clk;5 connect to Data;6 connect to V-)
7-8-9-10 port:
the second sensor (connect with temperature&humidity sensor. 7 connect to V+ ;8 connect to Clk;9 connect to Data;10 connect to V-)
1-2 port：power supply ( AC/DC85-265v)
15-16 port: the first Heating control(passive contact,connect with Heat equipment)
15-16 port: the first Heating control(passive contact,connect with Heat equipment)
17-18 port: the second Heating control(passive contact,connect with Heat equipment)Fan control(passive contact,connect with Fan)
21-22 port:the first Fan control(passive contact,connect with Fan)
23-24 port:the second Fan control(passive contact,connect with Fan)
Dimension
