Products Description

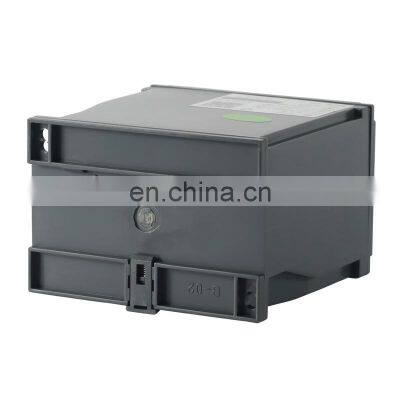

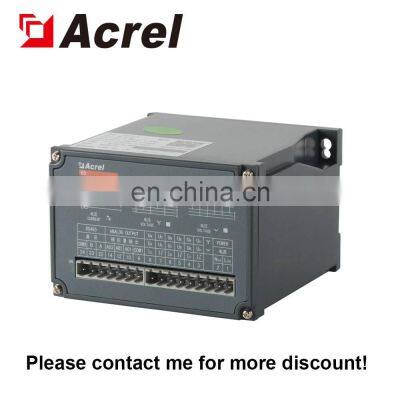

AC Current Transducer BD-3I3 (3-phase 3-wire)

frequency, power, power factor, into linear DC analog signal or digital signal. It meet the requirements of National standard GB/T13850-1998, IEC-688.

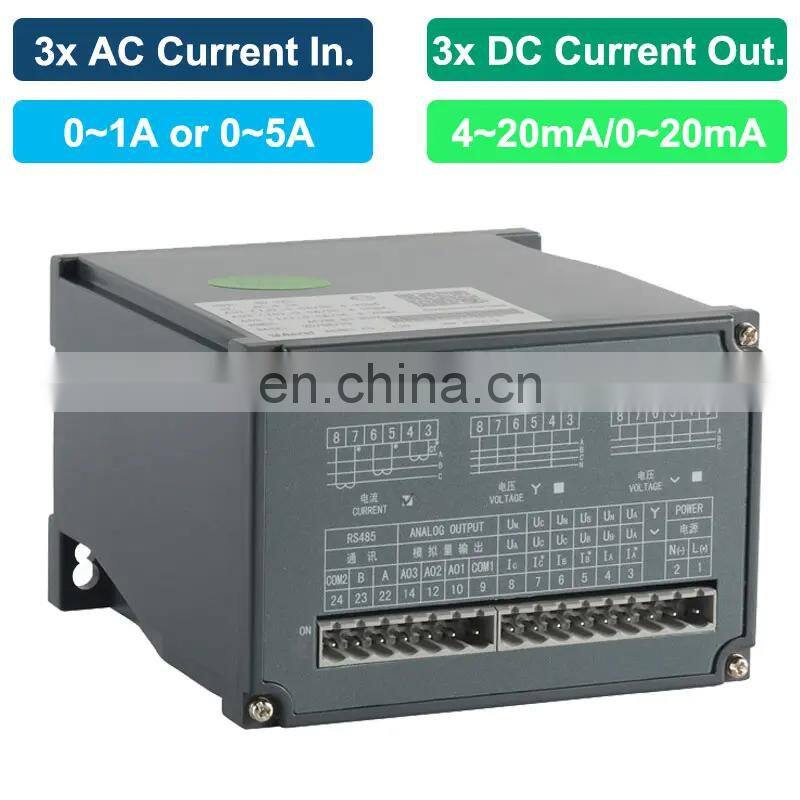

● Measurement: 3-phase AC Current ● Accuracy: Class 0.5 ● Input: 0~1A/0~5A AC ● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC ● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V/48V DC ● Wiring: 3-phase 3-wire ● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering ● Response Time: ≤400ms ● Installation: 35mm DIN Rail/Screw fixed ● Standard&Certificate: CE
● RS485-MODBUS(Optional)
BD Series Overview
Technical Parameter
Differential Technical Specification
Model Name
Measurement
Input
Output
Power Supply
BA-AI
1-phase
AC Current
0~1A AC/0~5A AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
1-phase 2-wire
BA-3I3
3-phase
AC Current
0~1A AC/0~5A AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
3-phase 3-wire
BA-AV
1-phase
AC Voltage
0~120/300/500V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
1-phase 2-wire
BA-3V3
3-phase
AC Voltage
0~120/300/500V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
3-phase 3-wire
BA-4V3
3-phase
AC Voltage
0~120/300/500V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
3-phase 4-wire
BD-DI
1-phase
DC Current
4~20mA DC/0~20mA DC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
1-phase 2-wire
BD-DV
1-phase
DC Voltage
0~75mV DC/0~10V DC
/0~300V DC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
1-phase 2-wire
BD-3P
3-phase
Active Power
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 3-wire
BD-4P
3-phase
Active Power
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 4-wire
BD-3Q
3-phase
Reactive Power
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 3-wire
BD-4Q
3-phase
Reactive Power
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 4-wire
BD-3/P/Q/I
3-phase
Active&Reactive
Power
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 3-wire
BD-4/P/Q/I
3-phase
Active&Reactive
Power
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 4-wire
BD-PF
3-phase
Power-Factor
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 4-wire
BD-F
3-phase
Frequency
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 4-wire
BD-3E
3-phase
Multi-Parameters
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 3-wire
BD-4E
3-phase
Multi-Parameters
0~1A AC/0~5A AC
and
0~100/220/380V AC
4~20mA DC/0~20mA DC
0~5V DC/0~10V DC
RS485 (MODBUS-RTU)
3-phase 4-wire

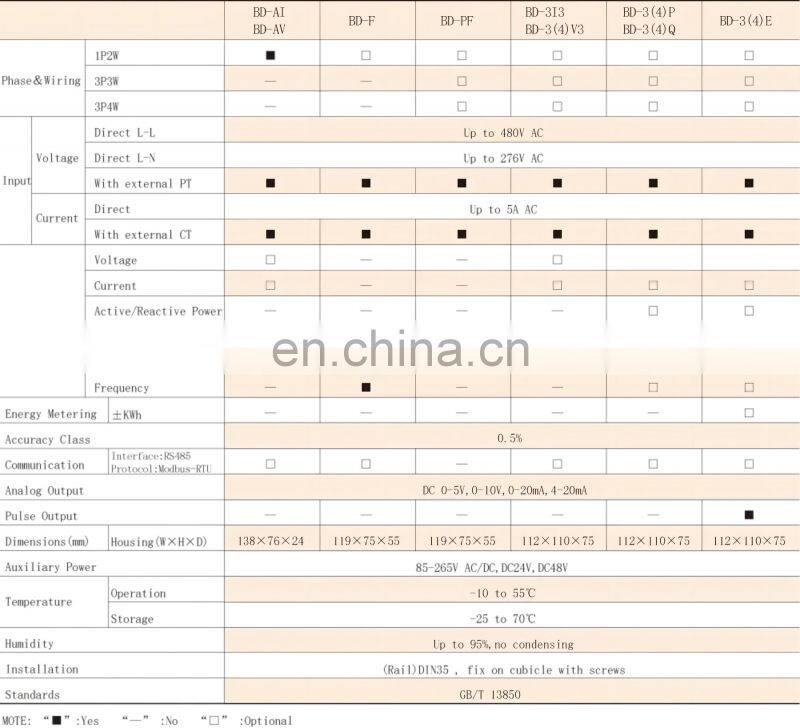

General Technical Specification
Item
Description
Auxiliary Power Supply
85V~265V AC or 100V~350V DC or 24V/48V DC (for certain models)
Accuracy Class
0.5%
Load Resistance (Output)
Current Output: ≤600Ω; Voltage Output: ≤1000Ω
Response Time
≤400ms
Temperature
Operation Temp.: -10℃~+55℃; Storage Temp.: -25℃~+70℃
Temperature Coefiicient
≤200ppm/℃
Humidity
≤90%
Altitude
≤2500m
Installation
35mm DIN Rail or Screw fixed
Standard
CE

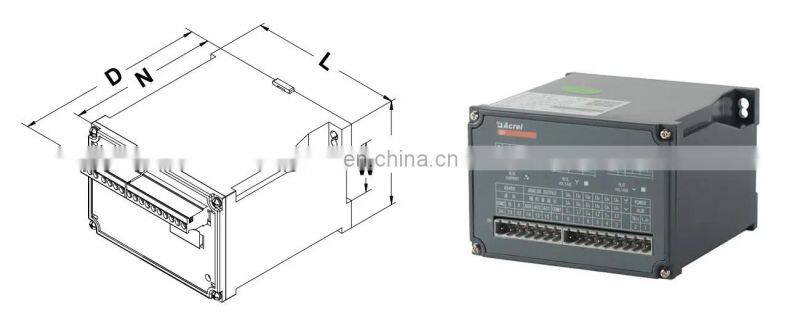

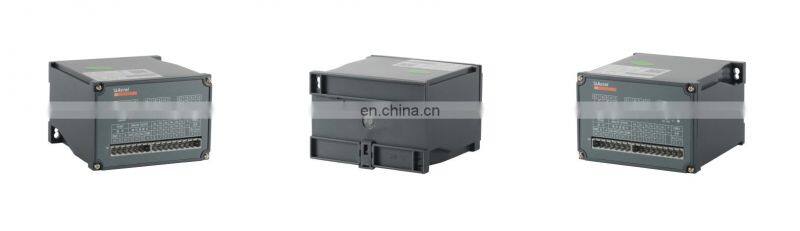

Dimension & Installation
Model Name
Outline Size (mm)
L
H
D
W
M
BD-AI
138
76
24
35
120
BD-AV
138
76
24
35
120
BD-DI
138
76
24
35
120
BD-DV
138
76
24
35
120
Model Name
Outline Size (mm)
L
H
D
W
N
BD-3I3
110
75.4
128
35
111.7
BD-3V3
110
75.4
128
35
111.7
BD-4V3
110
75.4
128
35
111.7

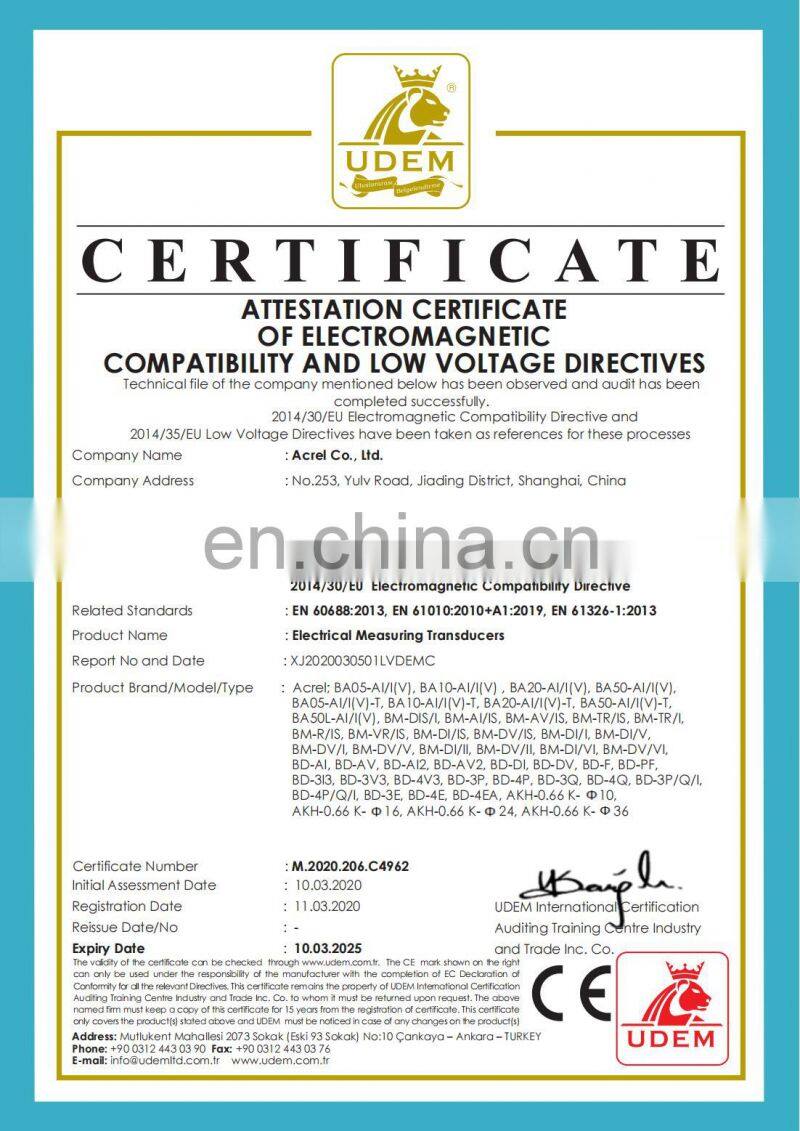

Certification
