Acrel BA20-AI/I AC Current Sensor Directly Access Current Transformer Input 0 200A OUTPUT 4 20mA
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel BA10-AI/I Electrical Transducer Input 0-50A Output 4 20mA Current SensorNegotiableMOQ: 1 -
AC Current Sensor Directly Access Current Transformer Input 0 10A OUTPUT 4 20mA BA05-AI/INegotiableMOQ: 1
-
DC Current Sensor DC4 20mA to 4 20ma OR 0-5V Transmitter Electrical TransducerNegotiableMOQ: 1
-
Voltage Sensor AC 0 100V 0-300V to 4 20ma Transmitter Electrical TransducerNegotiableMOQ: 1
-
ac Watt Transducer AC Current Sensor Transformer Frequency TransducerNegotiableMOQ: 1
Products Description

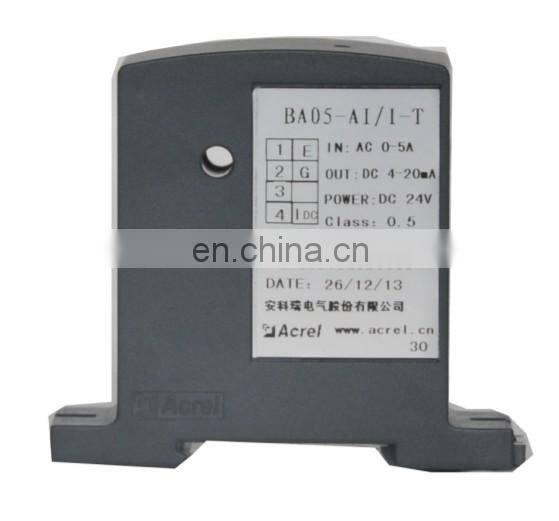

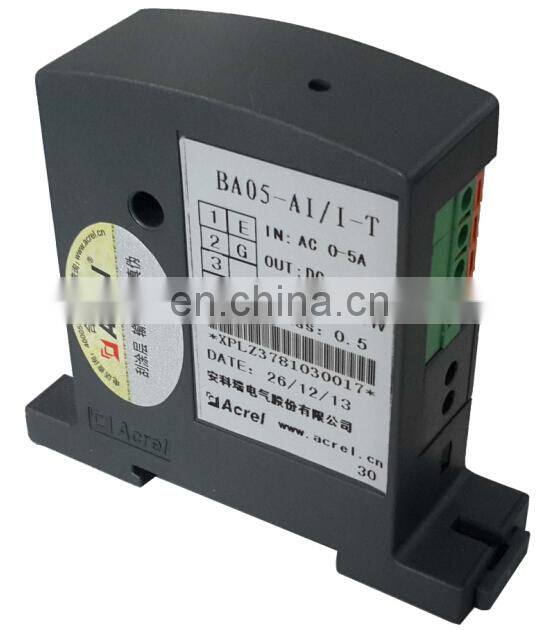

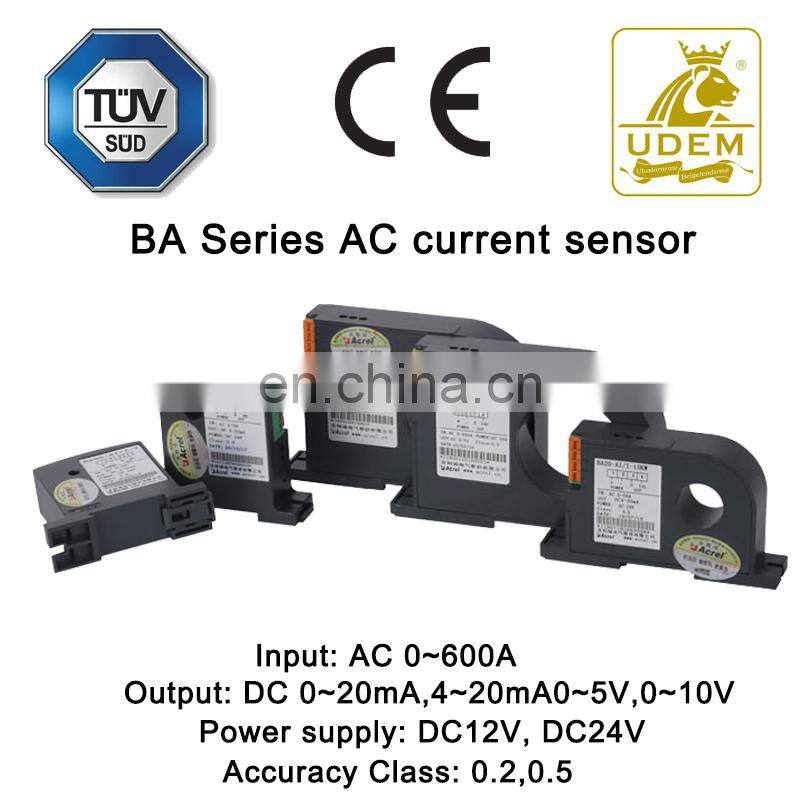

BA05-AI/I ----------BA Series AC Current Sensor
BA05-AI/I, AC current input, DC current output
BA series CTs can measure the AC from power grid in real time by using electromagnetic induction principle (Lenz's Law). Meanwhile,with constant current and linear temperature compensation technique, can BA current sensors
transfer AC input into standard DC signal output isolatedly. Also,since the products are powered by safe DC 24V or DC 12V power supply, BA CTs have features of such as high overload sustainability, safe using protection, low power consumption and etc. Thus they can be widely used in the industrial field like industry automation

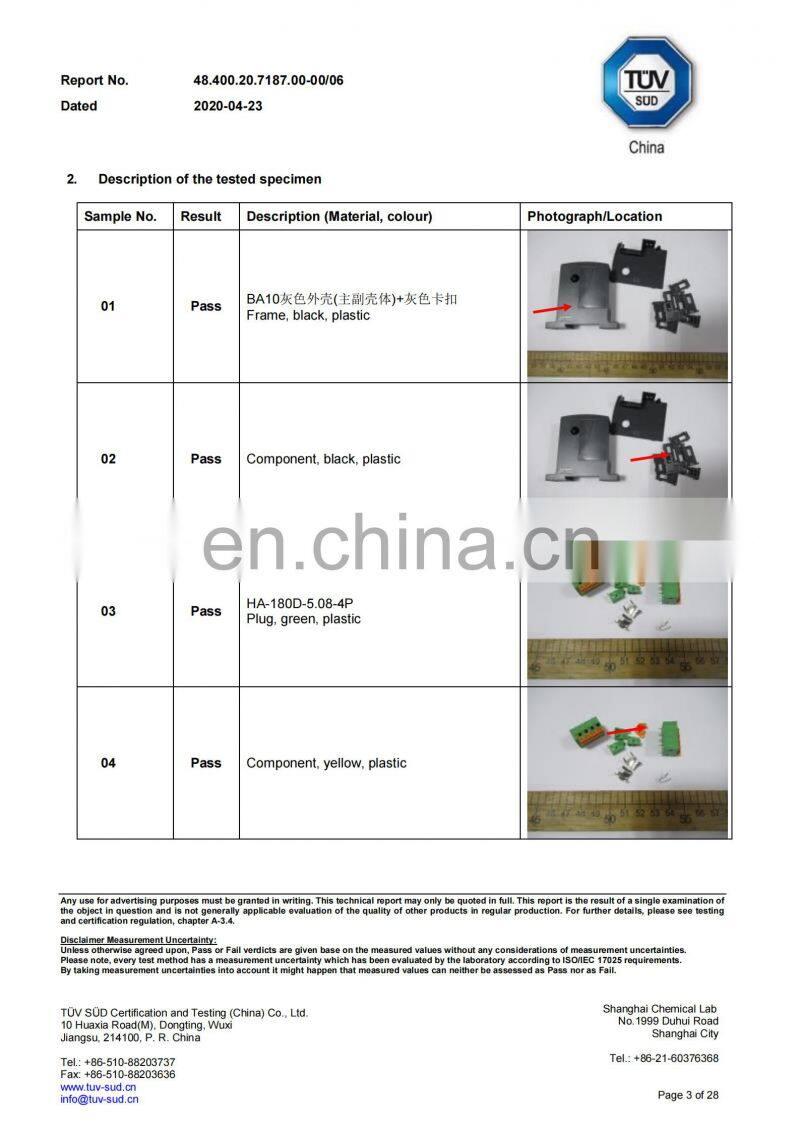

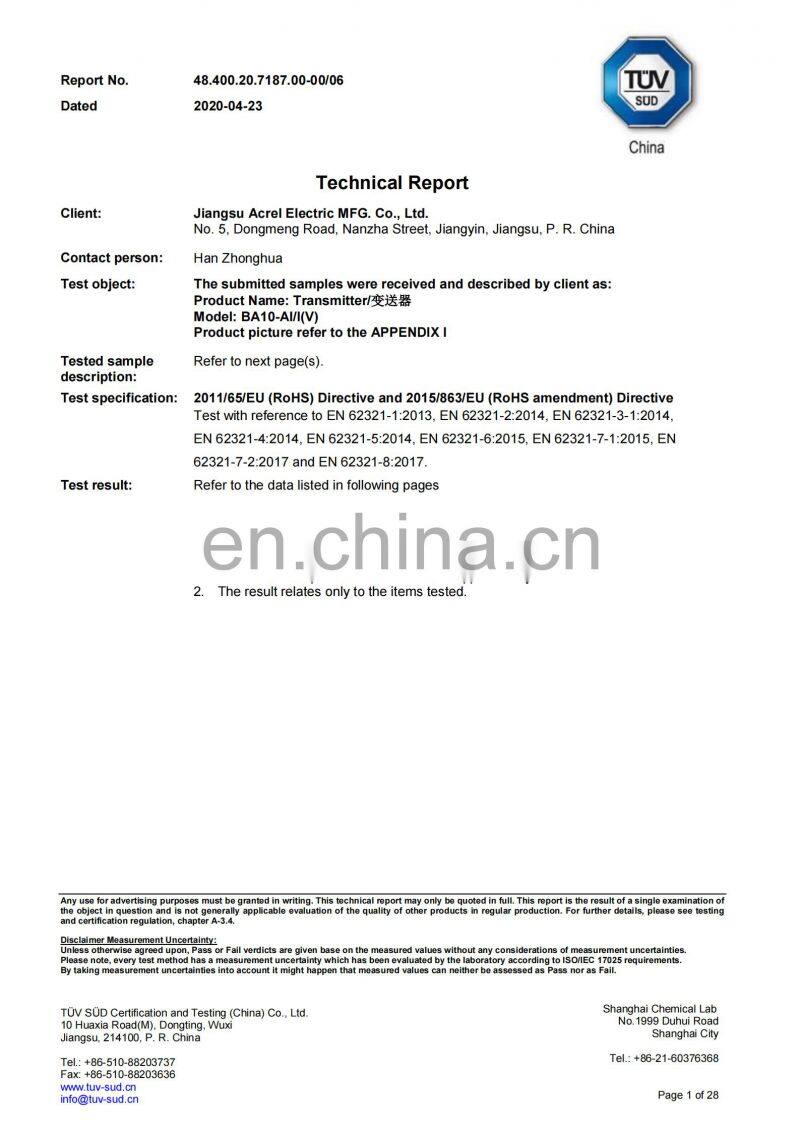

Also, as the prove for quality, BA series AC current sensor is strictly compliant of the standard of CE (EN 60688:2013, EN 61010:2010+A1:2019, EN 61326-1:2013);TUV(EN 62321-1:2013, EN 62321-2:2014 and etc). Certificates are shown below

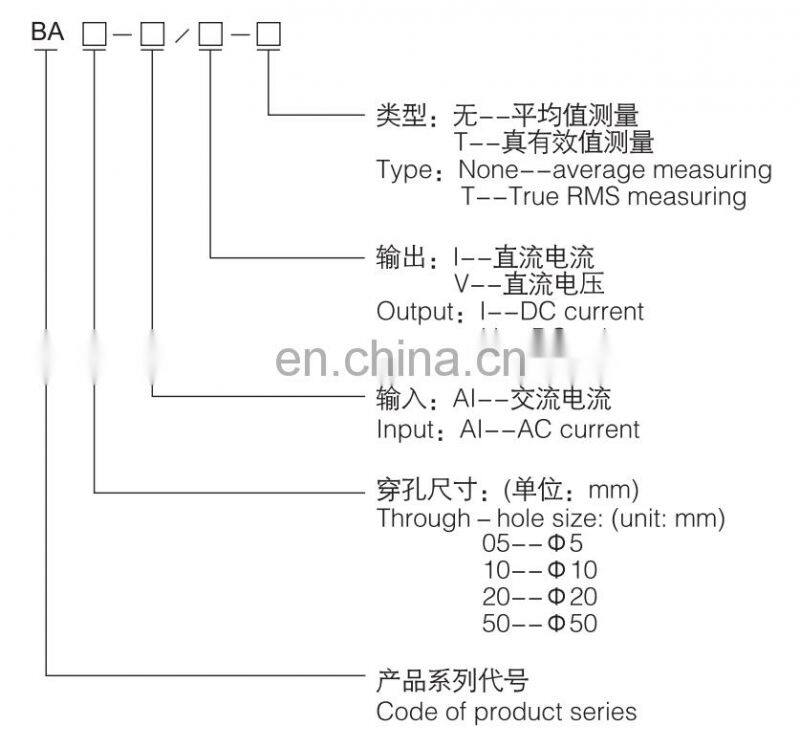

Explanation of Model Name
Function & Parameter
General Specification
Item | Description | ||||||
Power Supply | Voltage | DC 24V or DC 12V | |||||
Consumption | ≤ 1W | ||||||
Insulation Resitance | ＞100 MΩ | ||||||
Withstand Strength | Between input/output, power supply 2.0 kV/1min, 50Hz | ||||||
Temperature Coefficient | ≤200 PPM/℃，under -10℃~+55℃ | ||||||
Environment | Temperature | Working: -10℃~+55℃, Storage: -25℃~+70℃。 | |||||
Humidity | ≤95% RH, No condensation, without corrosive gas | ||||||
Altitude | TS35 guide rail or fiexed on cabinet with screws | ||||||
Technical Parameters
Paramters | Value&Description | ||||||
Accuracy Class | class 0.5, class 0.2 | ||||||
Input | Nominal Value | AC 0~10 A | |||||
Overload | continuous overload 1.2×Ib (1.2 times of nominal value); instant overload 10×Ib/1s (10 times of nominal value for 1 second) | ||||||
Absorbed Power | ≤1 VA | ||||||
Frequency response | 25Hz~800Hz (average); 25Hz~5000 Hz(true RMS), specialized for power frequency scenario | ||||||
Output | Nominal Value | DC 4~20mA, DC 0~20mA etc. | |||||
Load Resistance | ≤500 Ω with current output; ≤1000 Ω with voltage output | ||||||
Response Time | ≤ 350 ms (average); ≤100 ms (true RMS) | ||||||
Dimension & Installation

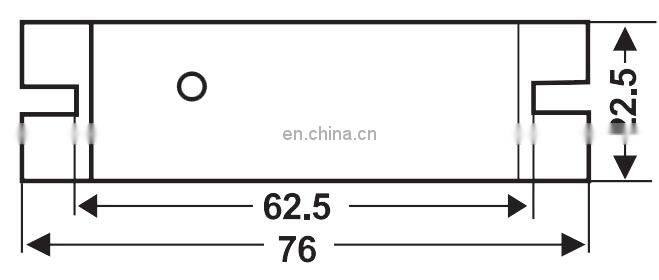

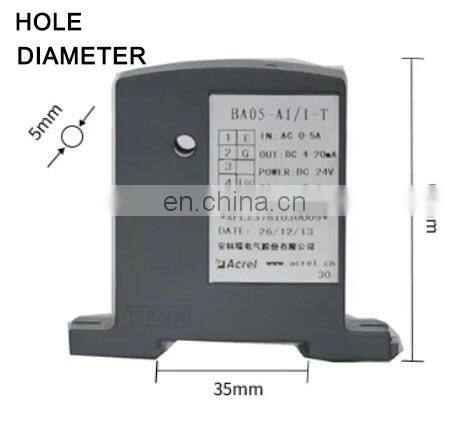

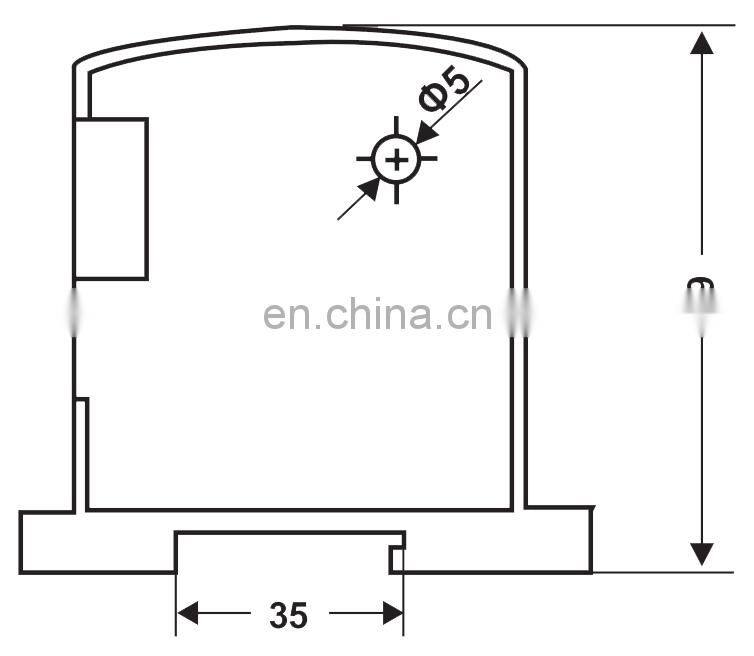

Dimension Overview

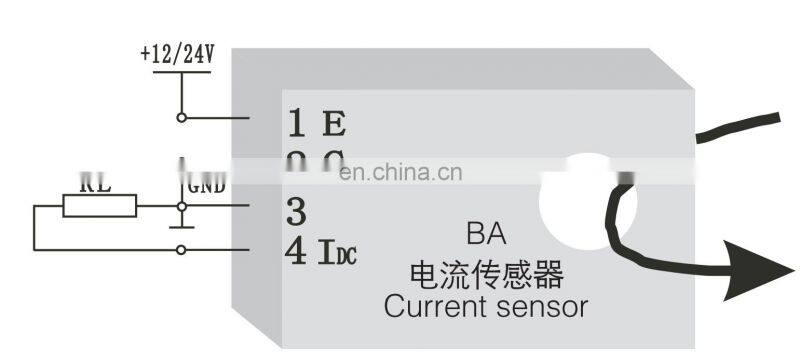

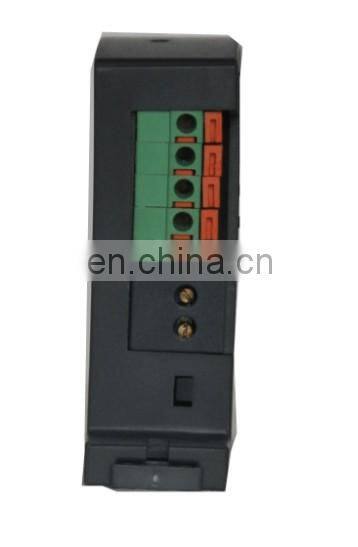

Wiring Illustration
Wiring instruction for BA with current output
1--E: stand for power supply anode (+)
2--G: stand for power ground
3--Output ground(can share groud with power supply, suitable for long rage transmission)
4--IDC: stand for DC current output anode(+)

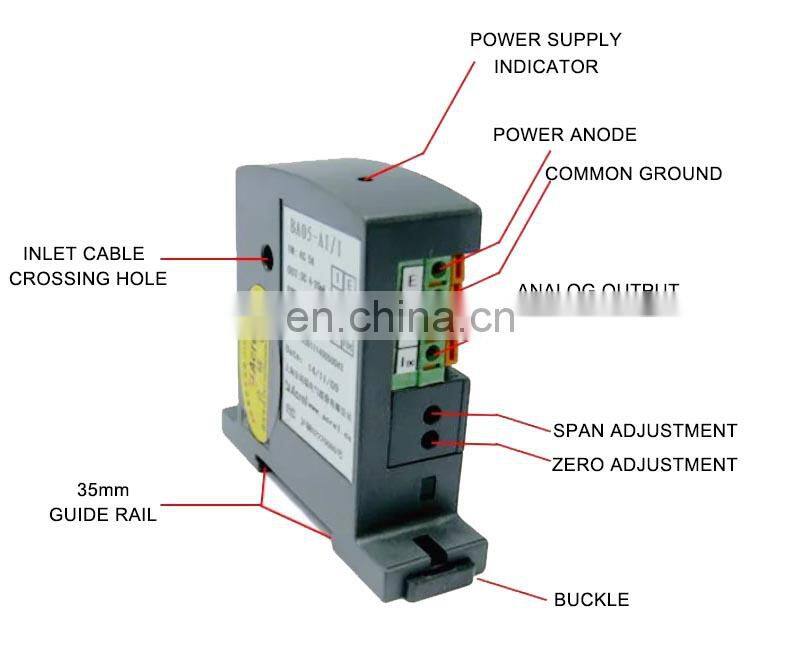

Installation Instruction

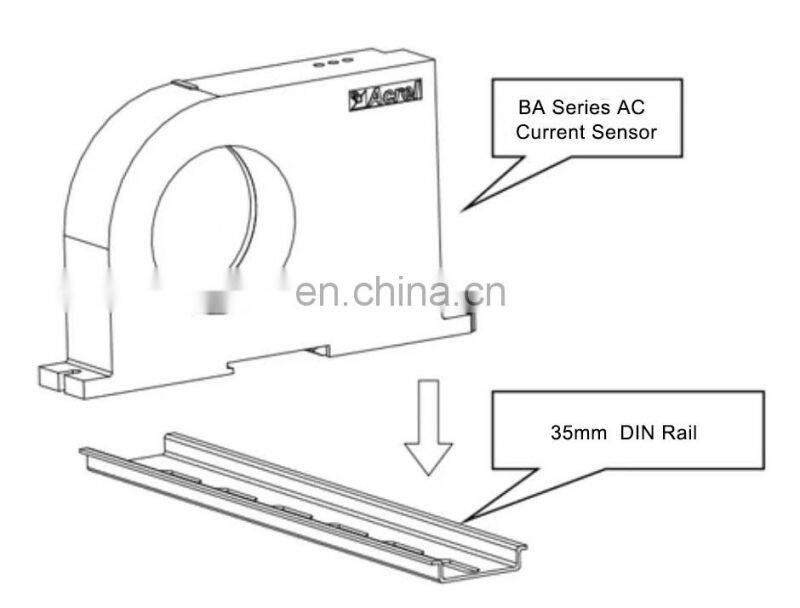

① 35mm DIN rail installation

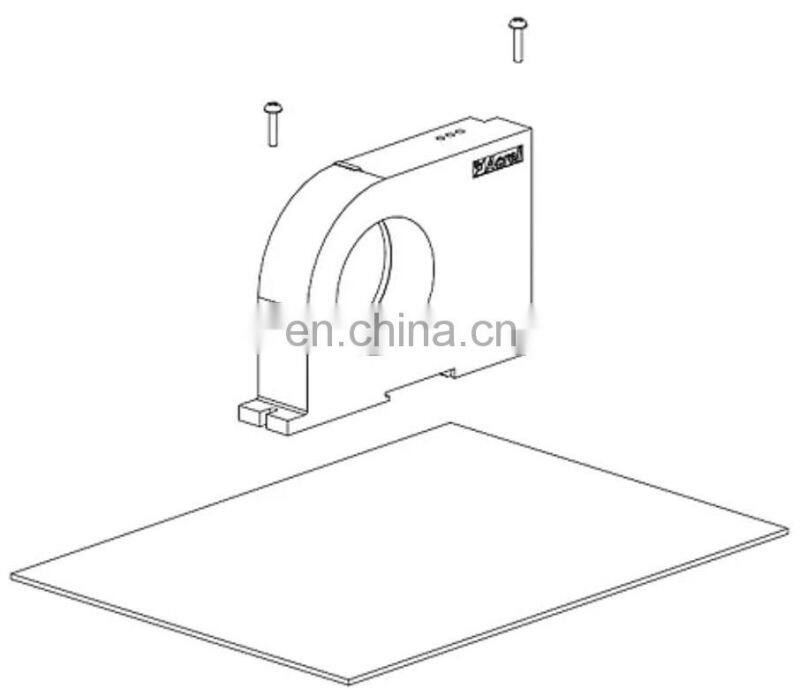

② Fixed by screw
Solutions & Applications
Application Scenario
Petrochemical
Siderurgy
Rail Transportation
Exhibition
company introduction
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid..
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
