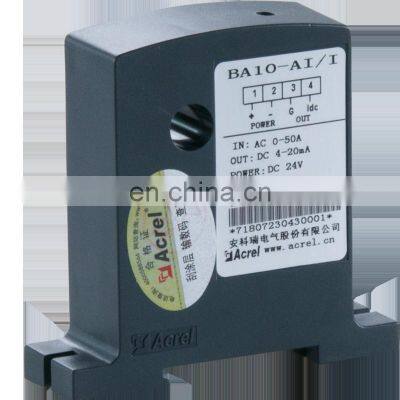

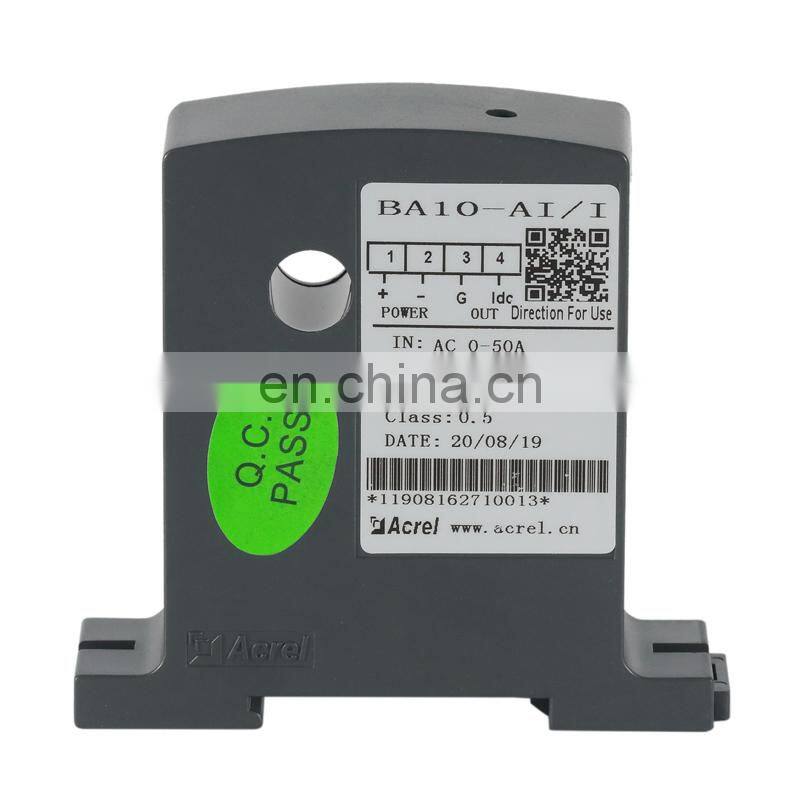

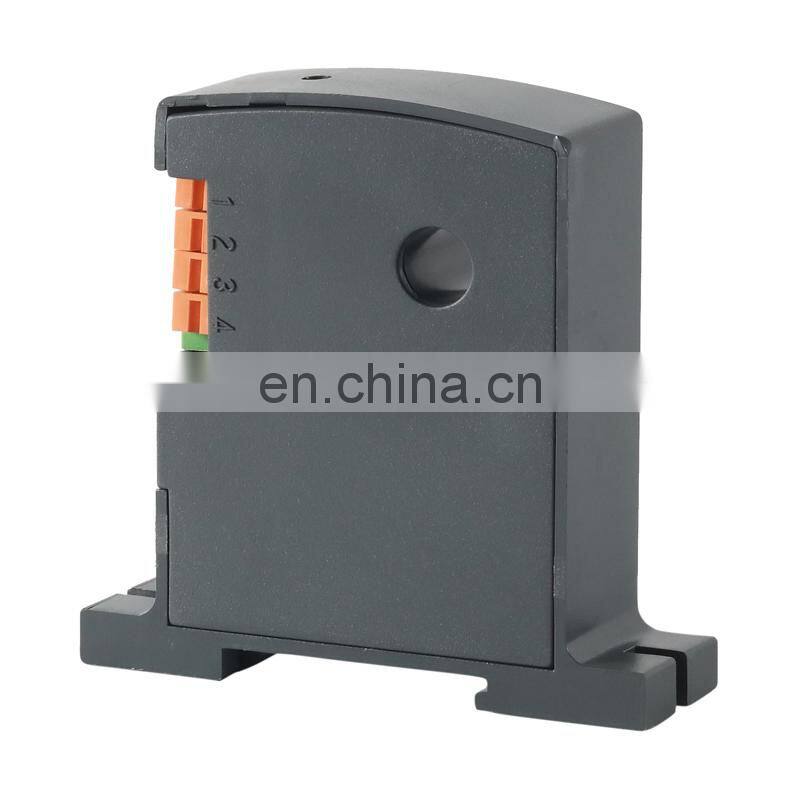

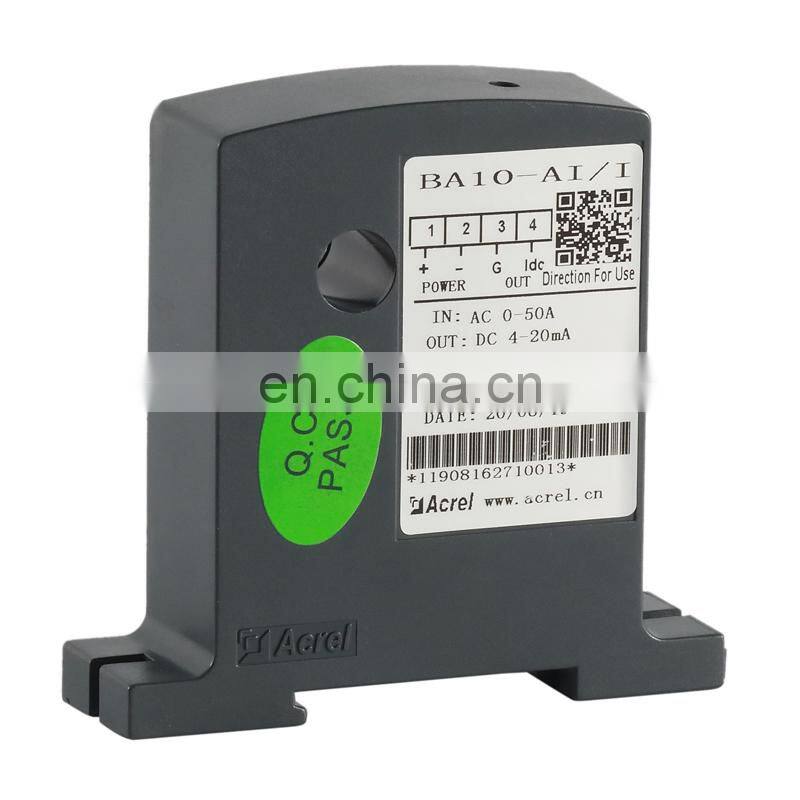

Acrel BA10-AI/I electrical transducer input 0-50A output 4 20mA current sensor

Name: Acrel BA10-AI/I electrical transducer input 0-50A output 4 20mA current sensor
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Specification

item	value
Model Number	BA10-AI/I
Type	CURRENT TRANSFORMER
Place of Origin	China
	Jiangsu
Brand Name	ACREL
Usage	current measurement
Theory
Output	DC4-20mA
Description	Current sensor

Products Description

BA10-AI/I ----------BA Series AC Current Sensor

BA10-AI/I, AC current input, DC current output

BA series CTs can measure the AC from power grid in real time by using electromagnetic induction principle (Lenz's Law). Meanwhile,with constant current and linear temperature compensation technique, can BA current sensors

transfer AC input into standard DC signal output isolatedly. Also,since the products are powered by safe DC 24V or DC 12V power supply, BA CTs have features of such as high overload sustainability, safe using protection, low power consumption and etc. Thus they can be widely used in the industrial field like industry automation

Also, as the prove for quality, BA series AC current sensor is strictly compliant of the standard of CE (EN 60688:2013, EN 61010:2010+A1:2019, EN 61326-1:2013);TUV(EN 62321-1:2013, EN 62321-2:2014 and etc). Certificates are shown below

Explanation of Model Name

Function & Parameter

General Specification

Item	Description
Power Supply	Voltage	DC 24V or DC 12V
Power Supply		Consumption	≤ 1W
Insulation Resitance	＞100 MΩ
Withstand Strength	Between input/output, power supply 2.0 kV/1min, 50Hz
Temperature Coefficient	≤200 PPM/℃，under -10℃~+55℃
Environment	Temperature	Working: -10℃~+55℃, Storage: -25℃~+70℃。
		Humidity	≤95% RH, No condensation, without corrosive gas
		Altitude	TS35 guide rail or fiexed on cabinet with screws

Technical Parameters

Paramters	Value&Description
Accuracy Class	class 0.5, class 0.2
Input	Nominal Value	AC 0~50 A
		Overload	continuous overload 1.2×Ib (1.2 times of nominal value); instant overload 10×Ib/1s (10 times of nominal value for 1 second)
		Absorbed Power	≤1 VA
		Frequency response	25Hz~800Hz (average); 25Hz~5000 Hz(true RMS), specialized for power frequency scenario
Output	Nominal Value	DC 4~20mA, DC 0~20mA etc.
Output		Load Resistance	≤500 Ω with current output; ≤1000 Ω with voltage output
Response Time	≤ 350 ms (average); ≤100 ms (true RMS)

Dimension & Installation

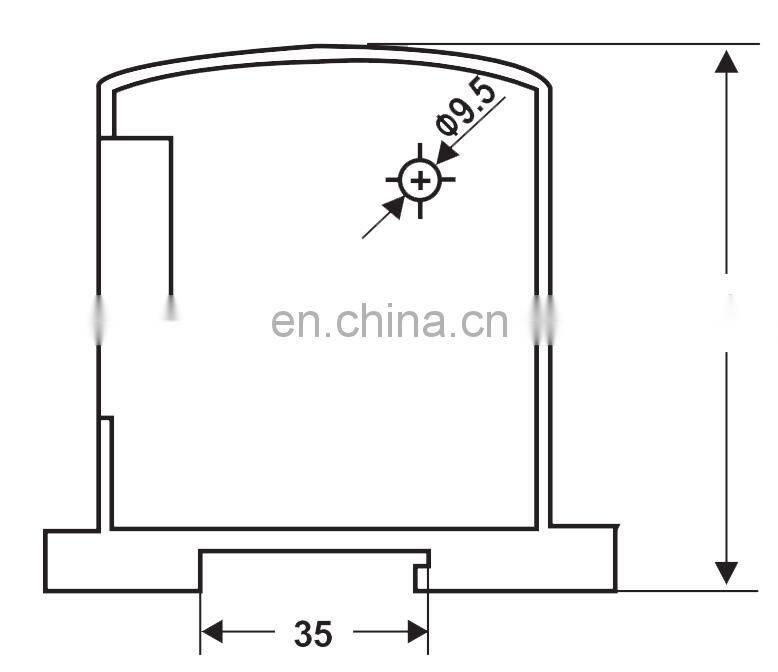

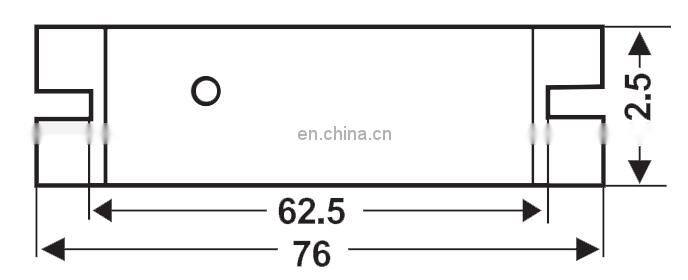

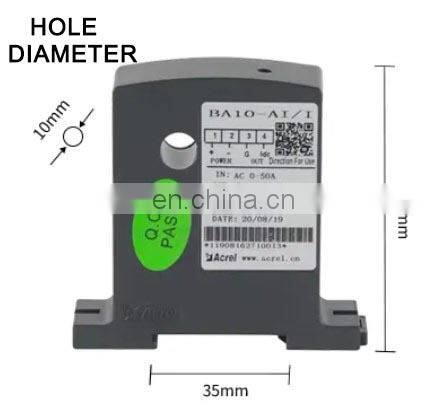

Dimension Overview

Wiring Illustration

Wiring instruction for BA with current output

1--E: stand for power supply anode (+)

2--G: stand for power ground

3--Output ground(can share groud with power supply, suitable for long rage transmission)

4--I_DC: stand for DC current output anode(+)

Installation Instruction

① 35mm DIN rail installation

② Fixed by screw
