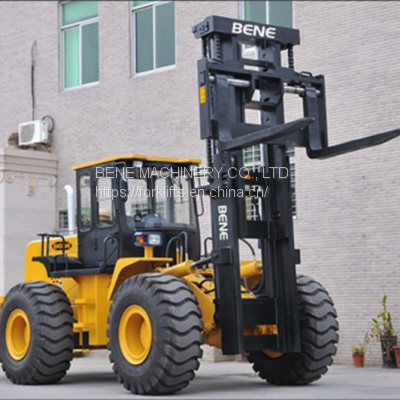

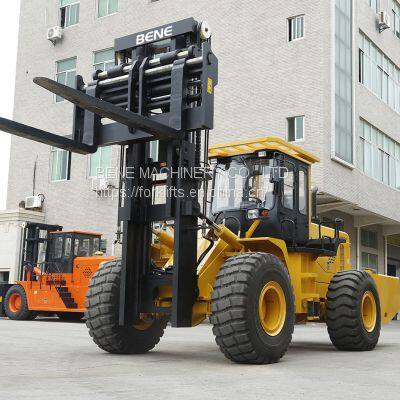

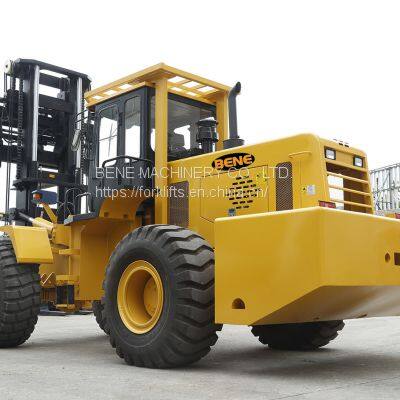

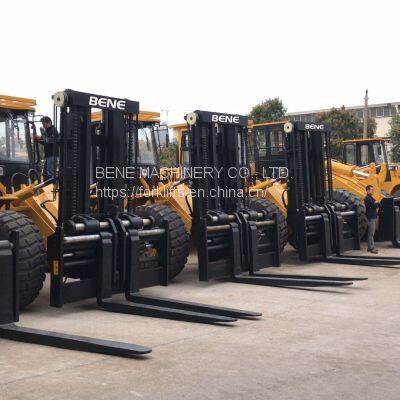

BENE 20ton Articulated Rough Terrain Forklift 20T 4X4 Off-road Forklift Truck ROPS
US$ 30000 - 50000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BENE
Place of Origin:
China
Model Number:
BER200T
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
30 days
Related Products
-
BENE 10ton/12ton All Terrain Forklift 10ton/12ton Rough Terrain Forklift Truck With Triplex MastUS$ 10000 - 20000MOQ: 1 Unit -
BENE 3ton 3.5ton All Terrain Forklift 4x4WD Drive 3.5ton Off-road Forklift TruckNegotiableMOQ: 1 Unit
-
Chinese 15ton 16ton All Terrain Forklift 16ton 4x4 Articulated Forklift Rough Terrain With Triplex Mast Cheap PriceNegotiableMOQ: 1 Unit
-
BENE 10ton to 12ton Wheel Loader Log Loader 10ton/12ton Wheel Loader With Log Grapples for Logs HandlingUS$ 1000 - 100000MOQ: 1 Ton
-
BENE 10ton Telehandler 10 Ton Telescopic Forklift 11ton Telescopic Wheel Loader With 4X4 Wheel DriveUS$ 10000 - 50000MOQ: 1 Unit
Brand Name
BENE
Place of Origin
China
Model Number
BER200T
Certification
CE
Type
Powered Pallet Truck
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Rated Loading Capacity
20000kg
Overall Dimensions
7500x2600x3200mm
Fork Width
180mm
Fork Length
1600mm
Min. Lifting Height
10mm
Max. Lifting Height
3000mm
Power Souce
Diesel Engine

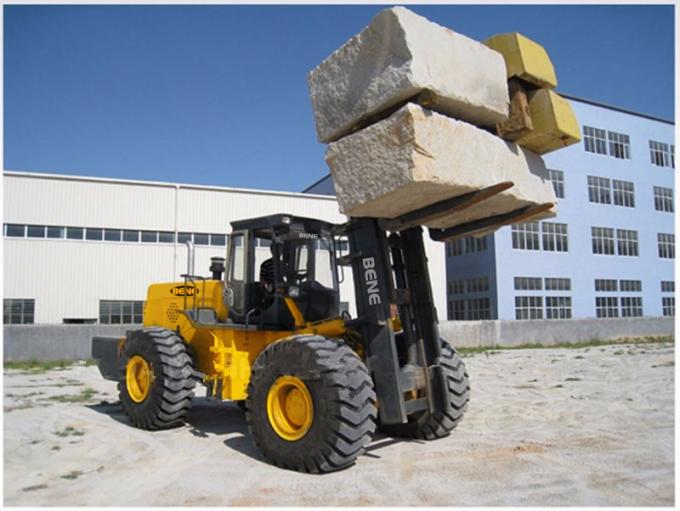

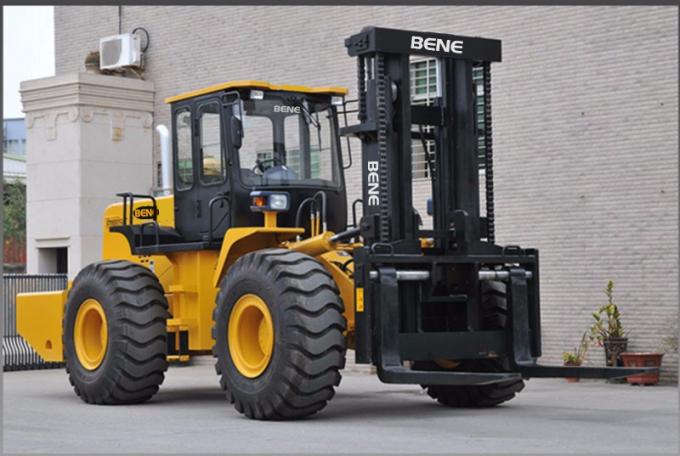

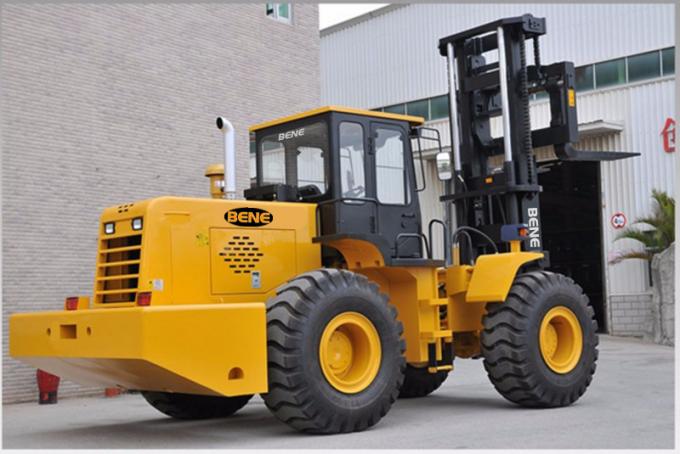

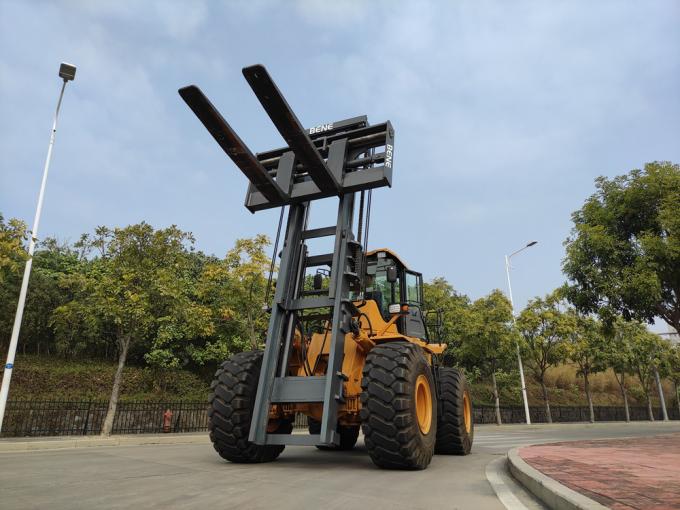

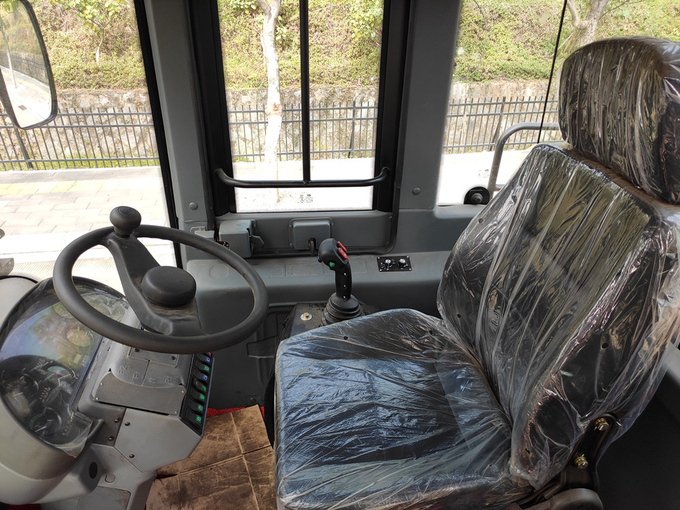

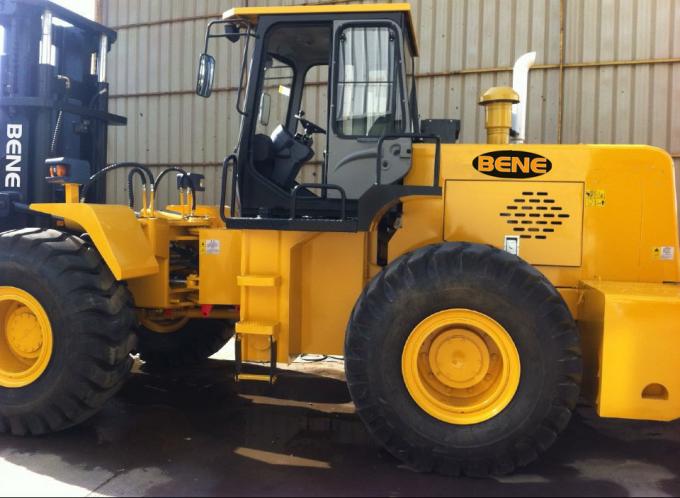

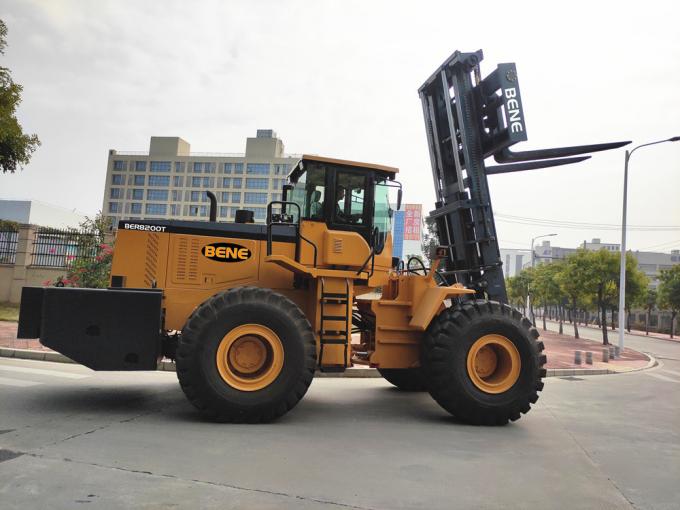

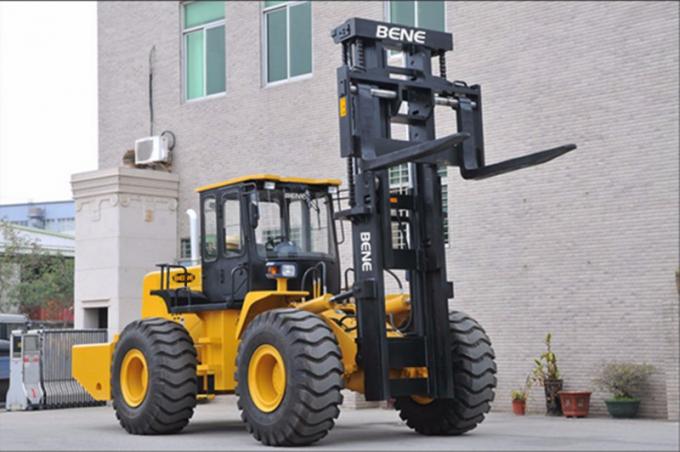

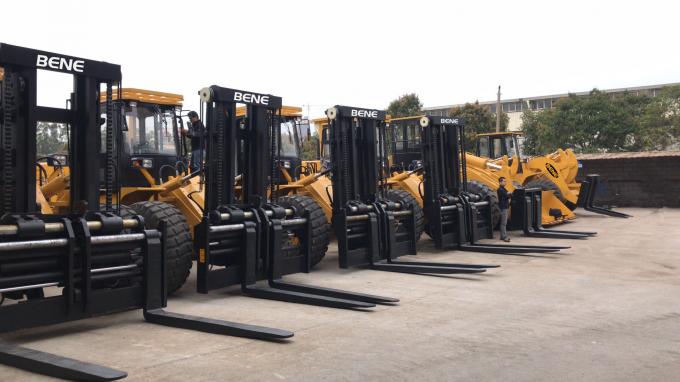

BENE 20ton all terrain forklift 20 ton articulated forklift rough terrain 20T 4X4 forklift with Cummins diesel engine
STRICT ENVIROUMENT PROTECTION DESIGN
We applied a lot of strict environment friendly designs on our 15ton all terrain forklifts products. All these measures efficiently protect the user and improve the environment.
RELIABLE SPECIAD DESIGNED INSTRUMENT
Solid State Digital instrument with built-in intellectual chip, what makes it sensitive, accurate, reliab, low power consumption and long-life. It also works in wide temperature range(-40℃～+80℃) and with high interference resistant capability.
POWERFUL ENGINE AND TRANSIMISSION SYSTEM
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine. This combination made the truck powerful reliable.
Speciflcation | ||||||
|---|---|---|---|---|---|---|
|
Manufa cture | BENE | ||||
| Manufacture | BER200T | |||||
| Power type | Diesel | |||||
| Rated loading capacity | Kg | 20000 | ||||
| Load center | mm | 800 | ||||
|
Lift height | mm | 3000 | |||
| Free lift height | mm | 195 | ||||
| Fork size | mm | 1600×180×100 | ||||
| Fork distance | Min./Max. | mm | 400/1480 | |||
| Mast tilt anglc | Front/After | deg | 8/12 | |||
| Front overhang | mm | 950 | ||||
|
Overall length | mm | 75000 | |||
| Overallwidth | mm | 2600 | ||||
| Mast lowered height | mm | 2980 | ||||
| Mast extended height | mm | 4380 | ||||
| Overhead guard height | mm | 32000 | ||||
| Turning radius | mm | 5500 | ||||
| Min.right angle aisle width | mm | 3500 | ||||
|
|
Traveling Speed | km/h | 25/24 | ||
| Lifting spead | mm/sec | 320/270 | ||||
| Max.grade abnlity | % | 25 | ||||
| Max. Pull force(full load) | KN | 95 | ||||
| Self weight | kg | 23800 | ||||
|
Tread | Front | 26.5-25 | |||
| Rear | 26.5-25 | |||||
| Treadwidth | Front | mm | 1500 | |||
| Rear | mm | 1550 | ||||
| Wheelbase | mm | 3900 | ||||
| Min.Ground clearance (No load/Full load) | Mast | mm | 230/220 | |||
| Frame | mm | 245/240 | ||||
|
Battery | V/AH | 24/100×2 | |||
|
Manufacture | WD10G220E11 | ||||
| Manufacture | WEICHAI | |||||
| Rated power | Kw/rpm | 162/2300 | ||||
| Rated torque | N.m/rpm | 1460/2400 | ||||
| NO.of cylinder | 6 | |||||
| Bore×Stroke | mm | 126×130 | ||||
| Displace ment | L | 9.726 | ||||
| Fule tank capacity | L | 200 | ||||
|
Type | L | Hydraulic | |||
| Shift Front/rear | 2/1 | |||||
