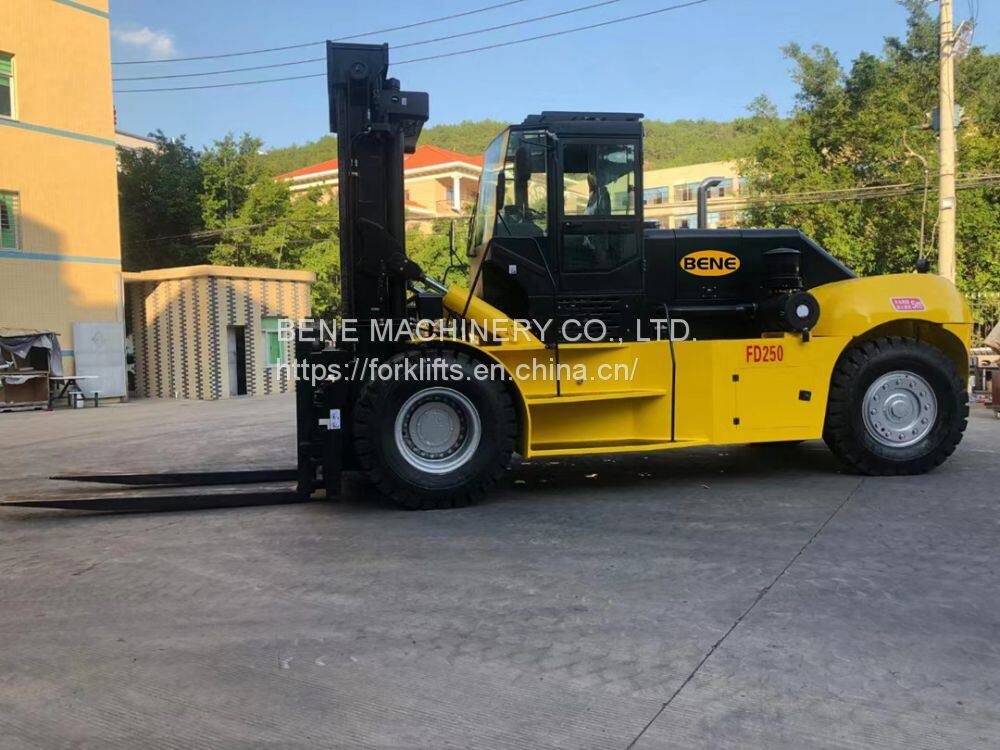

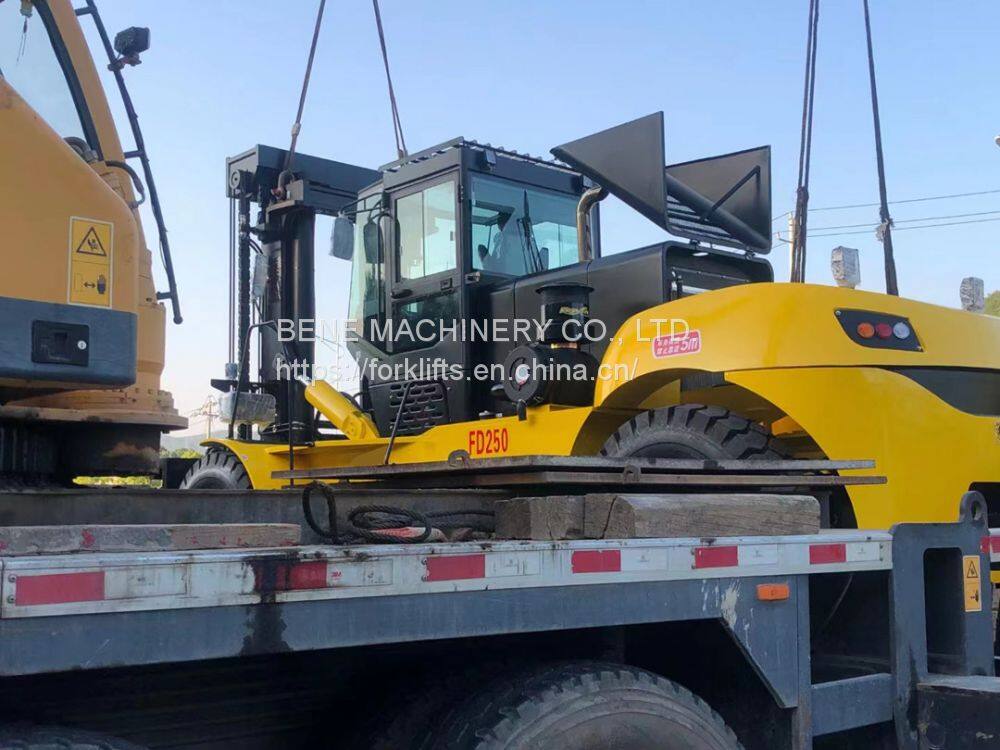

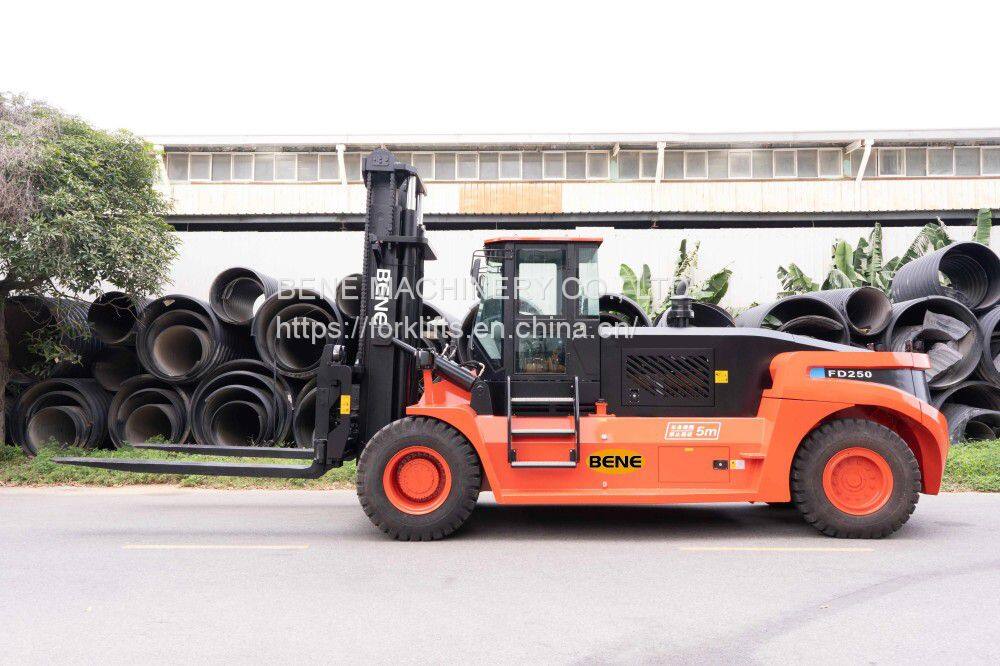

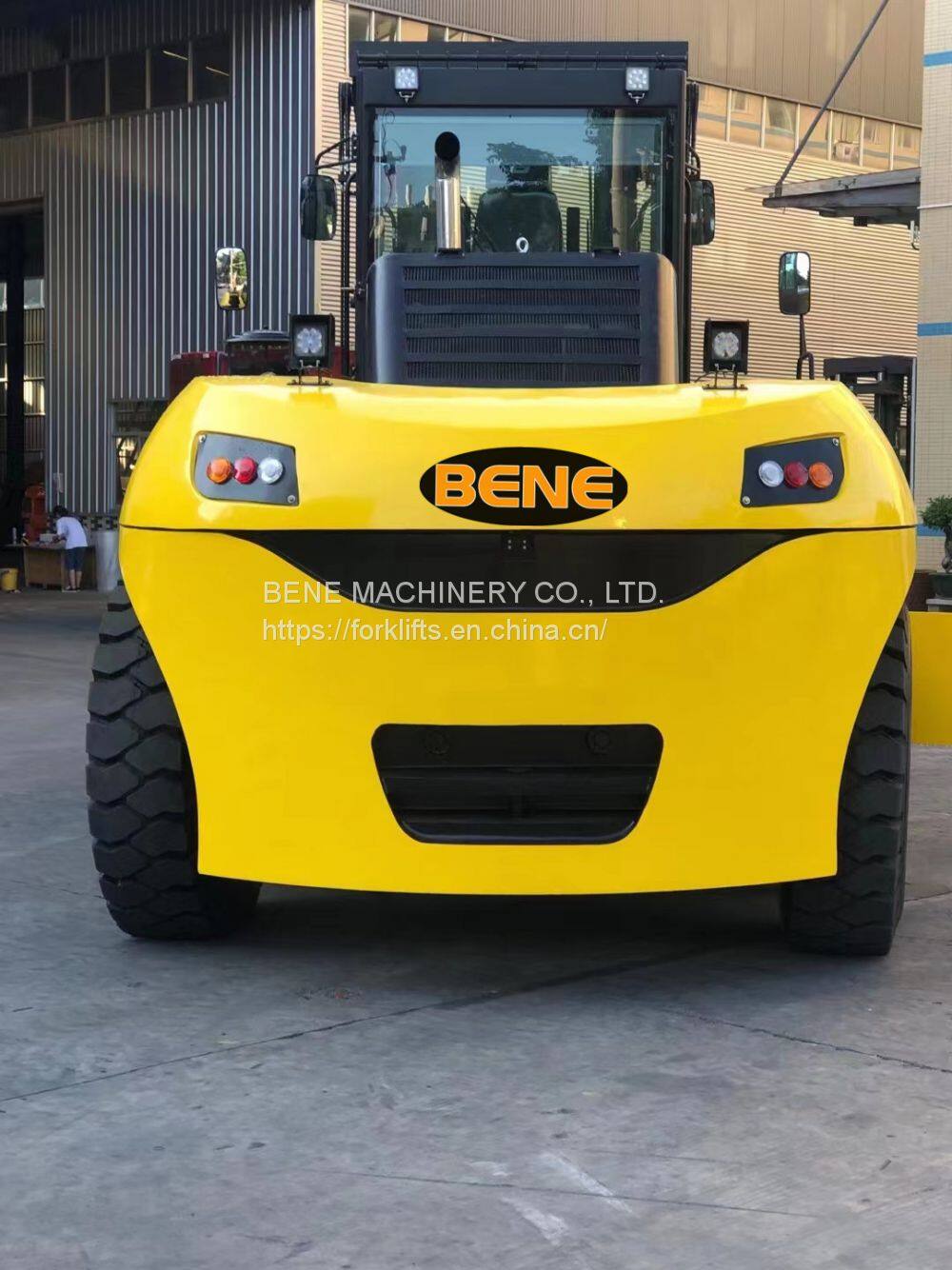

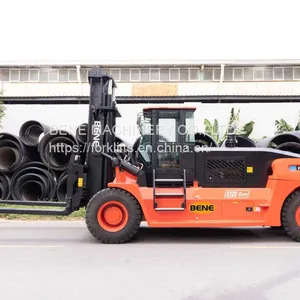

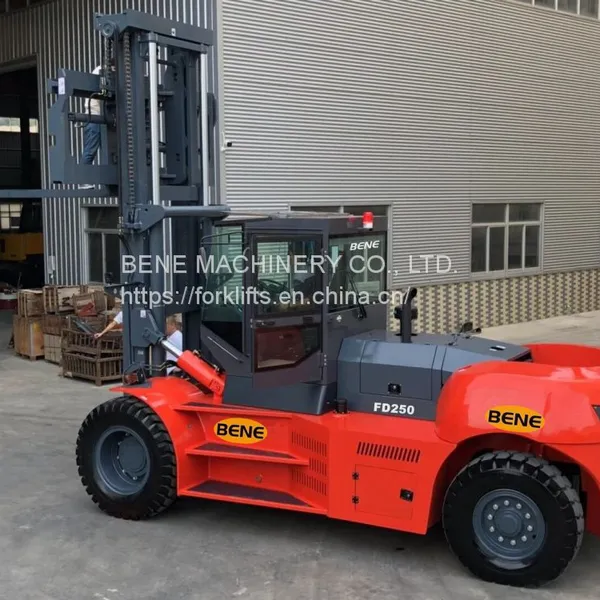

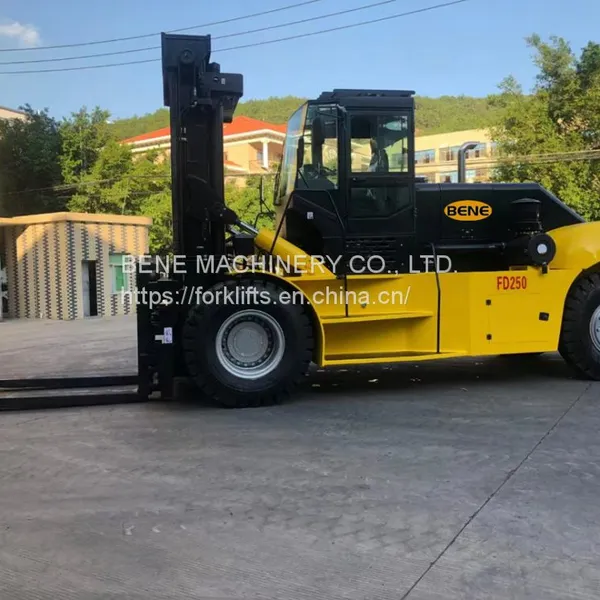

BENE 25 Ton Heavy Diesel Forklift Chinese 25ton Forklift Supplier With Low Price
US$ 100000 - 140000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BENE
Place of Origin:
China
Model Number:
FD250
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
30 days
Related Products
-
BENE 25ton Heavy Duty Forklift VS HELI 25ton Forklift Truck for Container LiftingUS$ 100000 - 140000MOQ: 1 Unit -
BENE 16 Ton Diesel Forklift With Cummins Engine With Triplex 4.5m MastUS$ 50000 - 70000MOQ: 1 Milligram
-
CHinese BENE 15 Ton 16ton Diesel Forklift With Side-shifterUS$ 50000 - 70000MOQ: 1 Milligram
-
Chinse BENE 25 Ton Heavy Diesel Forklift VS SANY 25 Ton HELI 25 Ton Container Forklift With Cummins EngineUS$ 100000 - 130000MOQ: 1 Unit
-
Chinse 25 Ton Heavy Duty Forklift VS FD250 25 Ton Container Forklift With ZF TransmissionUS$ 100000 - 130000MOQ: 1 Unit
Brand Name
BENE
Place of Origin
China
Model Number
FD250
Certification
CE
Type
Powered Pallet Truck
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Rated Loading Capacity
25000kg
Overall Dimensions
9300x3150x4350mm
Fork Width
300mm
Fork Length
2400mm
Min. Lifting Height
10mm
Max. Lifting Height
4000mm
Power Souce
Diesel Engine

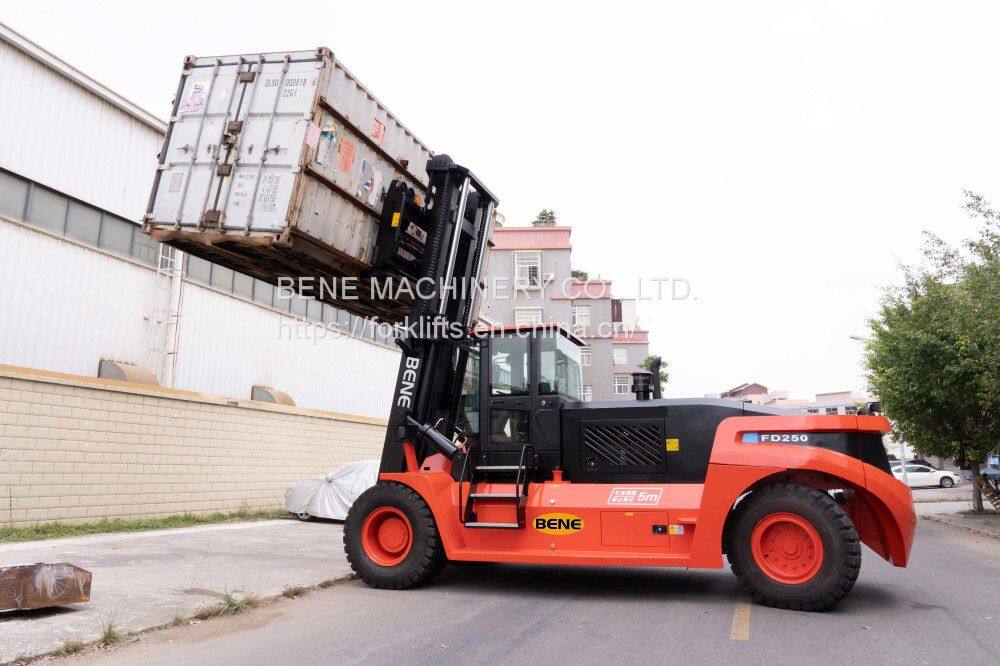

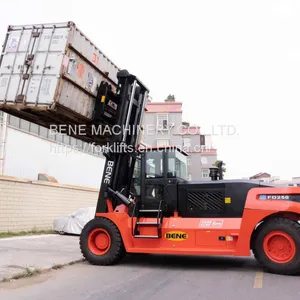

BENE 25 tons heavy diesel forklift factory 25tons to 28ton/30tons container reach stacker with Cummins engine

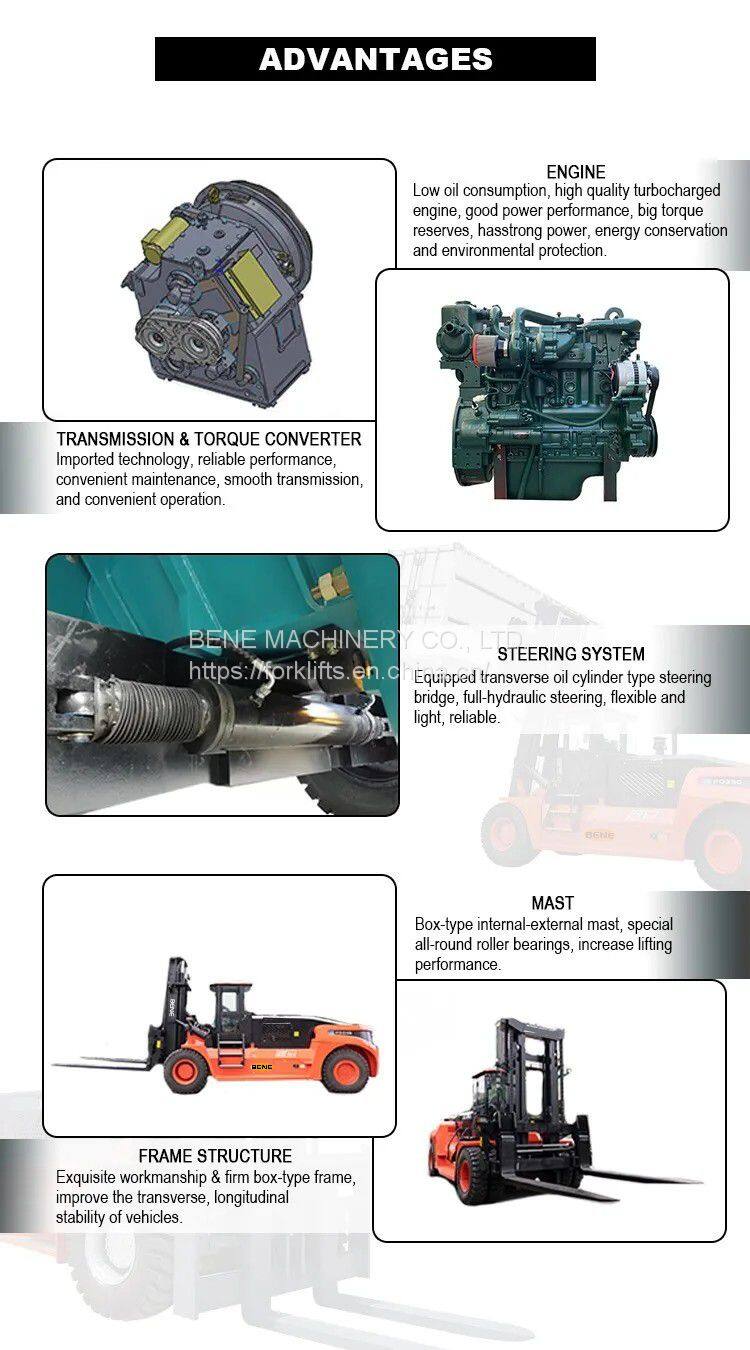

1.Adopt CUMMINS diesel engine, which features sufficient power, large torque, strong overload capacity, reliable work, and low oil consumption
2.High strength solid steel gantry fork fixed with fork with regulator.
3.Heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.
4.Fitted with handy steer with maximum freedom, provides steering conveniences.
5.An ideal operation friendly in the engineering and industrial sectors.
6.Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability
7.The gearbox and torque converter are of reliable quality and stable performance.
8.The transmission mode is hydraulic transmission (flexible transmission), being stable and convenient to operate.
9.Brake system is famous brand product, with reliable brake performance.
| Item | Item description | units | |||

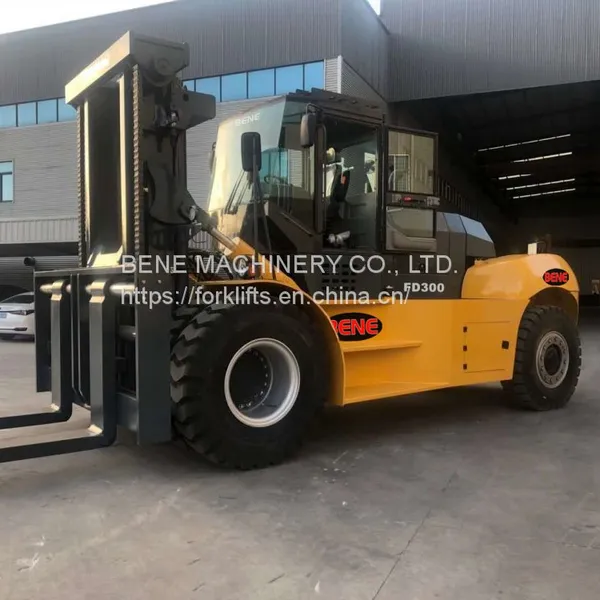

| FD250 | FD300 | FD320 | |||
| Features | Rated Load | Q(Kg) | 25000 | 30000 | 32000 |
| Load Center | c(mm) | 1220 | 1220 | 1220 | |
| Wheelbase | y(mm) | 4400 | 4400 | 4800 | |
| Weight | Weight | kg | 33500 | 38000 | 42000 |
| Chassis | Tire Specs:Front | 14.00-24 | 14.00-24 | 16.00-25 | |
| Tire Specs:Rear | 14.00-24 | 14.00-24 | 16.00-25 | ||
| Tires Qty,front/rear (X-dreve wheels) | 4/2 | 4/2 | 4/2 | ||
| Wheel tread:Front | b3(mm) | 2220 | 2220 | 2430 | |
| Wheel tread:Rear | b4(mm) | 2300 | 2300 | 2230 | |
| Dimensions | Mast/carriage tilt angle(front/rear) | Degree(°) | 6/12 | 6/12 | 6/12 |
| Mast height(fork lowering) | h1(mm) | 3970 | 3970 | 4150 | |
| Mast lifting height | h2(mm) | 4000 | 4000 | 4000 | |
| Max.height | h3(mm) | 5940 | 5940 | 6120 | |
| height to head guard(height to cab) | h4(mm) | 3440 | 3440 | 3460 | |
| Overall length（with forks) | L3(mm) | 8950 | 8950 | 9460 | |
| Fork front verticaal sueface to the rear end of the vehicle | L2(mm) | 6550 | 6550 | 7060 | |
| Overall width | b1(mm) | 3060 | 3060 | 3360 | |
| Fork dimension | (mm) | 2400*300*100 | 2400*320*110 | 2400*320*120 | |
| Fork carriage width | b2(mm) | 2800 | 3000 | 3000 | |
| Mast min ground(with load) | m1(mm) | 350 | 350 | 400 | |
| Wheelbase center min ground(with load) | m2(mm) | 420 | 420 | 460 | |
| Min.turning Radius | Wa(mm) | 6160 | 6160 | 6600 | |
| Travel speed(with load/without load) | km/h | 25/30 | 24/28 | 25/28 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 260/270 | 260/280 | 260/280 |
| tractionn | KN | 160 | 180 | 200 | |
| gradeability(with load/without load) | % | 20/22 | 20/22 | 20/20 | |
| Driving brake | Hydraulic clamp disvc | Hydraulic clamp disvc | Hydraulic clamp disvc | ||
| Engine | Engine brand/model | Optional one | WeiChai Engine | WeiChai Engine | WeiChai Engine |
| WD10G220E（Tier II） | WD10G240E（Tier II） | WD10G240E（Tier II） | |||
| Optional two | Dongfeng cummins | Dongfeng cummins | Dongfeng cummins | ||
| Rated Output | 162(Kw) | 178(Kw) | 178(Kw) | ||
| Cylinder No | 6 | 6 | 6 | ||
| Others | Transmission gears(Front/rear) | 2/1 | 2/1 | 2/1 |
