Help CenterB22DT High Speed Copper Fine Wire Drawing Machine With Annealing
Related Products
-
High Speed Super Copper Fine Wire Drawing MachineUS$ 8000 - 9000MOQ: 1 Set -
Intermediate Wire Drawing Machine With AnnealingUS$ 35000 - 40000MOQ: 1 Set
-
450/13 Copper Rod Drawing Machine With AnnealingUS$ 150000 - 250000MOQ: 1 Set
-
High Speed 8mm Copper Rod Breakdown Machine With AnnealingUS$ 150000 - 250000MOQ: 1 Set
-
Fine Copper Wire Drawing Machine With AnnealingUS$ 25000 - 30000MOQ: 1 Set
Technical Parameter:
| Machine type | 22DT | 24DT |
| inverter control | double inverter control | |
| Max.inlet Dia.(mm) | 1.2 | 1.0 |
| outlet Dia.(mm) | Φ0.15-Φ0.40 | 0.08-0.25 |
| Max.Die No | 22 | 24 |
| Max.line speed(m/min) | 1800 | |
| body structure | welded by steel plate | |

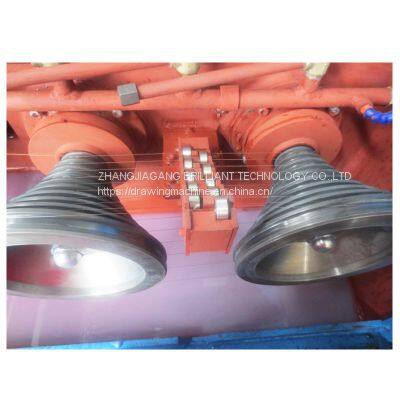

| drawing capstan | ceramic plasma capstan | |
| slip ratio of m/c(%) | 15 | 13 |
| main motor power | 11(15) | |
| take-up motor(kw) | 4 | |
| fix speed capstan Dia.(mm) | Φ160(Φ206) | |
| transmission type | flat belt | |
| lubrication type | spray | |
| Max.annealing voltage(V) | DC60 | |
| Max.annealing current(A) | DC200(DC250) | |
| take-up bobbin size(mm) | Φ300 | |
| traversing type | synchronous motot+belt | |
| tension control | weight blance type | |
| brake | magnetic brake | |
| weight | 3200 | |

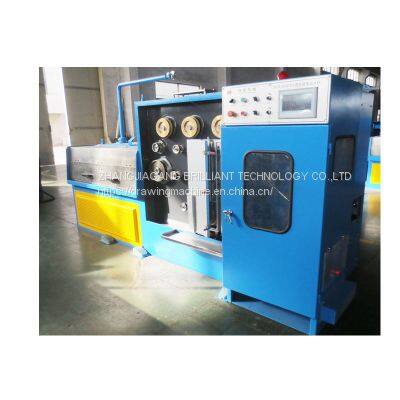

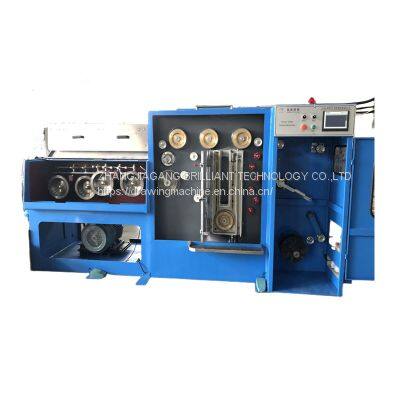

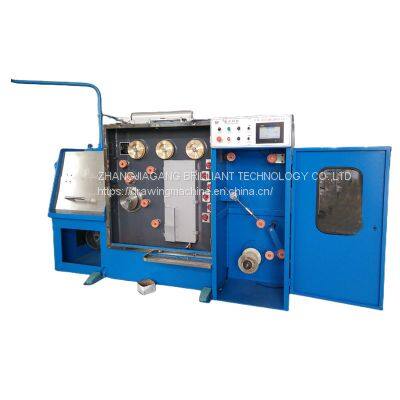

Product show:
Package and shipment:
Online Installation and testing:
Engineer dispatch:
Customer Feedback:
FAQ:
1. Who are we?
Brilliant is in suzhou.Factory is located in Zhangjiagang City.Established in 2011, with 11 years of experience in wire and cable field trade.
It will take us 1hour to the nearest seaport in Shanghai.
2. How can we guarantee quality?
1) Bring client to user's factory to see machine production condition and final cable quality.
2) With testing wire before shipment.
3) Engineer will be arranged after delivery.
4) Machinery parts are guaranteed for 12 months, electrical parts are guaranteed for 6 months.
5) Sales person and engineer is online for 24 hours to solve any problems.
3.What our main products?
Copper wire drawing machine, double twist bunching machine, electric cable extruder, coiling and packing machine, textile braiding machine etc.
4. How long is your delivery time?
30-60 days for goods after receiving order.
