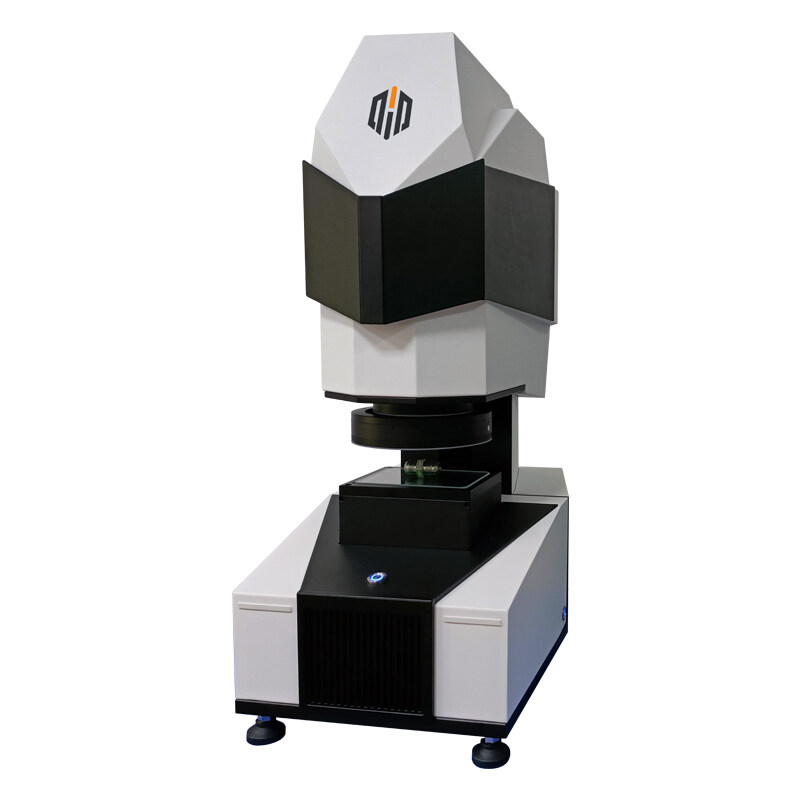

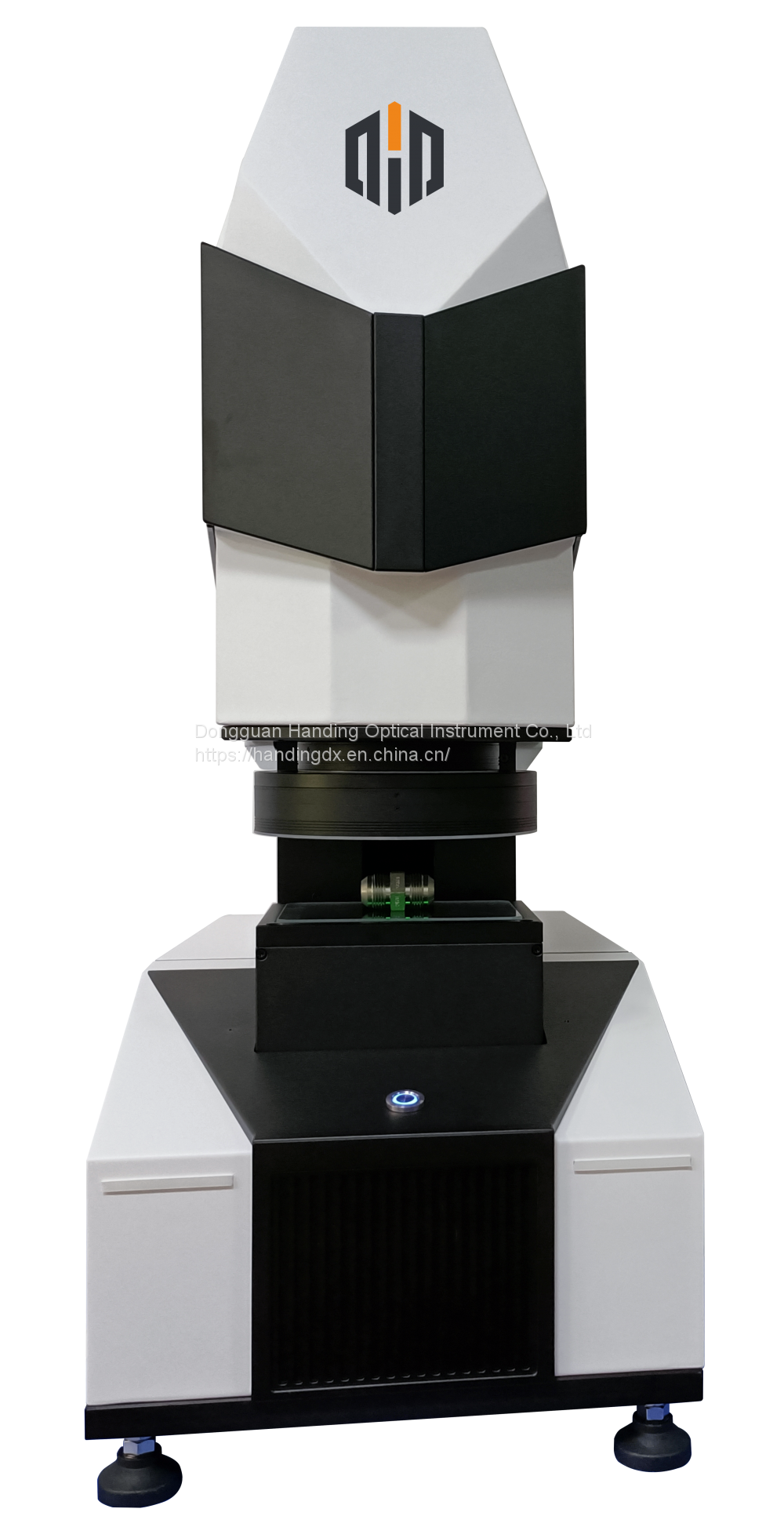

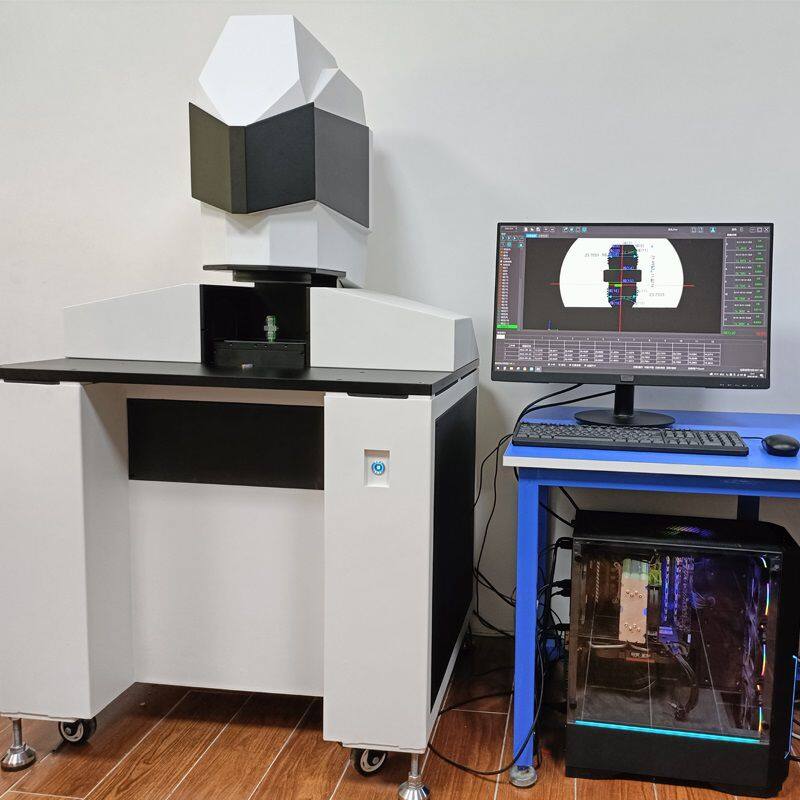

1. Instrument introduction
The stant vision measuring machine has the characteristics of rapid measurement and high precision, it perfectly combines far-heart imaging with intelligent image processing software,and will be the tedious measurement task, become extremely simple.
You simply place the workpiece in the effective measurement area, which instantly completes all two-dimensional size measurements.
2. Application industry
Instant vision measuring machine is widely used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical devices, clocks, knives and other small size of products and parts of the batch rapid measurement.
Model | HD-50D | HD-90D | SMU-180D |
CCD | 20 Million pixel industrial camera | ||
Lens | Ultra-clear bi-telecentric lens | ||
Light source system | Telecentric parallel contour light and ring-shaped surface light. | ||
Z-axis movement mode | 45mm | 55mm | 100mm |
Load-bearing capacity | 15KG | ||
Visual field | 42×35mm | 90×60mm | 180×130mm |
Repeatability accuracy | ±1.5μm | ±2μm | ±5μm |
Measurement accuracy | ±3μm | ±5μm | ±8μm |
Measurement software | IVM-2.0 | ||
Measurement mode | It can measure single or multiple products at the same time. the measurement time: ≤1-3 seconds. | ||
Measurement speed | 800-900 PCS/H | ||
Power supply | AC220V/50Hz,200W | ||
Operating environment | Temperature: 22℃±3℃ Humidity: 50～70% Vibration:<0.002mm/s, <15Hz | ||
Weight | 35KG | 40KG | 100KG |
Warranty | 12 months | ||
