cassette roller dies
- 100 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 30 days
- Power module Positive + Negative Electric Board Card for Thermatool High Frequency Welder
- Spiral Welded Pipe Tube Machine Line
- HF Welded Carbon Steel Furniture Pipe Making Machine
- Carbon Steel GI ERW Profile Shape Making Machine
- Black Tube Former Machinery HF Square Pipe Forming Machine
- HF Welded Straight Seam Metal Tube Production Line
Product Details
Brand Name: | CRM | Place of Origin: | China | Certification: | ISO.CE,EAC |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year | Condition: | New |
Product Description
DescriptionCRM rolling cassette is the most accurate and miniaturized model, and it is a roller dies to replace traditional wire drawing and wire drawing die. The original intention of this model is to solve the difficulty of metal wire over-molding, and it is suitable for high, medium and low carbon steel wire, stainless steel wire, welding wire, steel cord wire, aluminum-magnesium alloy wire, titanium, chromium, zirconium and other wires. The dimensions of the rolling cassette of this model are almost similar to the dimensions of the rolling cassette of the existing wire drawing machine. Easy to replace.

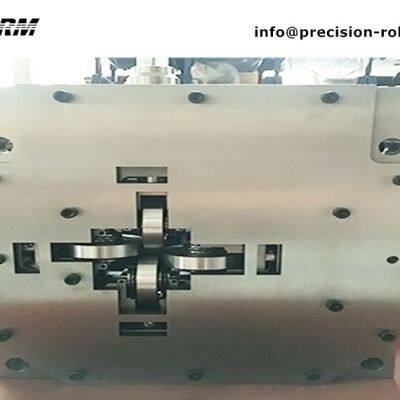

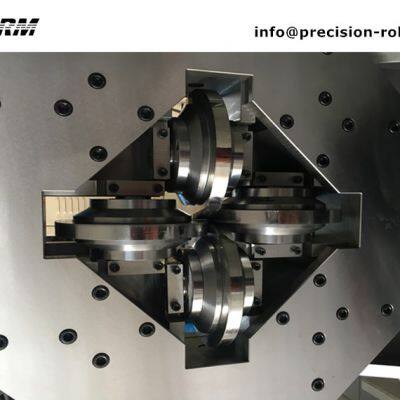

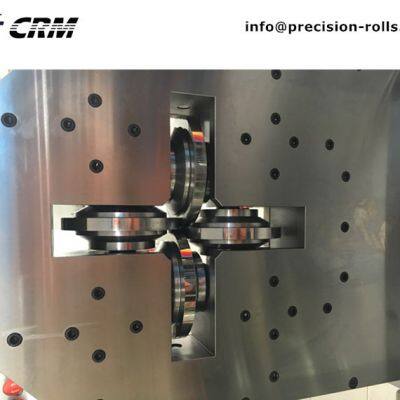

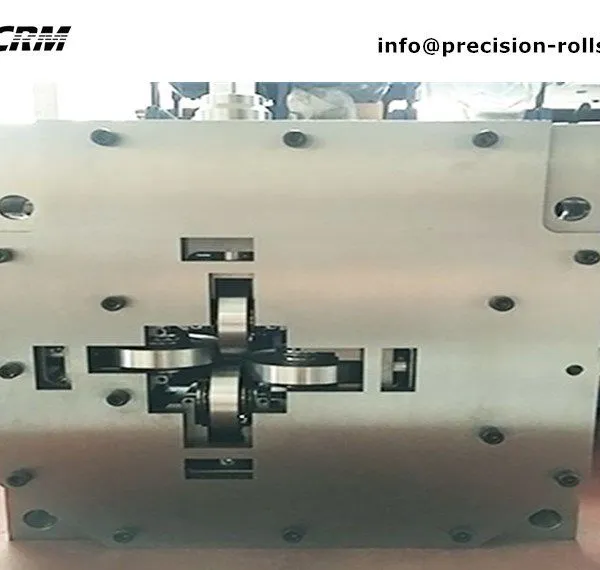

Square Wire Cassette Roller DiesMode: CRM-GLWA 120
Roller Dia.:120 mm
Features:High Precision,Long life,Easy Installation,non-replacing rollers on different shaped wires.
Uses: used to roll rectangular and squire wires, Suitable for non-ferrous and ferrous metals such as high, middle carbon steel wire, stainless steel wire, copper, aluminum and alloys.
GLWB-75 Rolling Cassette/Turks Head/Micro Rolling Cassette
Roller diameter: 75 mm
Features: compact structure with small size, Suitable for tandem installation.
Uses: GLWB rolling cassettes are specially designed to roll rectangular wire or square wire drawing production lines.
Suitable Material: carbon steel wire, stainless steel wire, titanium wire, titanium nickel alloy wire, copper wire,aluminum wire, brass wire and other non-ferrous and ferrous metals
Attributes: No drives. The round wire can be rolled small or medium cross-section profile wire&strip directly
Advantages: Cost-saving,Long service life,High Precision
It can be operated without lubricating oil (dry operation) in a special case.
Uses method: usually equipped with tractor or wire Rolling machine
CRM-GLWC-170 Rolling Cassette
Roller Dia.:120 mm
Features: High Precision,Long life,Easy Installation,non-replacing rollers on different shaped wires.
Uses: used to roll rectangular and squire wires, Suitable for non-ferrous and ferrous metals such as high, middle carbon steel wire, stainless steel wire, copper, aluminum and alloys.
Roll material: tool steel, sintered metal or carbide steel.
Uses method: usually equipped with tractor or wire drawing machine
Optional devices: guide wire device, rolling force measurement system, central lubrication system, etc.
Final Products
Flat Wire Drawing Machine/Rectangle Wire Rolling Machine
Brand: CRM

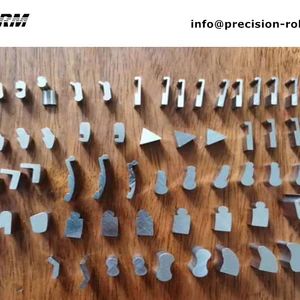

Shapes:round,flat,rectangle,triangle,wedge,Tear-drop and other special-shaped wires
Rolling Method:cold rolled/cold drawn

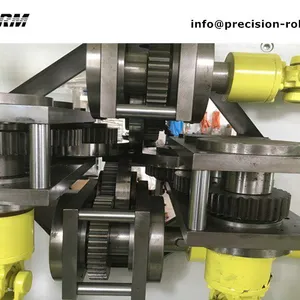

Precision Flat Wire Rolling Mill Production Line
3 Stand Flat wire Tandem Rolling Mill Line
It is possible to perform high precision flat& shaped wires rolling experiments from round inlet wires.
Uses: used for rolling micro flat wire, square wires, rectangular but also Wedge wire, pentagonal wires, hexagonal wires, semicircular wires.
Design Speed:100 m/ min
Application:
CRM precision flat and shaped wire drawing complete lines for flat and profile wire rolling for custom shapes, for steel, copper, aluminium, and other metals, alloys, in coils and bars
CRM Wire drawing processing is a metalworking process used to reduce the cross-section of a wire by pulling the wire through a single, or series of, drawing die(s) or cassette roller dies. There are many applications for wire drawing, including electrical wiring, cables, tension-loaded structural components, springs, paper clips, spokes for wheels, and stringed musical instruments. Although similar in process, drawing is different from extrusion, because in drawing the wire is pulled, rather than pushed, through the die. Drawing is usually performed at room temperature, thus classified as a cold working process, but it may be performed at elevated temperatures for large wires to reduce forces
Flat Wire Drawing Machine
Flat Wire Drawing Machine/Rectangle Wire Rolling Machine
Brand: CRM
Shapes:round,flat,rectangle,triangle,wedge,Tear-drop and other special-shaped wires
Rolling Method:cold rolled/cold drawn
about company
Sky Bluer Environmental Technology Co. Ltd ( Brand CRM ) is manufacture specialized in high precision cold rolling mills and systems for metal shaping, which mainly includes cassette roller dies, Turk heads,universal rolling mill,flat and profile wire rolling production lines, We have independently R&D rectangular wire and profile rolling and drawing production to replace brand Europe/USA/Japan cold rolling mills.CRM rolling mill, it guarantees for the most cost-saving of your products. better quality in evenness and finishing, the straightness up to 0.5mm/m, thickness and width tolerance can be accurate down to within 0.005mm.
Active introduction of Brand Japan small high-precision roll processing and grinding technology, the roundness tolerance is less than 0.001mm., finishing is 0.02μm.
