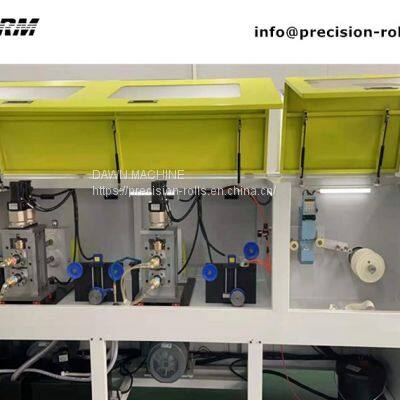

Strip Wire Flattening Mill

wire flattening mills

CRM GZ250 2Hi precision cold rolling machine, it consists of 2 Horizontal rollers, placed exactly one over the other.

Uses: used in tool steel or high-speed profiled wires, centrifuge sieves, heat exchanger, ski steel edges, piston rings, oil rings, etc.; PV ribbon, Enameled rectangular wire, precious metal composite material, high-speed rail sliding wire, gold and silver coin billet belt (mint), flat wire, steel belt, copper belt, copper foil, etc.

Suitable material: high-carbon, medium-carbon, low-carbon steel wire, stainless steel wire, titanium wire, titanium nickel alloy wire, copper aluminum wire,

brass wire and other non-ferrous and ferrous.

Brand: CRM-2-526

Precision rolling mill for rolling flat and shaped wires

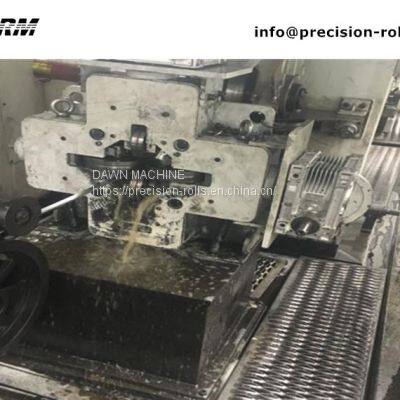

Round wires &strips are rolled flat and/or a profile is created. During the process, the wire is rolled in several stages both horizontally (edge processing) and vertically. A huge range of different profile shapes can be produced.

Roller material:  tool steel, sintered metal or carbide steel.

Roll diameter: 90-350 mm

Power system: Servo motor or three-phase motor

Press-down mode: electric or manual

Optional devices: guide wire device, roll force measurement system, central lubrication system, etc.

2 Hi Cold Rolling Mill

Brand: CRM-GZ

2 Hi cold rolling mill, also called Strip Wire Flattening Mill and Single Stand Flattening Mill,

CRM GZ250 2Hi precision cold rolling machine, it consists of 2 Horizontal rollers, placed exactly one over the other.

Uses: used in tool steel or high-speed profiled wires, centrifuge sieves, heat exchanger, ski steel edges, piston rings, oil rings, etc.; PV ribbon, Enameled rectangular wire, precious metal composite material, high-speed rail sliding wire, gold and silver coin billet belt (mint), flat wire, steel belt, copper belt, copper foil, etc.

Suitable material: high-carbon, medium-carbon, low-carbon steel wire, stainless steel wire, titanium wire, titanium nickel alloy wire, copper aluminum wire,
brass wire and other non-ferrous and ferrous.
