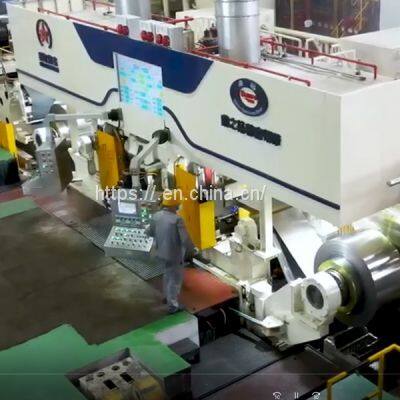

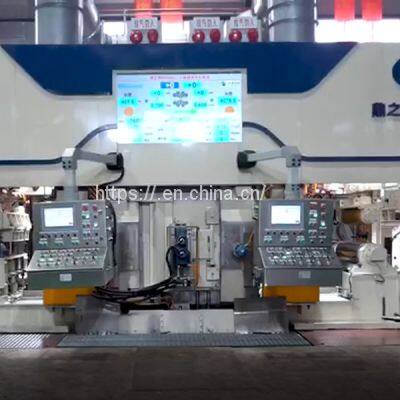

GLIMPSE Reversible 20 High Cold Rolling Mill

Glimpse reversing 20 Hi cold rolling mill

The reversing 20 Hi cold rolling mill is suitable for cold rolling high-strength steel materials such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling.

The reversing 20 Hi cold rolling mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape.

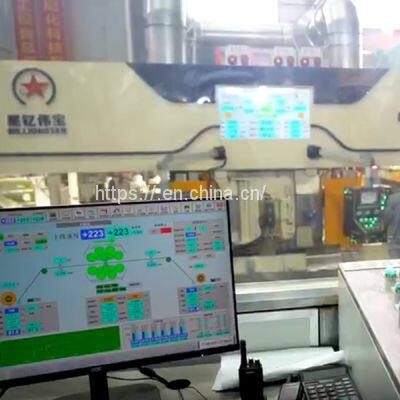

The reversing 20 Hi cold rolling mill has a high level of automation, saving labor costs and high efficiency.

For rolling stainless steel materials, the reduction rate is above 90%, and the rolling speed is 700 m/min; the maximum reduction rate for rolling carbon steel materials is above 95%, and the rolling speed reaches 800 m/min. The rolling output thickness is as thin as 0.03 mm.

Main parameters

Maximum rolling speed:                      800 meters/minute

Minimum rolling thickness:                 0.03 mm

Maximum rolling width:                       1675 mm

Roll system of reversing 20 Hi cold rolling mill

Layout of reversing 20 Hi cold rolling mill

Typical models of reversing 20 Hi cold rolling mill

1. 1450mm reversing 20 Hi cold rolling mill (AC inverter motor) Main parameters:

Material grade: stainless steel

Strip thickness: 5.0-0.15mm

Strip width: 800-1,300 mm

Rolling speed:  800 m/min

Diameter of work roll:80 mm

Diameter of back up roll bearing: 406.4 mm

Rolling force:10000 kn

Main motor power:5000 kw

Coiling motor power:8000 kW (two 4000kW)

2. 1450mm reversing 20 Hi cold rolling mill (DC motor) Main parameters:

Material grades:stainless steel

Strip thickness:3.0-0.10mm

Strip width: 800-1,300 mm

Rolling speed:600 m/min

Diameter of work roll:63 mm

Diameter of back up roll bearing:300 mm

Rolling force:8000 kn

Main motor power: 3000 kW (two 1500kW)

Coiling motor power:3000 kW (two 1500kW)

Keywords: cold rolling mill, reversing cold rolling mill, 20 Hi cold rolling mill
