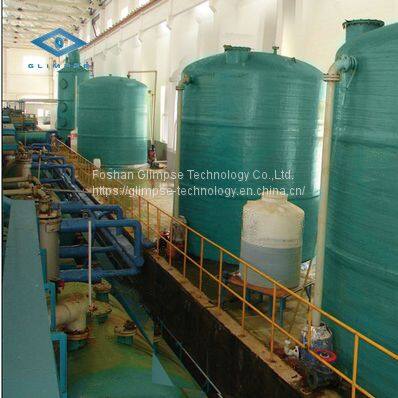

GLIMPSE Semi Continuouse Push-pull Pickling Line photo-2

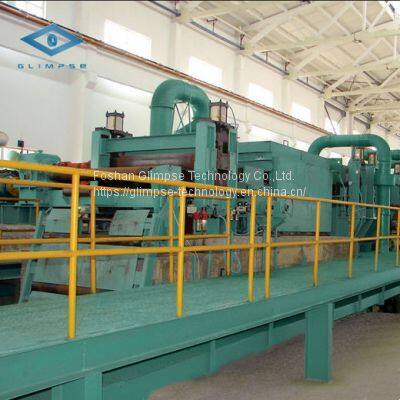

GLIMPSE Semi Continuouse Push-pull Pickling Line photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas

GLIMPSE push-pull pickling line

The push-pull pickling line is a semi-continuous production line for steel strip pickling process. This semi continuous pickling line features with lower consumption, easy operation and fewer malfunctions. Moreover, The push-pull pickling line is capable of processing many grades of steel strip coils. Thanks to well connection to key machinery suppliers and various project experience, Glimpse Technology is able to customize the pickling line to accommodate various production capacity requirements according to customer individual needs from 100,000~600,000 tons annual pickling capacity.



Parameter of GLIMPSE push-pull pickling line:

Acid media: HCL

Strip thickness: 1.2-4.5mm

Strip width: 500-1300mm

Coil weight: max 25t

Line speed: max 120m/min

Annual throughput: 400,000 ton per year



Process rout of GLIMPSE push-pull pickling line:

payoff roll→9-roll straightener→shear→riveter→entry looper→pre-rinsing tank→rinsing tank→hot air drier→exit looper→deflector→disc shear(with scrap coiler)→bridle roll→shear→oiler→tension coiler



Keywords: pickling line, push-pull pickling line, semi continuous pickling line




Product Tags: pickling line , push-pull pickling line , semi continuouse pickling line
