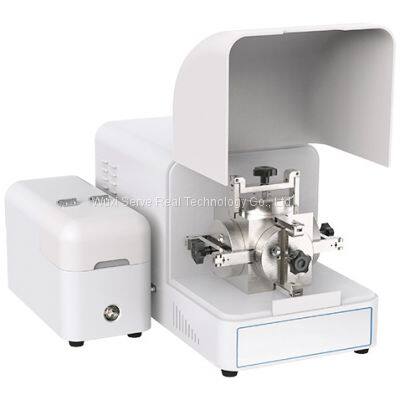

Oxygen transmission rate (OTR )tester single / four station ASTM D3985 ASTM F1307

FOB Price

USD $1000 - $2000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port SHANGHAI, SHENZHEN,NINGBO, QINGDAO
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail:2020 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:

SRI

Place of Origin:

China

Model Number:

BZ-LD1000

Packaging Details

Polywood case

Product Description

Product code: BZ-OTR

Standards

ASTM D3985, ASTM F1307, ASTM F1927,GB/T 19789,GB/T 31354,DIN 53380-3,JIS K7126-2-B,YBB 00082003-2015

The oxygen transmissivity tester is designed and manufactured according to ASTM D3985 standard using coulomb oxygen sensor and ISOBARIC test principle. It is applicable to high and medium oxygen and air barrier materials to test their oxygen transmissivity.

Features

High precision coulomb oxygen sensor improves the accuracy and stability of the test

• 7-inch high-definition LCD touch screen, more intuitive content and easier operation

• Independent single chamber test, one sample can be tested at a time

• Wide range, high precision, automatic temperature control to meet the test under various test conditions

• Test results support multi format storage and data output, including experimental report Excel and cloud sharing

• The product complies with the GMP user's multi-level permissions

• Single and group statistical analysis of test results can be conducted

• It has ISP online control and upgrade functions, and can change the test function remotely as required

• Special computer communication software, which can perform real-time display of test, data analysis and processing, and data storage

Test method

The processed sample is clamped on the test chamber. Oxygen or air flows on one side of the film, and high-purity nitrogen flows on the other side of the film. Oxygen molecules diffuse through the film to high-purity nitrogen on the other side, which is carried to the sensor by flowing nitrogen. After the oxygen concentration measured by the sensor is analyzed, oxygen transmission test data is issued after reaching osmotic balance.

Specifications

Thin film

Test scope	cc/(m2·day) (standard 50cm2)	0.1 ~ 200
Resolving power	cc/(m2·day)	0.1
Temperature range	℃	20 ~ 50 (optional)
Temperature resolution	℃	0.1
Extended functions	GMP computer system	Optional

Container (optional)

Test scope	cc/(pkg·day)	0.001 ~ 12
Resolving power	cc/(pkg·day)	0.001
Temperature range	℃	RT ~ 50 (optional)
Temperature resolution	℃	0.1

Model	BZ-OTR01	BZ-OTR04
Test chamber	1pc	4 pcs
Sample size	97 mm × 97 mm Other sizes can be customized	97 mm × 97 mm others can be customized made
Sample thickness	≤ 3 mm	≤ 3 mm
Standard test area	50 cm2	50 cm²
Test gas	99.5% oxygen (provided by the user)	99.5% oxygen(air source self-contained by user)
carrier gas	99.999% high-purity nitrogen	99.999% high purity n
Test pressure	7.2 PSI / 50 kPa	7.2 PSI / 50 kPa
Interface size	1/8 inch metal pipe	1/8 Inch metal tube
Overall dimensions	400 mm (L) × 475 mm (W) × 450 mm (H)	440 mm (L) × 450 mm (W) × 450 mm (H)
Power Supply	AC 220V 50Hz	AC 220V 50Hz
Net weight	25 kg	42 kg

Configurations

Standard configuration: host, micro printer, special sampler, vacuum grease

Options: professional software and communication cable, GMP computer system requirements, computer

Remarks: The air inlet of this machine is 1/8 inch metal pipe; Gas source and distilled water provided by users
