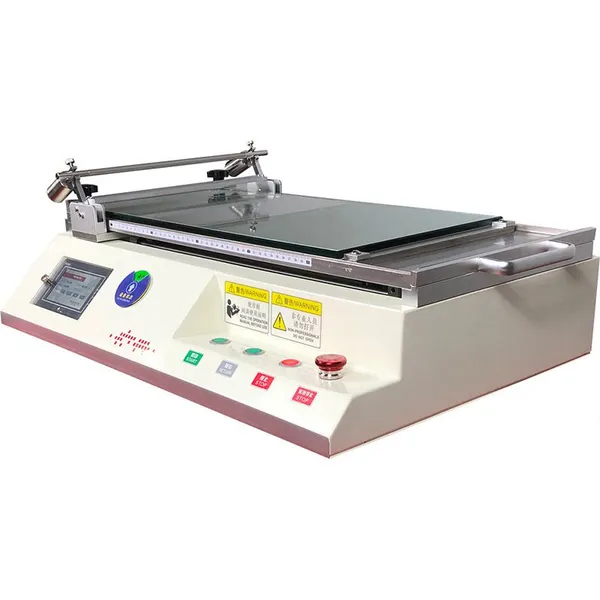

Automatic High Quality Laboratory Film Coater /Pilot Film Coating Machine

Automatic High Quality Laboratory Film Coater /Pilot Film Coating Machine thumbnail-1
Automatic High Quality Laboratory Film Coater /Pilot Film Coating Machine photo-1
US$ 1000 - 3000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Serve Real
Place of Origin:
China
Model Number:
BZ-JJ1000
Contact Supplier Request Quote Chat Now
Wuxi Serve Real Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Serve Real
Place of Origin China
Model Number BZ-JJ1000
Power Other, Other
Usage Other, Packaging test equipment

The laboratory small coater is a small machine that applies one or more coatings on the substrate to form a solid continuous film.

Specification:

Model TB-5000L TB-5000LG
Coating thickness 6,8,10,12,20,25,30,40,50,60,80,100,120,150,200 μm
OSP rod:  1.5,2,3,4,5,6,7,8,9,10,12,13,15,17,18,22,25,30,35, 40,42,47,50,52,80,100,120,150 μm
Coating accuracy 0.002mm(wire rod)/0.01mm(scraper)
coating speed 1~1.2m/min(linearity speed regulation)
Effective coating size L400*W300mm
Machine size L690*W460*H190mm
Machine weight Approx. 35kg
Environmental requirements 5ºC-35ºC,≤80%RH
power supply AC220V,50Hz
power 300W
way to control touch screen
special function Glue tank design
Glue method Wire rod Wire rod scraper type
Glue range See wire rod sizes 10-3000um adjustable
Standard China made wire rod 1pc 1 set of scraper (width 200mm)
Optional parts Other specifications wire rod Optional scraper width: 55, 100, 150, 300mm


Product Tags: Pilot Film Coating Machine , Laboratory Film Coater , Packaging Test Equipment
