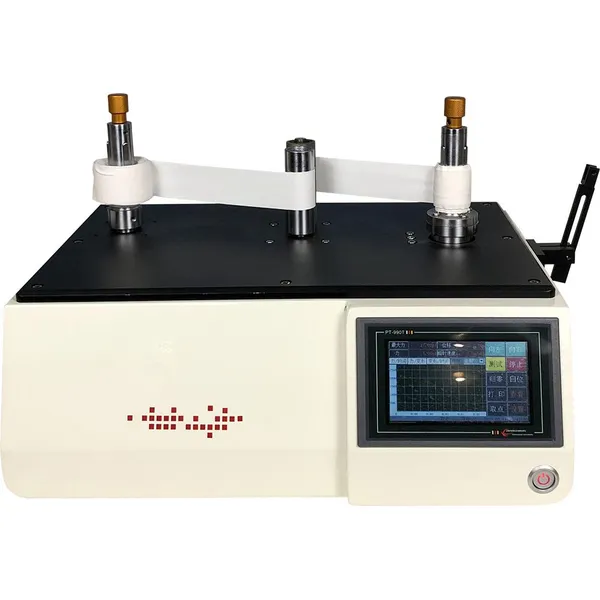

ASTM D1000 High Speed Unwind Force Tester Unwind Testing
US$ 1000 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Serve Real
Place of Origin:
China
Model Number:
BZ-JJ1000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Automatic High Quality Laboratory Film Coater /Pilot Film Coating MachineUS$ 1000 - 3000MOQ: 1 Set -
ASTM D1709 Thin Film Impact Tester Film Impact Testing MachineUS$ 1000 - 3000MOQ: 1 Set
-
Portable Headspace Gas Detector O2 CO2 DetectorUS$ 1000 - 10000MOQ: 1 Set
-
Bubble Emission Leak Tester Package Tightness Test Equipment ASTM D3078US$ 1000 - 10000MOQ: 1 Set
-
Friction Coefficient & Peeling Tester ISO 8295 ISO 8510-2 ASTM D1894US$ 1000 - 10000MOQ: 1 Set
Brand Name
Serve Real
Place of Origin
China
Model Number
BZ-JJ1000
Power
Other, Other
Usage
Other, Packaging test equipment
This tester is used to determine the unwind force of pressure-sensitive adhesive tape under ASTM D1000 method A-fast rate removal.
Specifications
| Standard sample size | The diameter of the reel is 75mm and the width is less than 75mm (the reel can be customized), the maximum outer diameter is 300mm |
| Load element | 10kg, 20kg, 50kg optional |
| Load cell accuracy | ±0.1% (full scale) |
| Force measurement resolution | 1/300,000 |
| Test software | specialized software for unwinding test, automatically records the force value when unwinding 25%, 50% and 75% |
| Unwinding speed range | 0~122m/min±3 m/min (can be set arbitrarily) |
| Force unit switching | All units can be selected freely, and the unit can also be customized. After the test is completed, it can be freely converted. |
| Machine size | Approximately 50*40*30cm (W*D*H) |
| Machine weight | About 27kg (excluding outer packaging) |
| Power | Servo motor |
| Control method | 5-inch PLC touch screen control, can be connected to a computer for operation |
| Power supply | 1/2PH, AC220V (or 110V), 5A |
