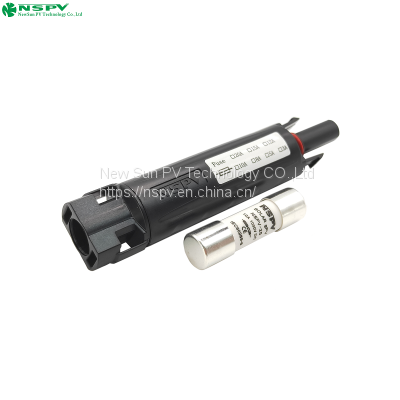

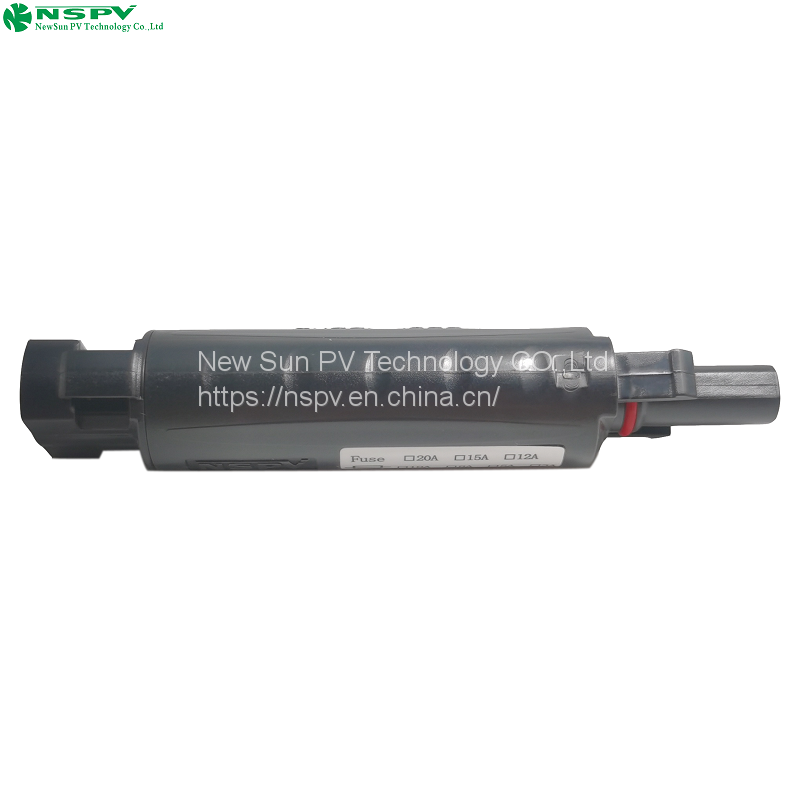

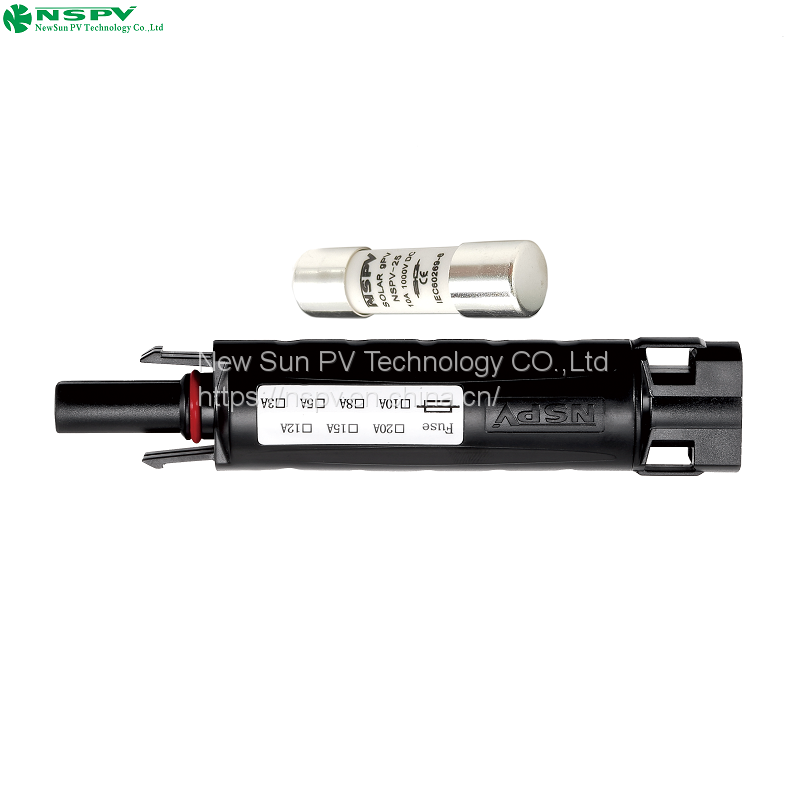

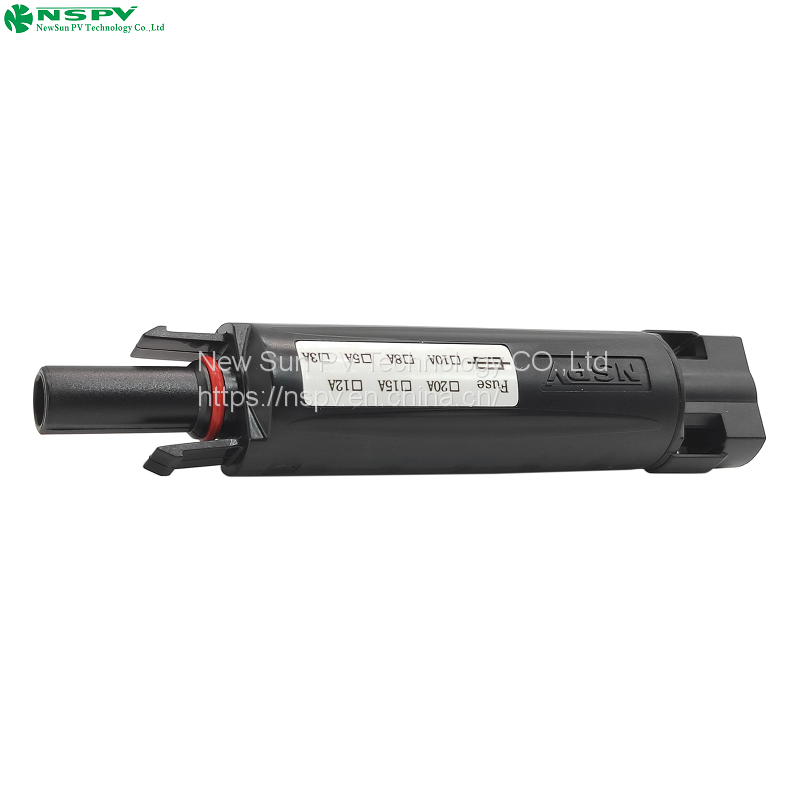

Solar Cable Fuse Connector DC 1000V

Name: Solar Cable Fuse Connector DC 1000V
Brand: fuse connector
Availability: InStock

FOB Price

US$ 2.7 - 3.2 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	fuse connector		Place of Origin	China
Model Number	4F0

Product Specifications

Insulation material : PPE/PA

Overvoltage category/Pollution degree : CATIII/2

Rated current(Without fuse) : 30A

Safety degree : II

Rated current(With fuse) : 1A,2A,3.5A,4A,5A,8A,10A,12A,15A.20A.25A.30A

Flame dass : UL94-V0

Rated voltage : 1000VDC

Insertion force/Withdrawal forcee : ≤50N/≥50N

Test voltage : 6kV(50Hz,Imin)

Ambient temperature range : -40℃...+85℃(IEC)

Typical contact resistance : ≤0.25 mΩ

Upper limiting temperature : 110℃(IEC)

Contact material : Copper,Tin plated

Connecting system : Crimp connection

Degree of protection : IP67

Nut cap locking force : 1.5-1.8Nm

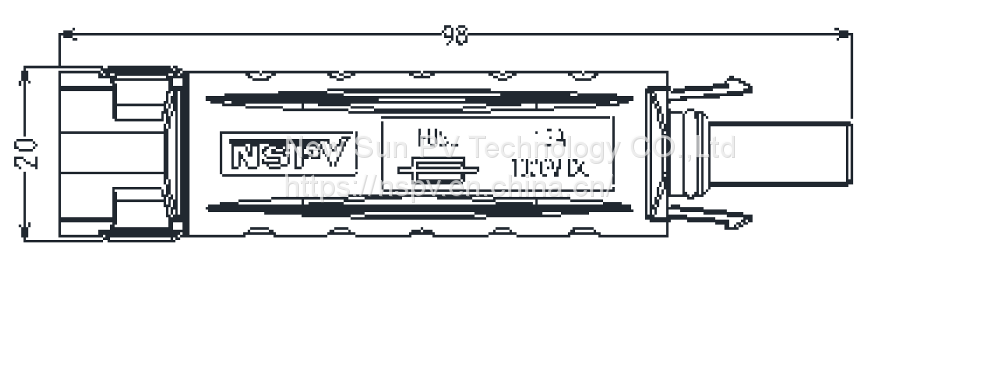

Drawing:
