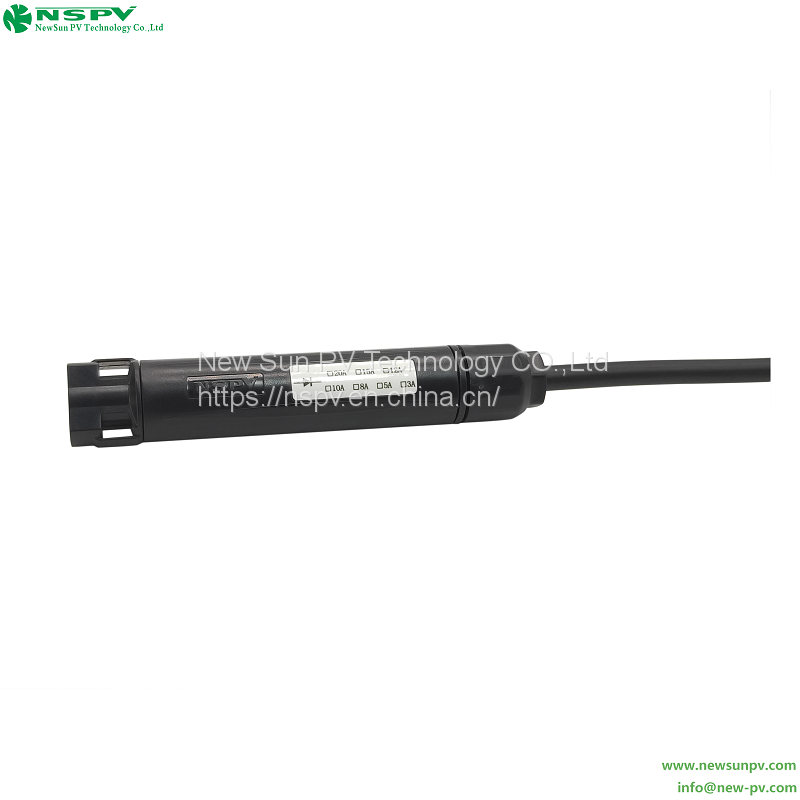

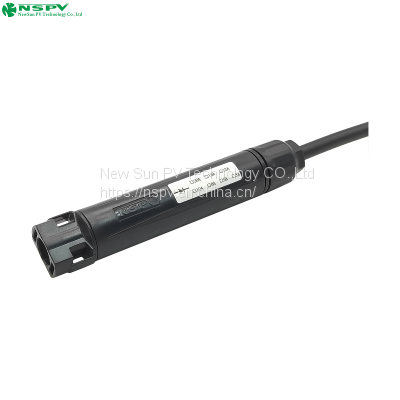

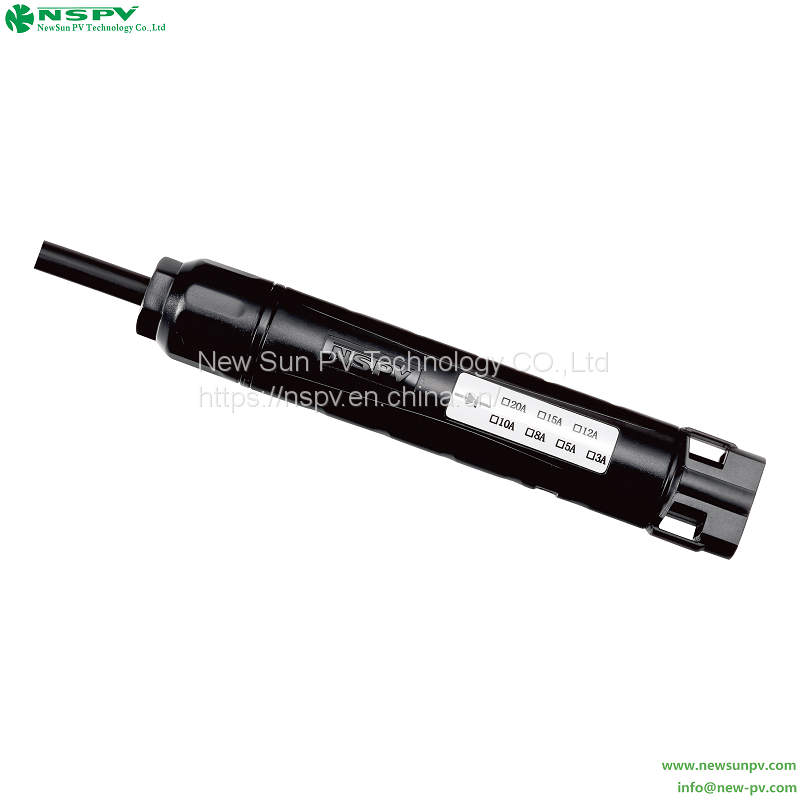

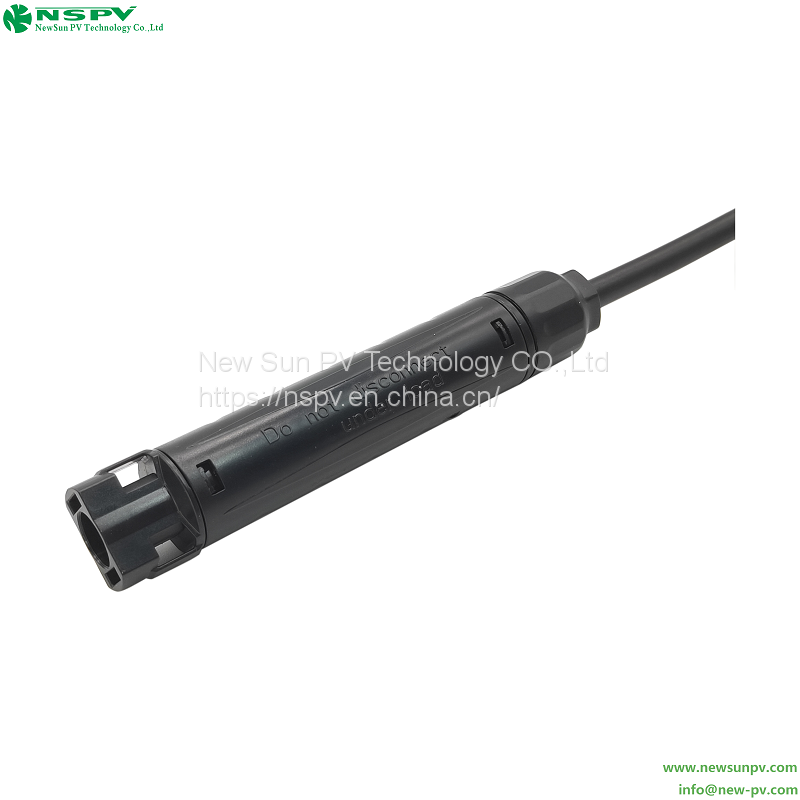

NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector

NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector thumbnail-1
NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector thumbnail-2
NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector thumbnail-3
NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector thumbnail-4
NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector photo-1
NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector photo-2
NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector photo-3
NSPV Solar Waterproof Diode 4D1 Molding Solar Blocking Diode Connector photo-4
US$ 2.8 - 3.2 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Brand Name:
Cable Diode Connector
Place of Origin:
China
Model Number:
4D1
Contact Supplier Request Quote Chat Now
New Sun PV Technology CO.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Cable Diode Connector
Place of Origin China
Model Number 4D1
Essential details

  • Warranty:

  • 2 years

  • Place of Origin:

  • Anhui, China

  • Brand Name:

  • NSPV

  • Model Number:

  • 1000D-1037

  • Product name:

  • 4D1 Solar Diode Connector

  • Insulation material:

  • PPE

  • Pin dimensions:

  • 1.5~10mm

  • Rated voltage:

  • 1000V DC

  • Rated current(Without Diode):

  • 30A

  • Ambient temperature range:

  • -40℃...+85℃(IEC)

  • Degree of protection:

  • IP67

  • Flame class:

  • UL94-V0

  • Wire size range:

  • 1.5~6mmsq(8AWG~16AWG)














Materials
Insulation
PPE
Color
Black
Contact material
Copper


Electrical Data
Rated current
6A-12A
Rated voltage
1000V DC
Contact resistance
≤0.5mΩ
Wire size range
2.5~6mmsq(10AWG~14AWG)


Environmental
Degree of protection
IP67
Standards
TUV
Ambient temperature range
-40°C until +85°C
Material RTI
110°C
Flame class
UL94-V0
Safty class
2
Pin dimensions
4mm


Product Tags: Diode Connector , MC 4Diode connectros , Waterproof Diode
