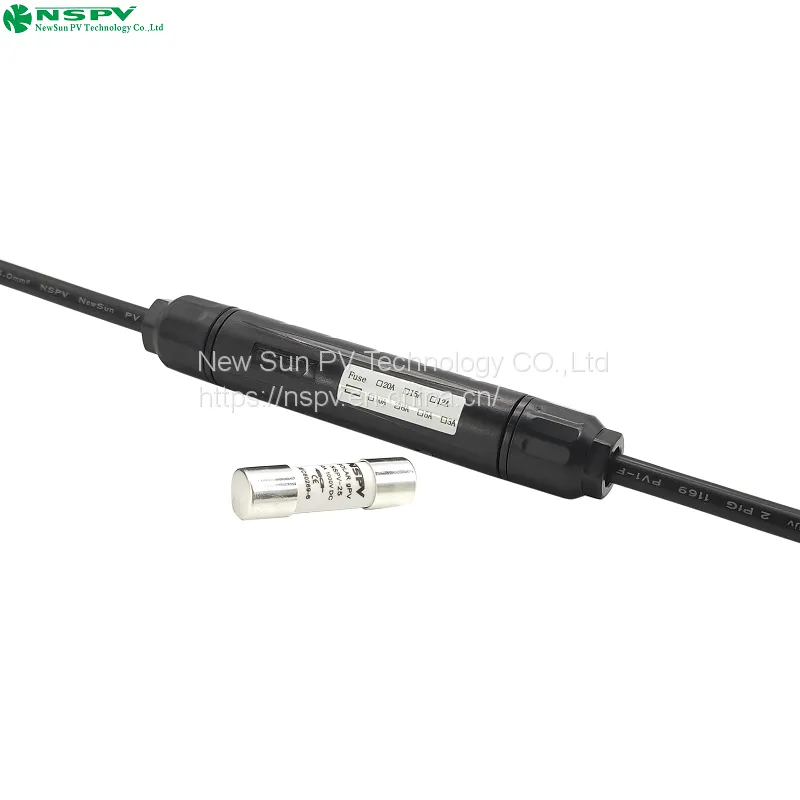

NewSun 4F2 Solar Cable Fuse Connector DC 1000V

Name: NewSun 4F2 Solar Cable Fuse Connector DC 1000V
Brand: fuse connector
Price: $2.7 - 3.2 / Piece

FOB Price

2.7 - 3.2 / Piece

100 Pieces(Min.Order)

Product Details

Brand Name:

fuse connector

Place of Origin:

China

Model Number:

4F2

NewSun 4F2 Solar Cable Fuse Connector DC 1000V

Product Specifications

Insulation material : PPE/PA

Overvoltage category/Pollution degree : CATIII/2

Rated current(Without fuse) : 30A

Safety degree : II

Rated current(With fuse) : 1A,2A,3.5A,4A,5A,8A,10A,12A,15A.20A.25A.30A

Flame dass : UL94-V0

Rated voltage : 1000VDC

Insertion force/Withdrawal forcee : ≤50N/≥50N

Test voltage : 6kV(50Hz,Imin)

Ambient temperature range : -40℃...+85℃(IEC)

Typical contact resistance : ≤0.25 mΩ

Upper limiting temperature : 110℃(IEC)

Contact material : Copper,Tin plated

Connecting system : Crimp connection

Degree of protection : IP67

Nut cap locking force : 1.5-1.8Nm

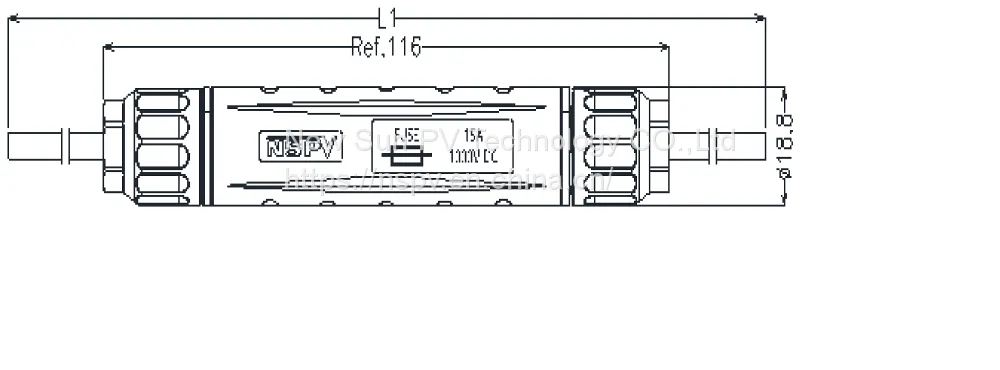

Drawing:

New Sun PV Technology CO.,Ltd: Contact nameApril; AddressChangan Dongguan,Guangdong
