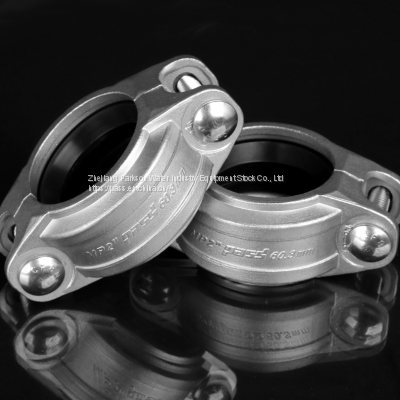

Help Center76M STAINLESS STEEL COUPLING
Related Products
The Model 76M is mainly designed for medium pressure grooved piping systems, such as reverse osmosis systems and cut grooved piping systems with rated working pressure 600 psi ( 42 bar). It is supplied in CF8 (304) or CF8M (316). Its 316 bolts and nuts have excellent anti-corrosion performance and longer service life.
Sizes-Inches/DN
3/4″to 8″（DN20 to DN200）
Rated working pressure:
600 psi (42 bar) , cut groove only
MODEL 76M MATERIAL SPECIFICATIONS
Housings:
Type 304 stainless steel to ASTM A351 CF8 or A743 Gr. CF8
□ Type 316 to ASTM A351 CF8M
□ Type 316L to ASTM A351 CF3M
□ CE8MN to ASTM A 890 Grade 2A
□ Austenic 904L(CN2MCuN) to A351
□ Duplex 2205(CD3MN) to ASTM A890 Grade 4A
□ Super duplex 2507(CE3MN)to ASTM A890 Grade 5A
□ Austenic 254SMO(CK3MCuN) to A743
Rubber Gaskets:
The gasket seals is C-shaped, made of standard gasket EPDM(ethylene propylene diene monomer) for cold water, hot water, dilute acid, oil-free air and multiple chemical product (-30~110℃).It is not suitable for medium like petroleum.
Bolts:
□ Type 304 stainless steel track bolts to ASTM F593
□ Type 316 stainless steel track bolts to ASTM A193
Nuts:
□ Type 304 stainless steel nuts to ASTM F594
□ Type 316 stainless steel nuts to ASTM A194
□ Silicone bronze heavy duty nuts to ASTM B98 C65100 for option
