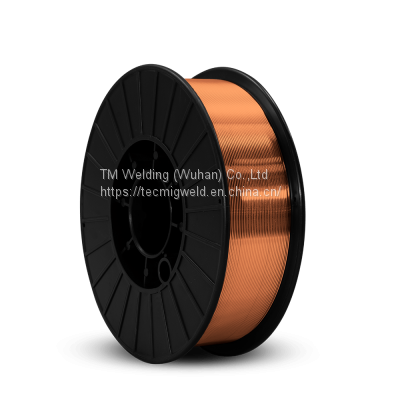

TecMig Gas Shield Mild Steel Mig Welding Wires Tig Rods ER70S-6
- 10000000 Kilogram / Kilograms per Month
- Shanghai, China
- T/T L/C D/P D/A
- 30 days
- TecMig Gas Shield Mild Steel Mig Welding Wires Tig Rods ER80S-D2
- TecMig Gas Shield Mild Steel Mig Welding Wires Tig Rods ER70S-2
- TecMig Gas Shield Mild Steel Mig Welding Wires Tig Rods ER70S-3
- TecMig Gas Shield Mild Steel Mig Welding Wires Tig Rods ER70S-4
- TecMig Cooper Free Non-Cooper Coated Mild Steel Mig Welding Wires ER70S-6
- TecMig Cooper Coated High Tensile Strength Welding Wire ER100S-1
Product Details
Brand Name: | TecMig | Place of Origin: | China | Model Number: | E316LT1-3 |
Material: | Steel Alloy | Diameter: | 1.2-2.0mm | Length: | 300-400mm |
Application: | Arc Welding | Operating Temperature: | 20 | Welding Current: | 100-250A |
Operating Current: | 100-250A |
Product Description
ER70S-6
AWS A5.18 ER70S-6
EN ISO 14341-A : G 42 3 C1/M21 Z 3Si1
Description:
A gas shield copper coated carbon steel welding wire for fabrication of mild steel. It provides excellent usability with stable arc, less spatter, good bead appearance. The weld metal has excellent mechanical performance and less sensitive to pores. Used for carbon steel and alloy steel with 500MPa tensile strength structures welding, and high speed welding of sheet plates and pipelines.
Welding Position:
Diameters:
0.6mm, 0.8mm, 0.9mm,1.0mm,1.2mm,1.4mm, 1.6mm.
Typical Mechanical Properties:
Tensile strength(MPa): | 560 |
Yield strength(MPa): | 470 |
Elongation(%): | 26 |
Impact values(≥27J/-30℃): | 80 |
Typical Chemical Compositon:
C | Mn | P | S | Si | Ni | Cr | Mo | Cu | V |
0.08 | 1.67 | 0.010 | 0.008 | 0.92 | 0.02 | 0.01 | 0.01 | 0.07 | 0.001 |
Welding Current:
Diameter(mm) | 0.8 | 1.0 | 1.2 | 1.6 | |
Current/A | F/H | 50-200 | 80-250 | 100-360 | 170-390 |
Current/A | V/OH | 50-140 | 80-160 | 80-220 | -- |
Note:
1. Rusty, water, oil and other impurity should be cleaned before welding.
2. Shield gas: 100%CO2 or 80%Ar+20% CO2; Gas speed: 15-25L/Min

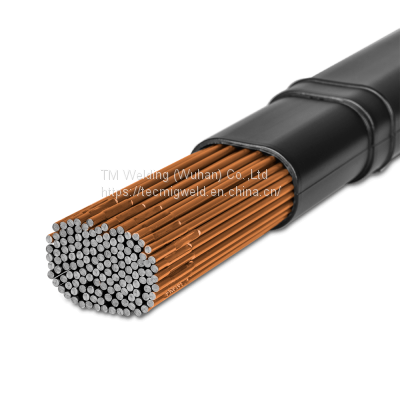

3. Tig rods ER70S-6 1.6mm, 2.0mm, 2.4mm, 3.2mm available
