ASTM G154 Ultraviolet Testing Machine UV Accelerated Aging Test Chamber UV Aging Testing Equipment

ASTM G154 Ultraviolet Testing Machine UV Accelerated Aging Test Chamber UV Aging Testing Equipment photo-1

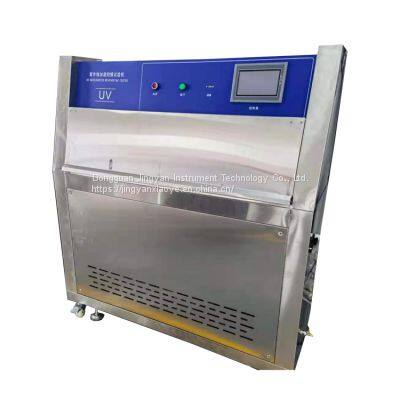

ASTM G154 Ultraviolet Testing Machine UV Accelerated Aging Test Chamber UV Aging Testing Equipment photo-2

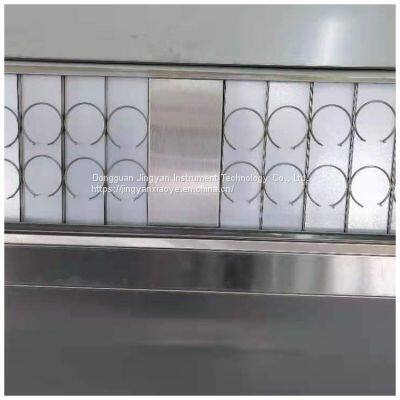

ASTM G154 Ultraviolet Testing Machine UV Accelerated Aging Test Chamber UV Aging Testing Equipment photo-3

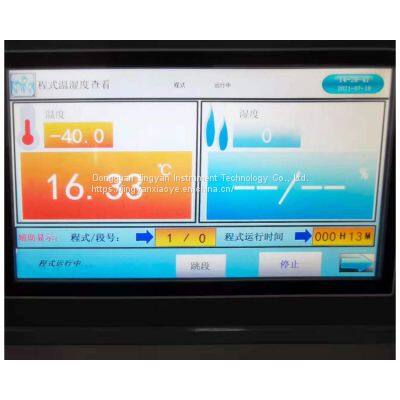

ASTM G154 Ultraviolet Testing Machine UV Accelerated Aging Test Chamber UV Aging Testing Equipment photo-4

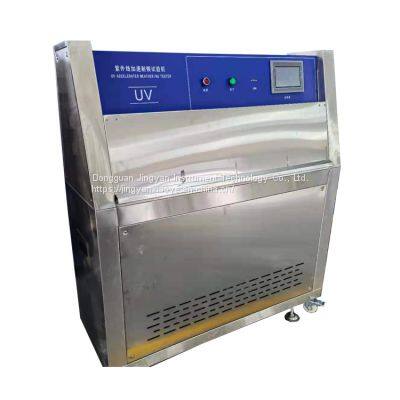

ASTM G154 Ultraviolet Testing Machine UV Accelerated Aging Test Chamber UV Aging Testing Equipment photo-5
US$ 3000 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JINGYAN
Place of Origin:
China
Model Number:
JY-1005B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name JINGYAN
Place of Origin China
Model Number JY-1005B
Power Electronic
Usage Other, UV tester

ASTM G154 Ultraviolet Testing Machine UV Accelerated Aging Test Chamber UV Aging Testing Equipment


Application :

The test chamber can simulate the damage caused by the sun and rain, the use of fluorescent ultraviolet light to simulate the sun, the use of distilled water spray simulation of the effect of rain. The test material is placed in a light cycle at a certain temperature in the cycle of the program. The machine with a few days or weeks to reproduce the outdoor months or years out of the harm.


UV lamp

UVA-340 UV lamp, a total of 8, 40W / only

Wavelength range

315 ~ 400nm

Light source working life

1500h

Temperature range

RT + 10 ℃ ~ 70 ℃

Temperature resolution

0.1 ℃

Temperature uniformity

 ± 3 ℃

Temperature control mode

PID self-tuning temperature control

Humidity range

≥75% RH

Test sample and lamp center distance

25 ~ 45mm

Studio size

660 × 1150 × 600mm (depth × width × height)

Overall dimensions

about (780 x 1380 x 1780) mm

Control system

TEMI880 touch screen, PLC programmable controller



Product Tags: Ultraviolet Testing Machine , UV Accelerated Aging Test Chamber , UV Aging Testing Equipment
