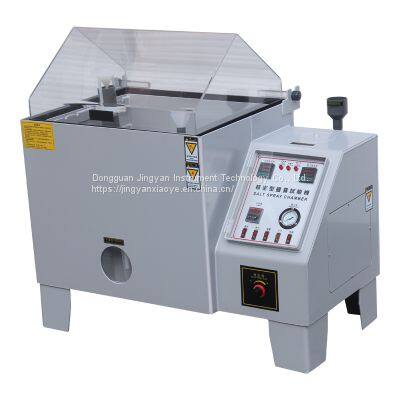

Help CenterElectronic Salt Spray Test Chamber Salt Spray Testing Machine Salt Spray Corrosion Test Chamber
Related Products
-
Factory Sell Humidity Temperature Test Chamber Environmental Climatic Test MachineUS$ 3000 - 5000MOQ: 1 Set -
Laboratory Environmental Test Machine Constant Temperature Humidity ChamberUS$ 3000 - 5000MOQ: 1 Set
-
Lab Automatic UV Aging Test Chamber UV Accelerated Weathering Tester Climate ChamberUS$ 500 - 800MOQ: 1 Set
-
JINGYAN Test Equipment Bottle Leak Tester Packaging Leak Seal Strength TesterUS$ 800 - 1500MOQ: 1 Set
-
JINGYAN Cans Vacuum Sealing Tester Air Leakage Tester Seal Performance Test MachineUS$ 800 - 1500MOQ: 1 Set
Application: The salt spray test machine is used for the surface treatment of various materials, including coatings, electroplating, organic and inorganic coatings, anodizing, anti-rust oil and other anti-corrosion treatments to test its corrosion resistance, thus establishing the quality of the product
Model | JY-60A | JY-90A | JY-120A | JY-200A |

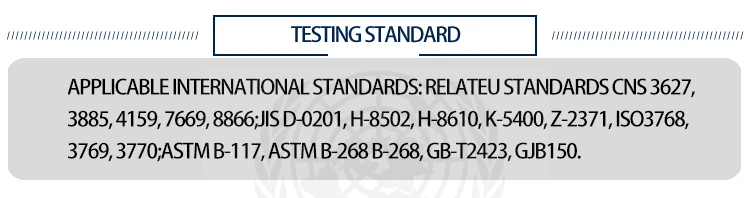

Design Standards | GB/T 10587-2006,GB/T 10125-1997, JISD0201,H8502,H8610,K5400,Z2371 | |||
Test chamber capacity (L) | 108L | 270L | 600L | 1440L |
Temperature | Test chamber | NSS.ACSS 35°C±1°C/CASS 50°C±1°C | ||
Air cylinder | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | |||
Test chamber size LxWxD(cm) | 60*45*40
| 90*60*50
| 120*100*50
| 200*120*60
|
Max volum of test liquid (L) | 15 | 25 | 40 | 40 |
Volume LxWxD(cm) | 107*60*118 | 141*88*128 | 190*130*140 | 270*150*150 |
Power | AC220V,10A | AC220V,15A | AC220V,30A | AC220V,30A |
Spray quantity | 1.0~2.0ml/80cm2/h | |||
PH | 6.5~7.2 3.0~3.2 | |||
