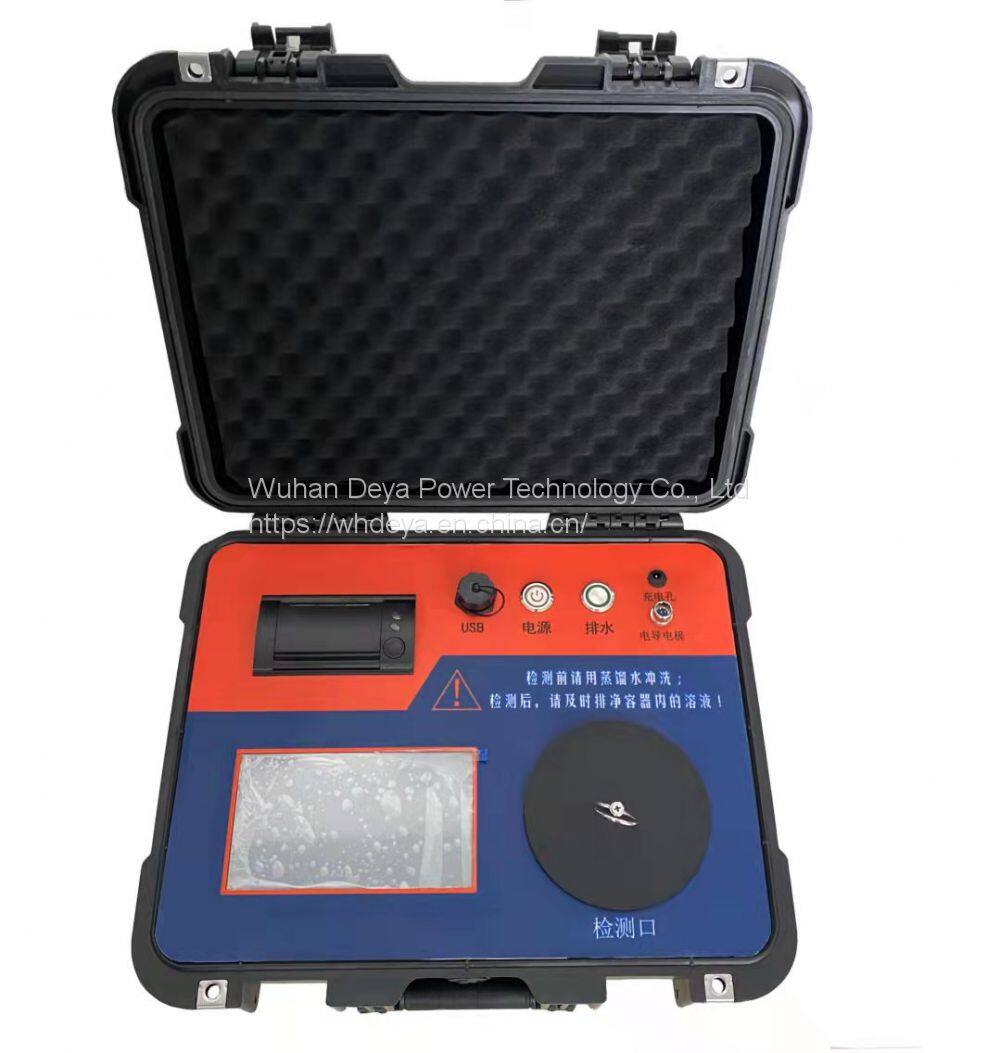

Help CenterInsulator Salt Ash Tightness Integrated Tester DYYH-330
Related Products
-
Wireless Insulator Distribution Voltage Tester DYJY-WXUS$ 846 - 917MOQ: 1 Set -
Zero Value Insulator Tester DYJY-18US$ 559 - 628MOQ: 1 Set
-
Complete Set of Ash Density Measuring Device DYHM-402US$ 2347 - 2400MOQ: 1 Set
-
Insulator Salt Tightness Tester DYYM-30US$ 1383 - 1500MOQ: 1 Set
-
Three Phase Multi-function Standard Source DYDL-IIIUS$ 9500 - 9600MOQ: 1 Set
1、Product Overview
DYYH-330 Insulator Salt Ash Integrated Tester is used to detect the pollution adhesion of insulators in power lines. The instrument can measure the insulator salt density and ash density at one time, simplifying the process of insulator pollution detection, and is very suitable for on-site inspection and laboratory use. The pollution degree of insulators in power lines is mainly characterized by the salt density (ESDD) and ash density (NSDD). The instrument has the function of measuring salt density and ash density at the same time. The common solution volume and insulator model are built in, which is convenient for users to call directly. The insulator model and surface area can be customized by users. The data saving function is added, which can save 100,000 groups of test data. The machine can view the data and support U disk to export the data, which is convenient for users to save and view on the computer.
2、technical parameter
project | Range |
Ash density test range | 0—9.9999mg/cm2 |
Salt density test range | 0—9.9999mg/cm2 |
Error range of ash density | ±3% |
Error range of salt density | ±1% |
display | 7-inch high-definition touch screen |
supply voltage | 12.6V 6000mAh lithium battery |
ambient temperature | 0—40℃ |
relative humidity | ≤85% |
Overall dimensions | 407*342*193mm |
Instrument weight | 4.6Kg |
