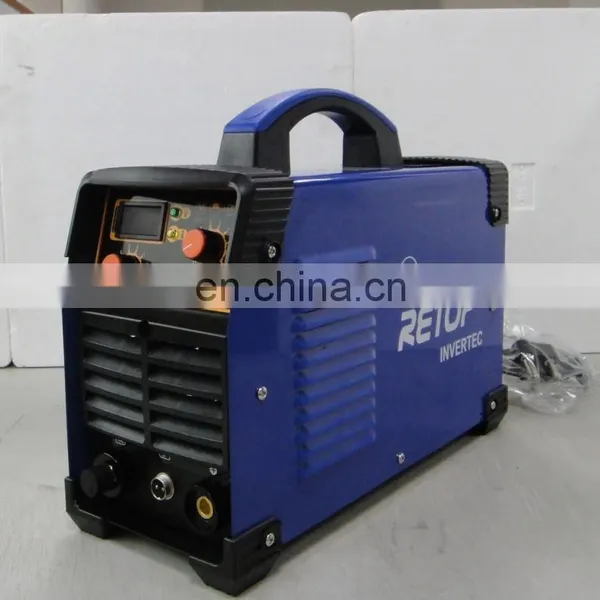

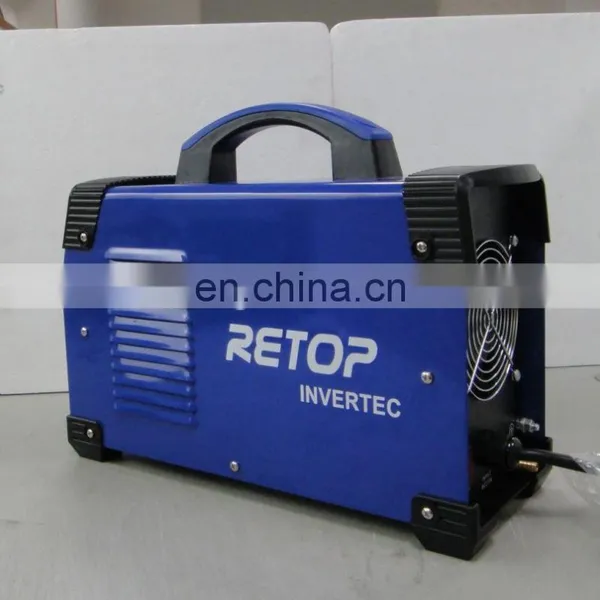

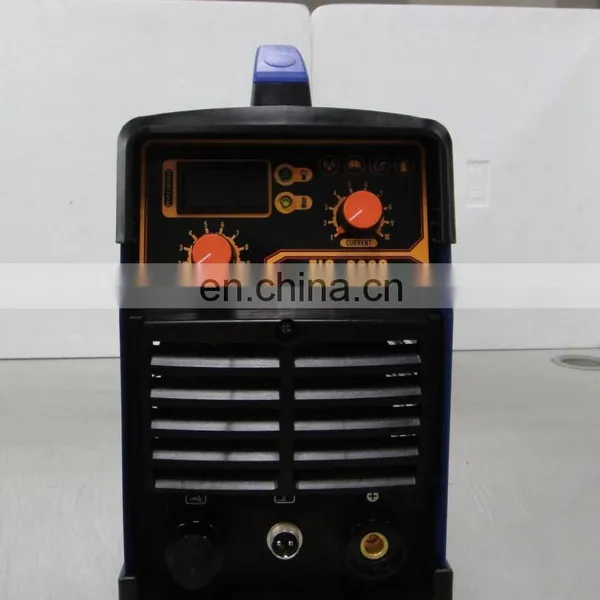

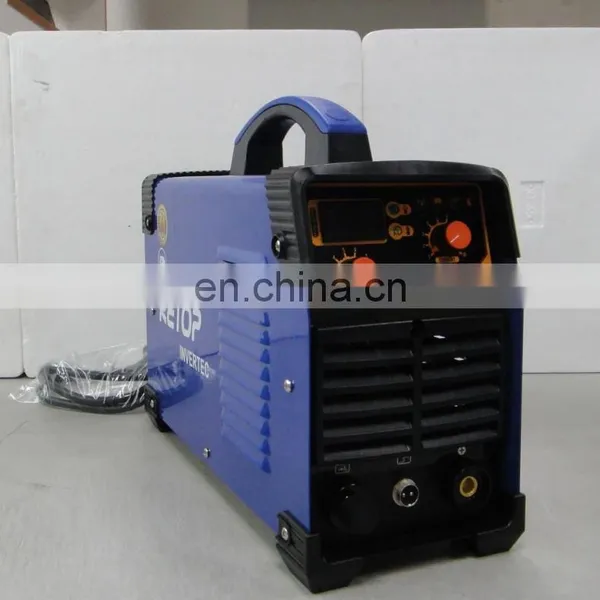

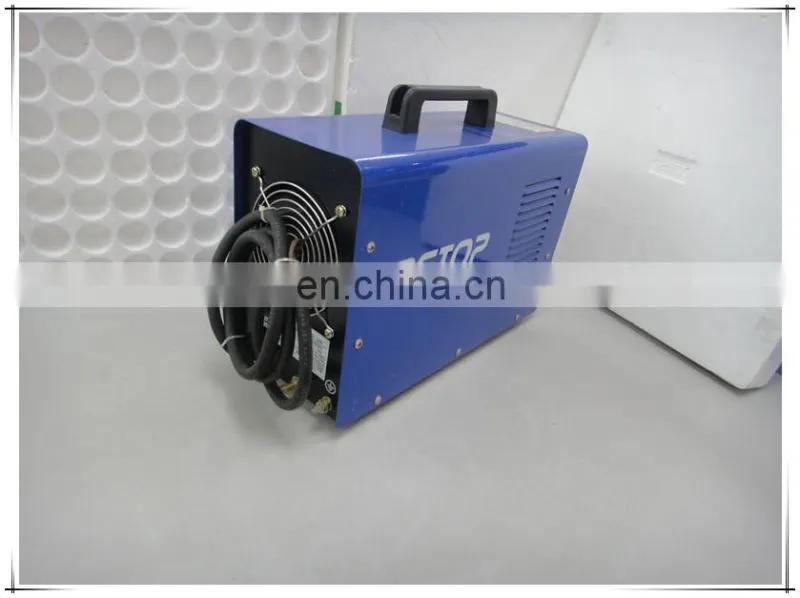

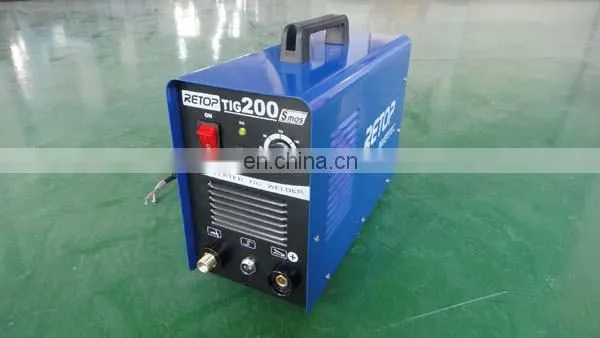

Automatic tig 200a welding machine MOSFET power TIG-200S
Retop Hot Products
CB-40 MMA-160SI MIG-185A TIG-200A
Or please click here for more TIG welder models
Pictures
Spare parts
Packing
Features
(1)Apply MOSFET switching power supply and PWM technology,energy-efficient and low noise.
(2)Post-flow setting provides optimum shielding on welding amperage without waste.
(3)HF start circuit ensure high success rate in arc striking.
(4)Automatic over-voltage and over-current protection as well as temperature shutdown function.
(5)Smooth arc and stable welding performance; Ideal for welding mild steel, stainless steel,copper and titanium,etc.
(6)Rugged package and compact design makes it easy to take TIG welding capability where it’s needed.
(7)Supplied complete with TIG torch, earth clamp, welding cable, face mask and welding brush.
Technical Specifications
|
ITEM |
UNIT |
TIG-160S |
TIG-180S |
TIG-200S |
TIG-250S |
|
Input power voltage |
V |
AC230V |
AC230V |
AC230V |
AC230V |
|
Input power frequency |
HZ |
50/60 |
50/60 |
50/60 |
50/60 |
|
Rated input capacity |
KVA |
3.3 |
3.9 |
4.6 |
6.8 |
|
Output current range(TIG) |
A |
140 |
160 |
180 |
240 |
|
No-load voltage |
V |
42 |
42 |
42 |
42 |
|
Arc start |
|
HF |
HF |
HF |
HF |
|
Power factor |
cosΦ |
0.93 |
0.93 |
0.93 |
0.93 |
|
Rated duty cycle |
% |
60 |
60 |
60 |
60 |
|
Protection Grade |
|
IP21S |
IP21S |
IP21S |
IP21S |
|
Dimensions |
mm |
371x155x295 |
371x155x295 |
371x155x295 |
500x210x360 |
|
Weight |
kg |
7.5 |
7.8 |
8.0 |
13.5 |
