Top 10 Welding Machine Manufactures CT-520 Low Price Multi Process Hand Held Welding Machine

Main Features
1) MOSFET inverter PWM technology,energy-efficient,power frequency and no noise.
2) MMA/TIG/CUT function in one compact machine.Multi-functional,economical and pratical.
3) Ingenious circuit design,simple structure,safe and reliable.
4) Small and light,easy to carry around and to intall.
5) Automatic high temperature shutdown.
6) Mainly used in metal material processing,such as carbon steel, stainless steel,alloy steel,copper,and aluminum,etc.

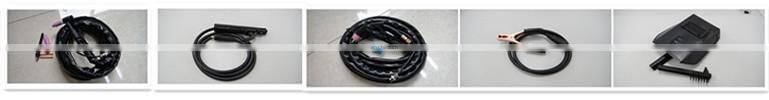

7)Supplied complete with sitck electrode holder,TIG torch,CUT torch,air regulator,pressure gauge,earth clamp,welding cable,face mask and welding brush.
ITEM | UNIT | CT-312 | CT-416 | CT-520 |
Input power voltage | V | AC230V | AC230V | AC230V |
Input power frequency | KVA | 3.5 | 4.5 | 5.5 |
Rated input capacity | Hz | 50/60 | 50/60 | 50/60 |
Output power current( MMA) | A | 10-110 | 10-140 | 10-160 |
Output power current(TIG) | A | 10-120 | 10-160 | 10-190 |
Output power current( CUT) | A | 10-30 | 10-40 | 10-50 |
No-load voltage | V | 230 | 240 | 240 |
Rated duty cycle | % | 60 | 60 | 60 |
Arc start | HF | HF | HF | |
Power factor | cos | 0.93 | 0.93 | 0.93 |
Air pressure | mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Protection grade | IP21S | IP21S | IP21S | |
Dimensions | mm | 410*155*300 | 460*210*360 | 510*210*360 |
Weight | KG | 8.6 | 12.7 | 17.8 |


CT-312

CT-416

MMA-200PI




Taizhou Retop Mechanical & Electrical Co., Ltd. was established in 2011 and is located in Wenling, Zhejiang Province. We are dedicated to designing, testing and manufacturing a full line of welding and cutting products that are with industrial quality and easy to use. Whether you're in production, farming, maintenance, auto repair, or a do-it-yourselfer, we have a product that fits your needs.
With advanced technology and manufacturing equipment, we provide high-quality products and superior services for our customers. We also offer customers the flexibilities in product design and construction, coupled with superior services before and after sale. With our dedicated commitment to customer services, you'll find that we're easy to contact, easy to work with and easy to get information from - we're here to help you.
Our passion is to improve existing products and to develop new applications that benefit our customers and meet their constantly changing needs. We continue to make progress by implementing a philosophy that stresses quality in all of our operations.
We hope you will stay a while at our website. Please view our product offerings and get acquainted with us.
Main products:AC Welder,DC Inverter Welder,Tig Welder,Mig Welder,Plasma Cutter,Battery Charger
Main market: Domestic Market, Eastern Europe, Southeast Asia, South Asia, Mid East...
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Wenling, Taizhou city, Zhejiang Province, China.30 mins from Luqiao Airport by car, 2.5 hours from Ningbo Airport by car, 4 hours from Shanghai Airport by car.
3.Q:What is the material of your products?
A: Taizhou Retop people are always paying great attentions to quality controlling from the beginning to the end.
4.Q:How about quality control in your factory?
A: Taizhou Retop people are always paying great attentions to quality controlling from the beginning to the end.
5.Q:How about guarantee?
A: It's within 1 year after goods is discharged in the destination.
