Home > Computer Products > Industrial Computer & Accessories > Industrial Computer > CPCI Backplane in Slot 3U4

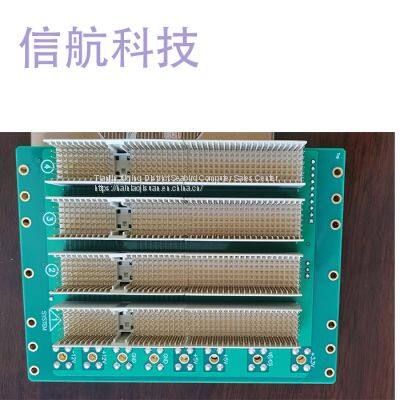

CPCI Backplane in Slot 3U4
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
tianjin
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
3U CPCI backplane in slot 4
Supports the 33MHz/66MHz 32bit CPCI bus
One system slot and three function slots. The system slot is located on the right of the backplane
Three power supply modes are available: CPCI power supply, ATX power supply, and terminal power supply. Choose one of three. Do not use both
Two fan power ports, reset port, CPCI and ATX switch port
Support +5V/+3.3V V (I/O). The default value is +5V
Terminals: +5V, +3.3V, +12V, -12V, GND. 1 cpci power interface, 1 ATX power interface;
The maximum voltage drop of the backplane power supply is less than 20mV
Characteristic impedance: 65±10%ohm
Overall dimensions of the board: 128.7mm×113mm×3.2mm (width × length × thickness)
Operating temperature: 0℃ ~ +70℃
Support for hot swap
