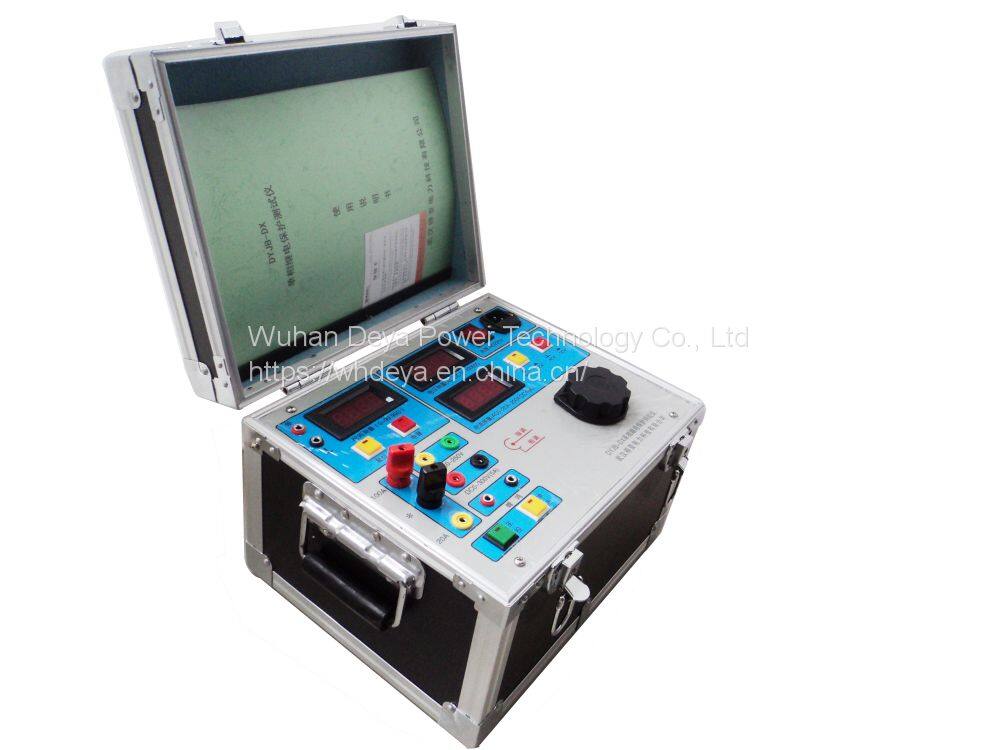

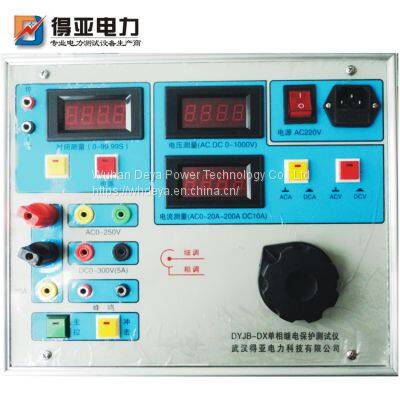

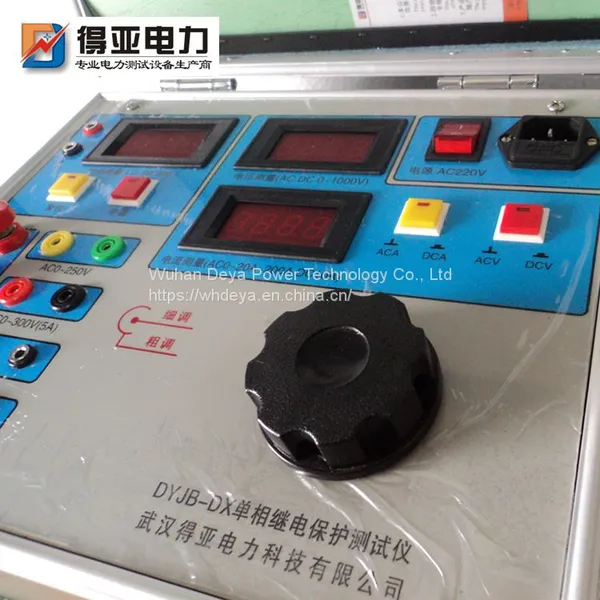

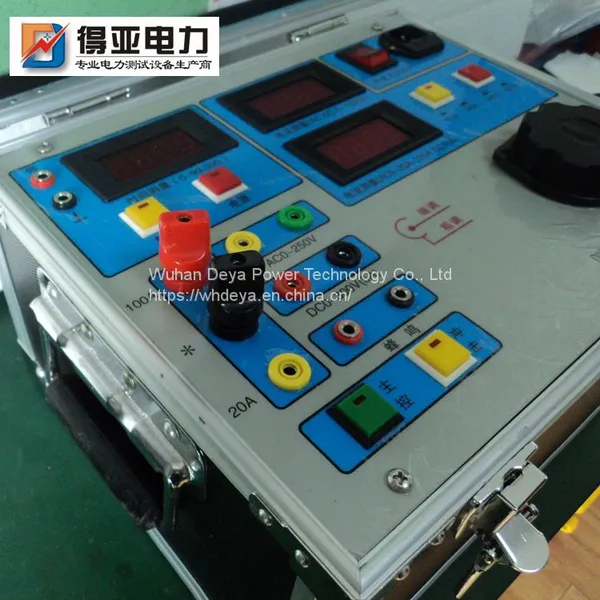

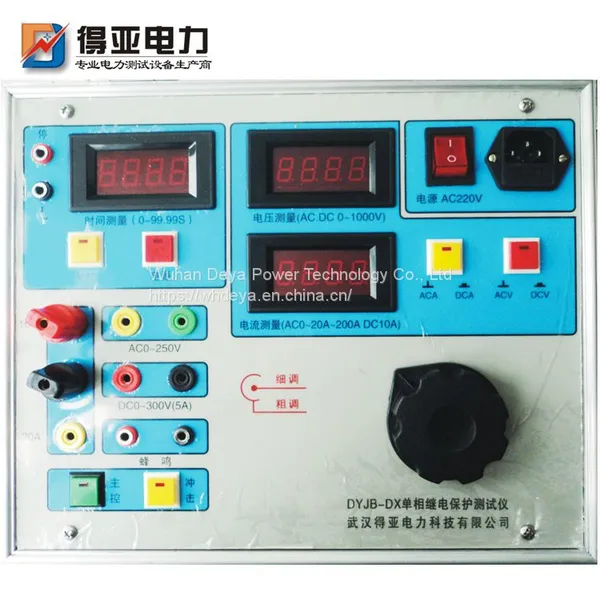

Single Phase Relay Protection Tester DYJB-DX
US$ 917 - 959
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Deya Power
Place of Origin:
China
Model Number:
DYJB-DX
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
7 days
Related Products
-
Three Phase Capacitance Inductance Tester DYDR-IIIUS$ 1411 - 1665MOQ: 1 Set -
Transformer Volt Ampere Characteristic Comprehensive Tester DYFA-VUS$ 1806 - 2229MOQ: 1 Set
-
Six Phase Relay Protection Comprehensive Tester DYJB-603US$ 4232 - 4514MOQ: 1 Set
-
Portable Relay Protection Tester DYJB-802SUS$ 3527 - 3950MOQ: 1 Set
-
Three Phase Thermal Relay Calibrator DYJR-25US$ 1340 - 1397MOQ: 1 Set
Brand Name
Deya Power
Place of Origin
China
Model Number
DYJB-DX
1、 Product characteristics:
1. It can output ACA, ACV, DCA and DCV.
2. Fully monitor DCV, DCA, ACV and ACA.
3. It has the function of buzzer for contact connection.
4. All digital displays are convenient for night use.
5. Aluminum alloy shell is small, portable and easy to carry.
2、 Technical parameters:
1. Rated input: AC220V ± 10% 50HZ 1KVA
2. Rated output:
AC: AC0-250V AC0-20A AC0-100A
DC: DC0-300V DC0-5A (10A temporarily)
3. Measuring range
(1) Current 0 ～ 20A 0 ～ 200A DC0 ～ 20A
(2) Voltage AC0 ～ 1000V DC0 ～ 1000V
(3) Time 0~99.99s, automatically judge the state of normally open and normally closed contacts
4. It has the function of light buzzer prompt for contact connection, which is convenient for monitoring contact on-off status.
5. Weight: 12KG
