Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > Genuine 3:1 Hangzhou Advance or FADA Marine Gearbox 135 for Boat

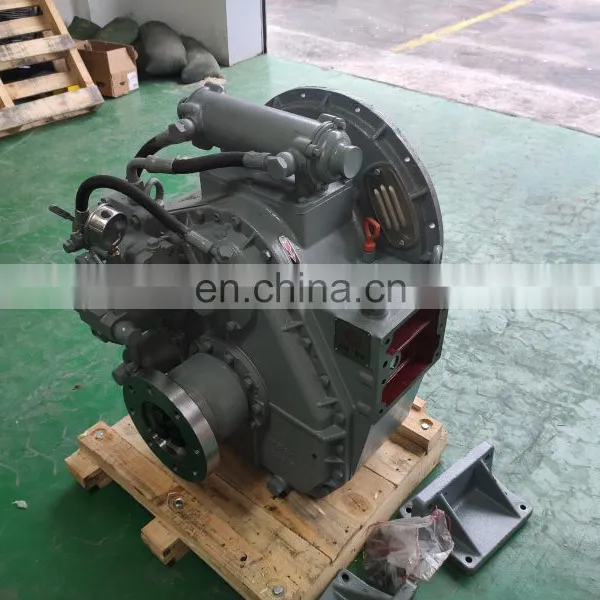

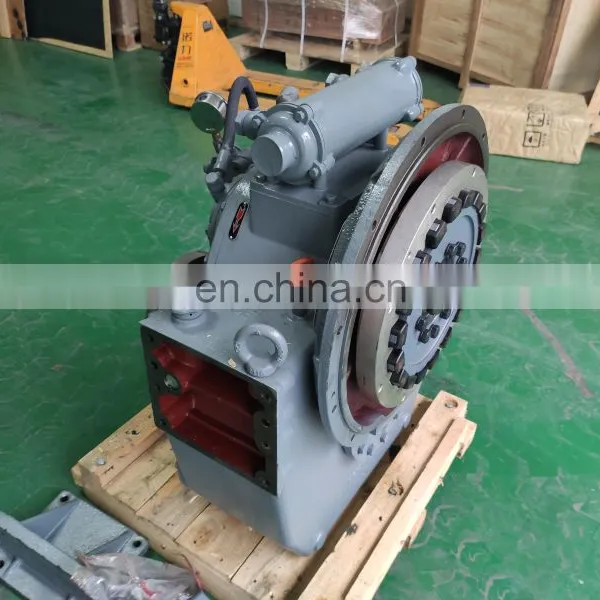

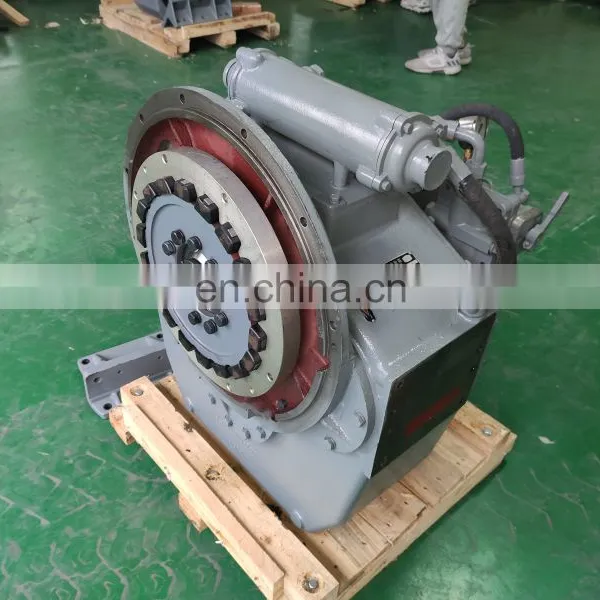

Genuine 3:1 Hangzhou Advance or FADA Marine Gearbox 135 for Boat
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Original Hangzhou Advance Marine Gearbox 300 Ratio 3:1 for BoatNegotiableMOQ: 1 -
Original Advance D300A Boat Gearbox Boat Transmission Reduction Ratio 5.05:1NegotiableMOQ: 1
-
Hangzhou Advance and FADA Brand Marine Gearbox T300 Reduction Ratio 5.51:1 for TugboatNegotiableMOQ: 1
-
Original Advance Marine Gearbox HCD600ANegotiableMOQ: 1
-
Brand New HCD800 Advance Marine GearboxNegotiableMOQ: 1
Product Overview
Genuine 3:1 Hangzhou Advance or FADA Marine Gearbox 135 for boat
Advance marine products include marine gearboxes, hydraulic clutches, clutch gearboxes, and adjustable pitch propellers, fixed propellers, side thrusters, azimuth thrusters and other products, which are widely used in fishing vessels, transport ships, engineering ships, special ships, Ocean-going high-power ships and other types of ships, the products have been approved by China CCS, French BV, German GL, British LR, American ABS, Japanese NK, Norwegian DNV, Russian RS, Korean KR and other classification societies. The company's marine gearbox R&D and manufacturing capabilities are at the leading level in China, and it is responsible for drafting JB/T9746.1-2011 "Marine Gearbox Technical Conditions", CB/T 3003-2011 "Marine Medium Speed Diesel Engine Gearbox" and other national and industry standards 5 items, complete product series spectrum, transmission power range covering 10KW～10000KW, among which GW series high-power marine gearbox and tilt-drive yacht gearbox have reached the international advanced level.
Product name |
Genuine 3:1 Hangzhou Advance or FADA Marine Gearbox 135 for boat |
Ratio |
2.03,2.59,3.04,3.62,4.11,4.65,5.06,5.47,5.81 |
Rated propeller thrust |
29.4KN |
Engine speed range(input speed) |
750-2000RPM |
Suitable engines power |
100-280HP |
Gross Weight |
470KGS |
Dimension L*W*H MM |
578*744*830MM |
Application |
marine, boat |
Warranty |
12 months or 1500 hours which comes first |
Package |
1. Neutral Packing 2, As customer requirement |
Delivery |
By sea, by air, by express |
Futures |
1 , More rugged and reliable 2 , High torque output hence pulling power is high 3 , Gears are tall 4 , Fuel efficiency is high 5 , Service requirement is less frequent |
Ratio (i) |
2.03,2.59,3.04,3.62,4.11 |
4.65 |
5.06 |
5.47 |
5.81 |
Trans. capacity(kw/rpm) |
0.100 |
0.093 |
0.088 |
0.077 |
0.070 |
