Original Air Cooled 2 Cylinders 4 Stroke SCDC Diesel Engine R2V88

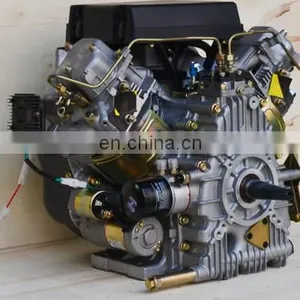

Original Air Cooled 2 Cylinders 4 Stroke SCDC Diesel Engine R2V88 thumbnail-1
Original Air Cooled 2 Cylinders 4 Stroke SCDC Diesel Engine R2V88 thumbnail-2
Original Air Cooled 2 Cylinders 4 Stroke SCDC Diesel Engine R2V88 photo-1

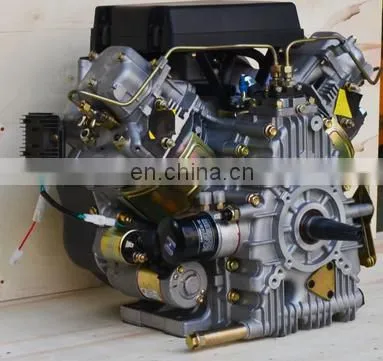

Original Air Cooled 2 Cylinders 4 Stroke SCDC Diesel Engine R2V88 photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Promotion
Product Description

original air cooled 2 cylinders 4 stroke SCDC diesel engine R2V88

The diesel engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.












engine
Model
R2V88
Type
2 cylinders, V type , 4 stroke ,air cooled
Rated power (KW)
14
13
Rated HP (HP)
17.68
19.04
RPM (r/min)
3000
3600
Max torque(N.m/r/min)
45/2600
45/2600
Bore ×stroke (mm )
80*79
Displacement (ml)
870
Start method
Electronical
Oil volume (L)
2.7
Fuel consumption (g/kW.h)
≤ 275
≤ 285
 weight (KG)
59
Dimension (L x W x H) (mm)
550*391*459
Delivery
By sea,by air,by express
Package
1. Neutral Packing 2,As customer requirement
Futures
1,More rugged and reliable 2 , High torque output hence pulling power is high 3 , Gears are tall 4 , Fuel efficiency is high
