Product Description

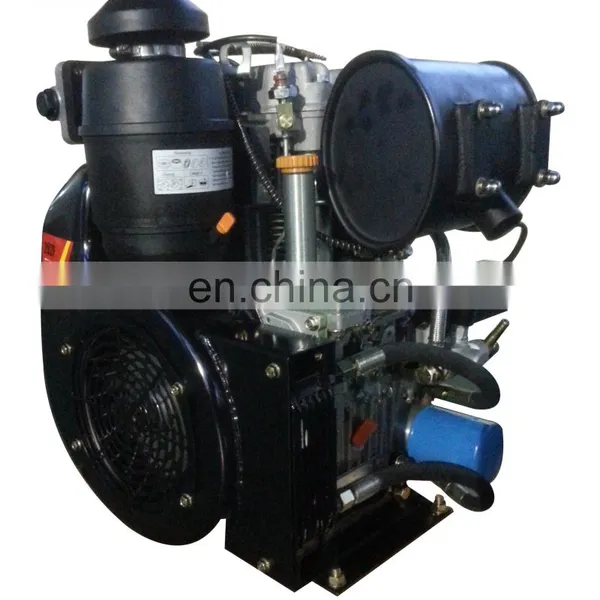

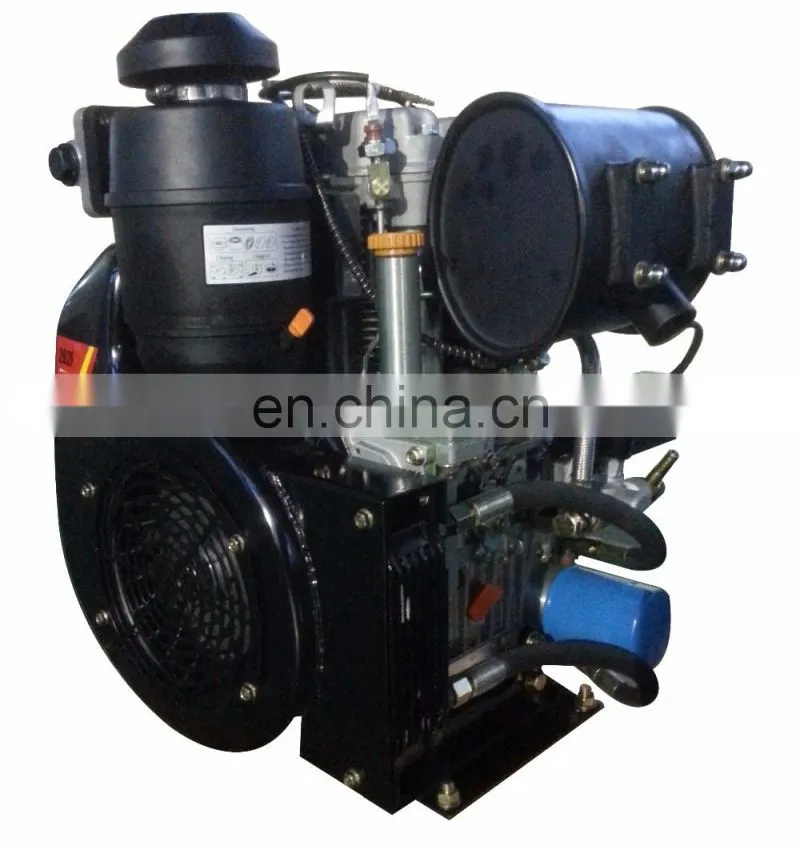

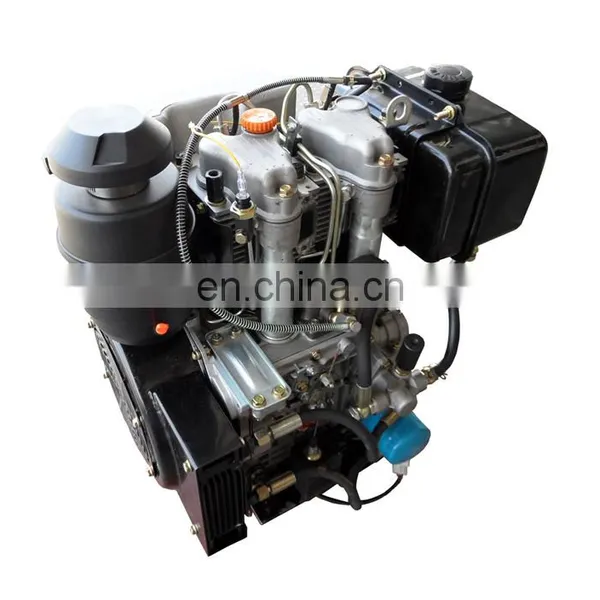

High quality air cooled 2 cylinders 4 stroke SCDC diesel engine R292

The diesel engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.











engine
Model
R292
Type
2 cylinders, V type , 4 stroke , Air cooled
Rated power (KW)
14.5
16
Rated HP (HP)
19.72
21.76
RPM (r/min)
3200
3600
Max torque(N.m/r/min)
50/2400
52/2400
Bore ×stroke (mm )
92*75
Displacement (ml)
997
Oil volume (L)
2.5
Start method
Electronical
Noise(7 meters )(dB)
≤ 86
 weight (KG)
78
Dimension (L x W x H) (mm)
582*461*587
Delivery
By sea,by air,by express
Package
1. Neutral Packing 2,As customer requirement
Futures
1,More rugged and reliable 2 , High torque output hence pulling power is high 3 , Gears are tall 4 , Fuel efficiency is high
