Product Overview

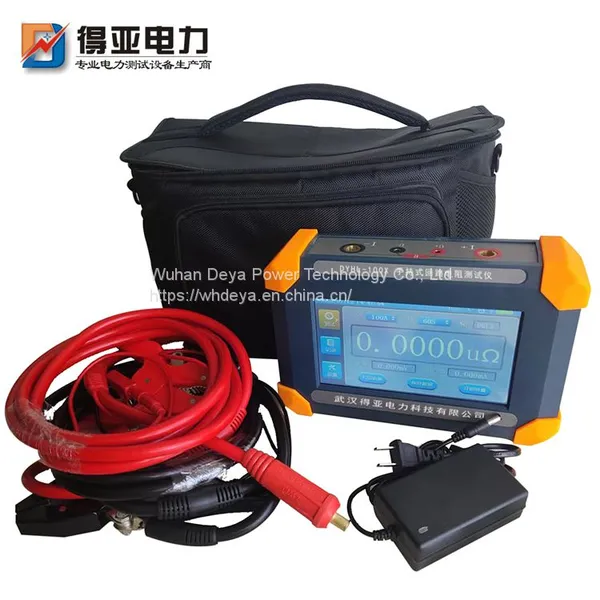

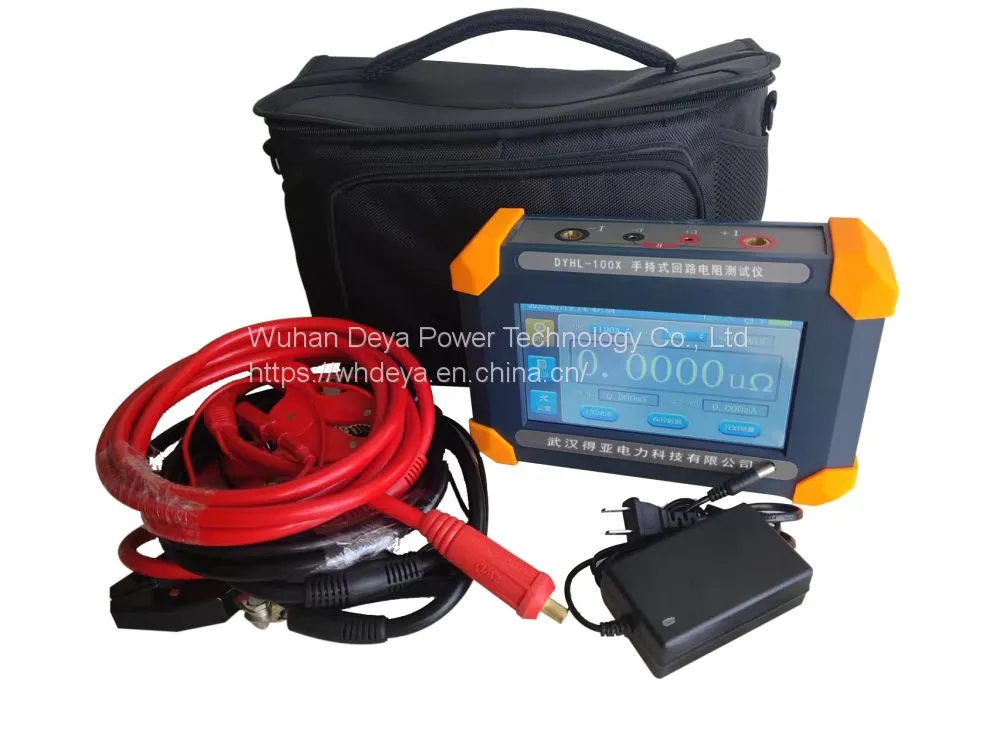

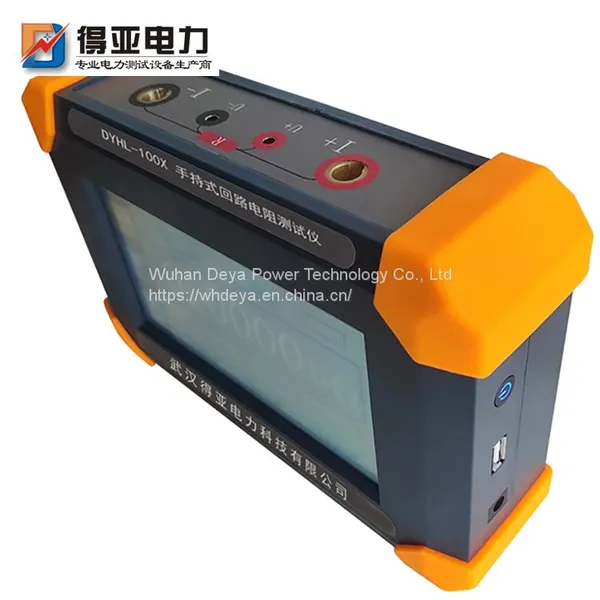

DYHL-100X hand-held circuit tester (hereinafter referred to as the instrument) is powered by lithium battery with high capacity and large rate, small in design, portable in operation and easy to carry. It is mainly used to measure the contact resistance, loop resistance and other micro ohm resistance of switches, circuit breakers, transformers and other equipment.
Functional features

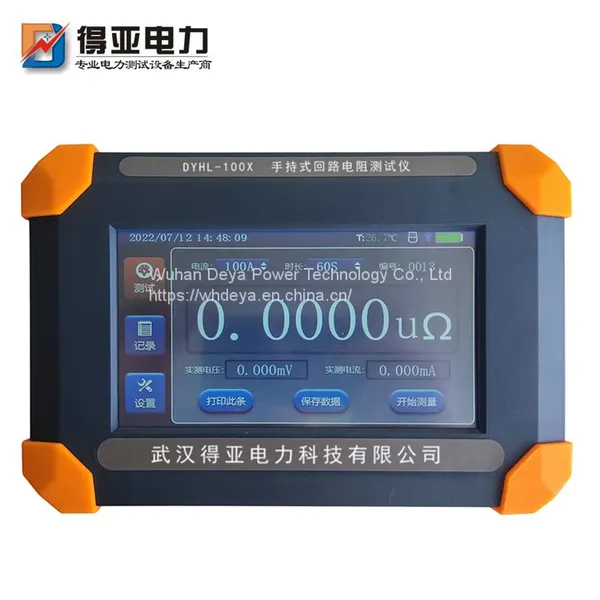

1. 7-inch full-color high-definition touch screen;
2. Large output current, wide test range, multiple current options, maximum 100A current output;
3. The maximum test time of the full gear can reach 60 seconds, meeting the national standard requirements and the on-site use;
4. The measuring range is wide (30A measuring range can reach 50m Ω), the high resolution of 0.1u Ω, and the accuracy within 2m Ω can reach 0.5% FS;
5. It has perfect protection functions such as open circuit protection and overheat protection;
6. With test data storage function, 1000 test data can be saved;
7. Powered by high-capacity lithium battery, it can be used for more than 600 tests (1s test duration) after one charge;
8. With power management function, it can effectively reduce the internal heat of the instrument and improve its service life.
9. With Bluetooth function, you can configure a Bluetooth printer (optional).
Technical indicators
1. Measuring range:
Output current measuring range
100A 0~2mΩ
80A 0~8mΩ
50A 0~20mΩ
30A 0~50mΩ
2. Output current: 30A, 50A, 80A, 100A optional
3. Test time: 1s, 5s, 10s, 30s, 60s optional
4. Resolution: 0.1u Ω
5. Precision: 0.5% FS ± 1u Ω
6. Maximum power: 250W
7. Charging voltage: DC12.6V
8. Test times: more than 600 times (full power, test time 1s)
9. Test line: resistance ≈ 10m Ω
