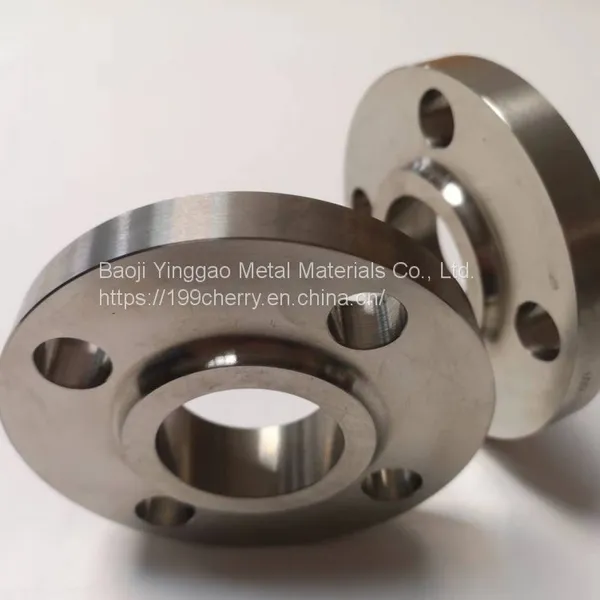

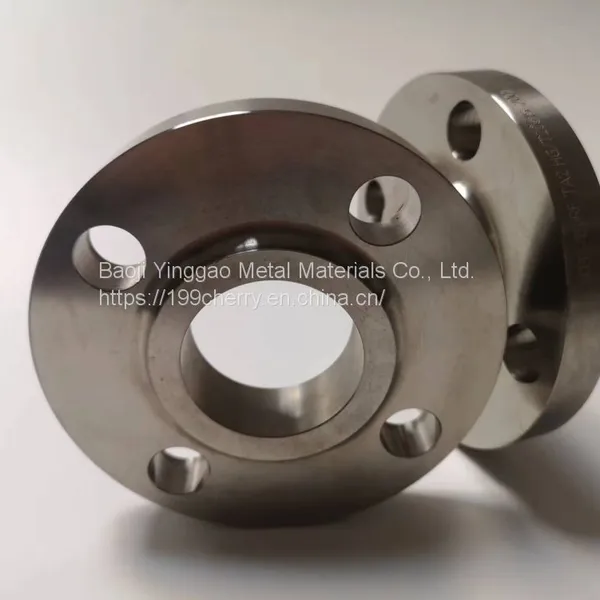

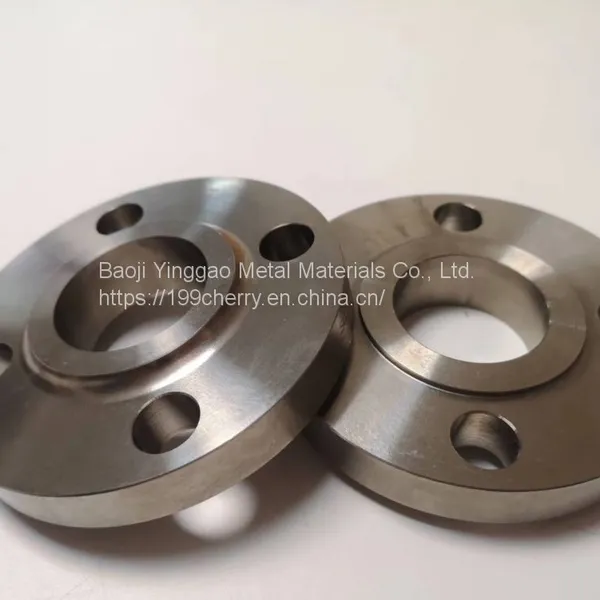

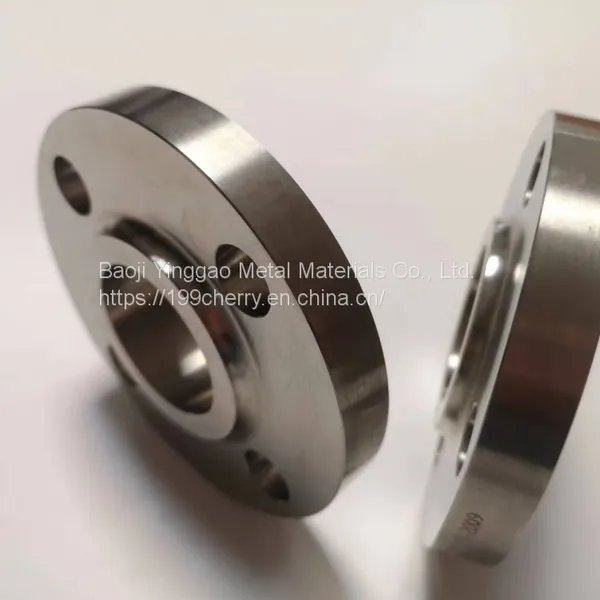

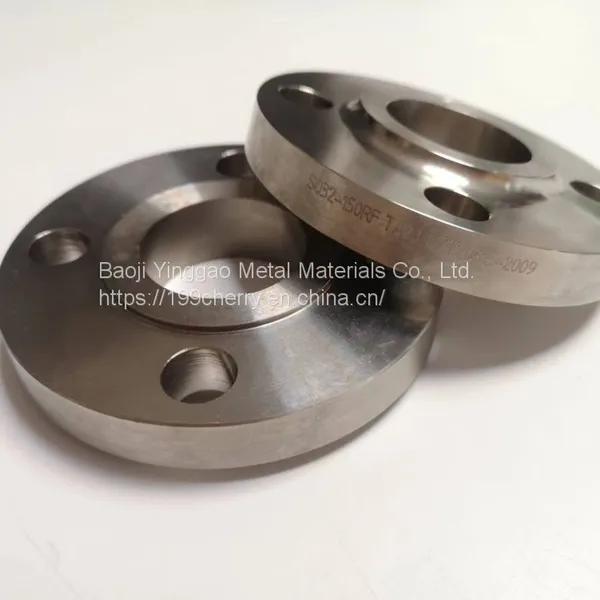

TITANIUM FLANGES are made of non-ferrous metal titanium or titanium alloys. And they are a kind of accessory which make the pipe and pipe connected to each other.
There are holes in titanium flanges and bolts make two titanium flanges connected to each other. Titanium flanges can be made by casting, threaded connection or welding. Flange joint includes a pair of titanium flanges, a gasket, a number of bolts and nuts. The gasket is put between the contact surfaces of two titanium flange. After the bolts are tightened,the specific pressure on gasket are up to a certain value, then the gasket are out of shape and fill in contacting surface of two titanium flanges in order to seal flange joint closely.
Titanium flange is used for small diameter pipelines. It mainly refers to the form of two pipes, fittings and fixtures connected through this connection. It is used in many places .
Parameters
Brand: TopTiTech
Origin: Baoji, China
Standard：ASME B16.5,GB/T9112-9124, DIN ,JIS Or As your requried
Surface：Forging，rolling, turing, polishing
Material :Titanium
Types
PL |
SO |
WN |
Th |
BL |
SW |
LJ |
WRL |
SF |
Plain Flange |
Slip On Flange |
Welding Neck Flange |
Threaded Flange |
Blind Flange |
Socket Welding Flange |
Lap Joint Flange |
Welding Ring Loose Flange |
Screwed Flange |
Applications
Petroleum
Chemical
shipbuilding
Machinery
Metallurgy
Advantages of titanium flange :
1. Low density and high strength;
2. Excellent corrosion resistance;
3. Good resistance to the effect of heat;
4. Excellent bearing to cryogenic property;
5. Nonmagnetic and non-toxic;
6. Good thermal properties.
