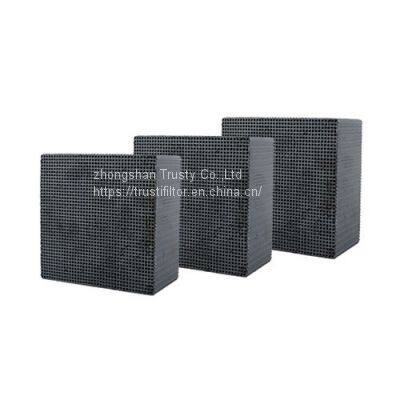

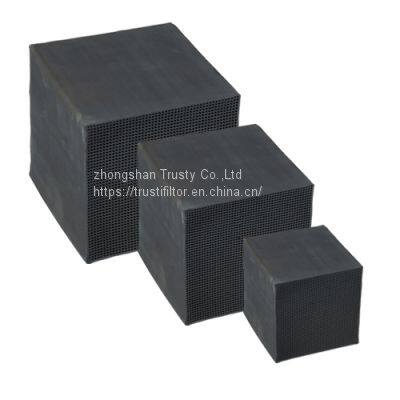

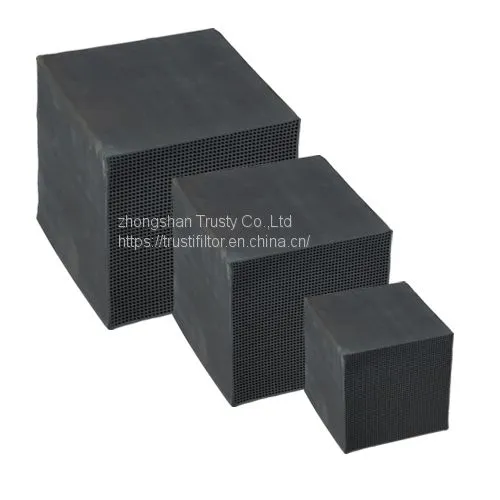

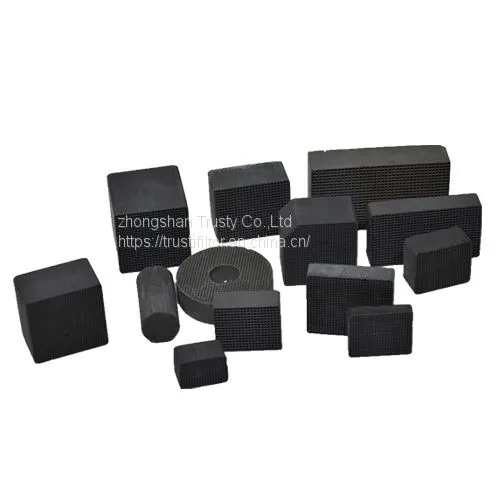

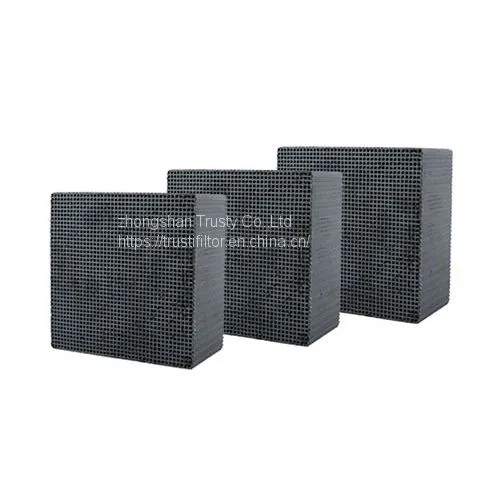

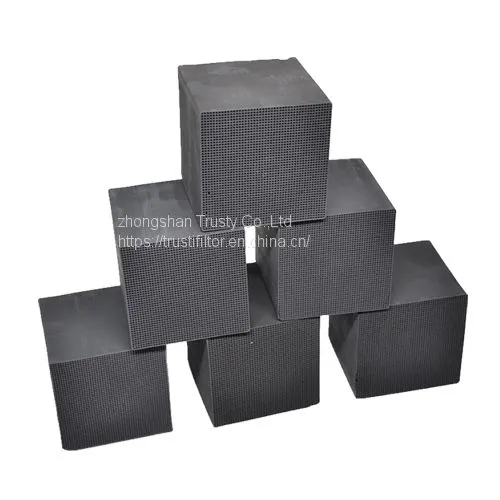

Product Introduction
It is completed in two steps, at first, honeycomb shape is formed after manganese catalyst and clay be mixed;
and then, honeycomb filter be placed in high temp. oven at least 48hrs after drying process finished.
Advantage
1. High efficiency for ozone removal;
2. Long life comparing with others;

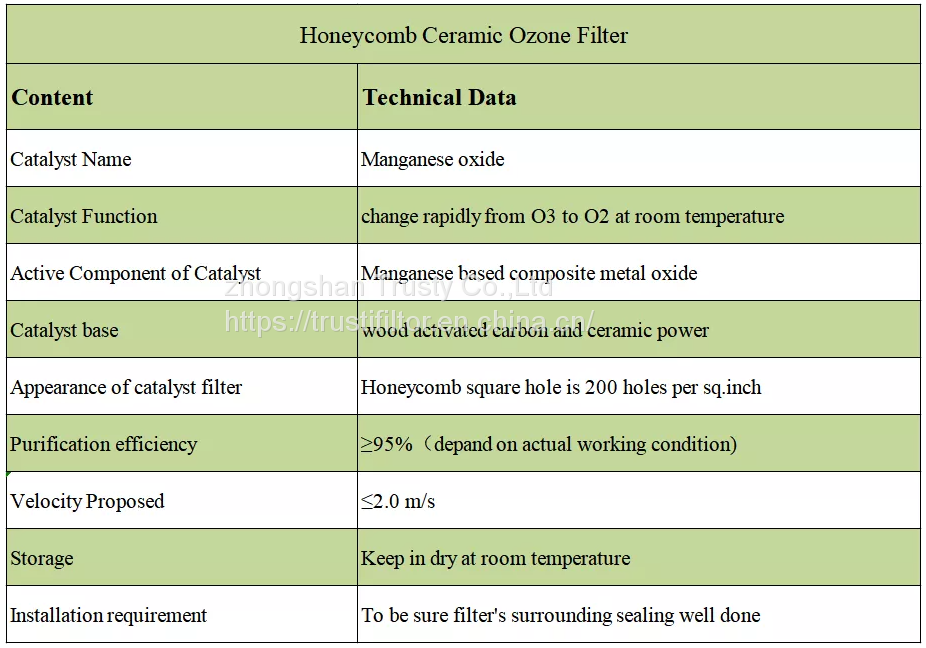

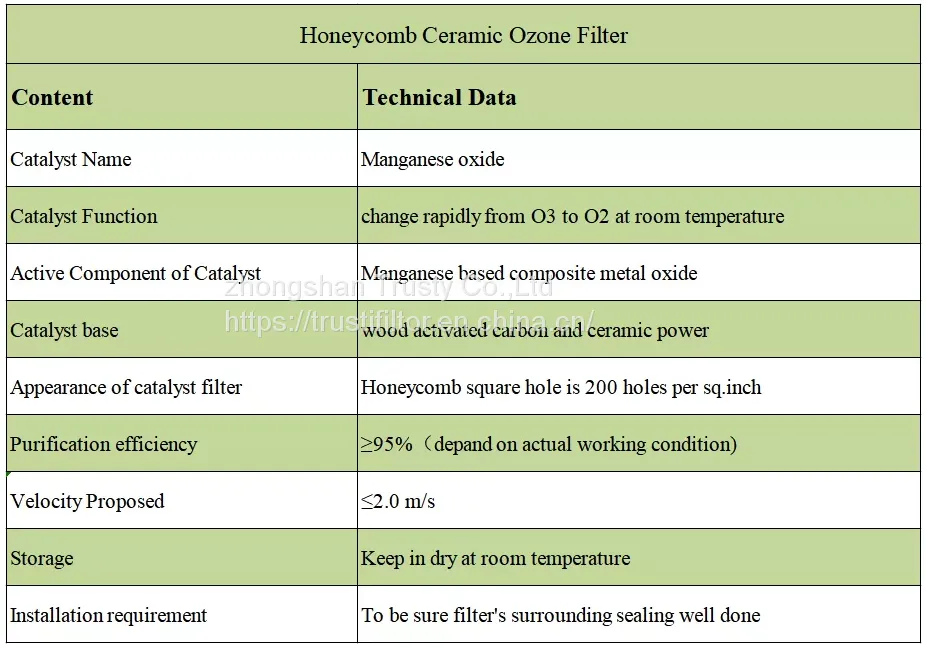

Detailed Parameters
Principle
In the air system mixed with O3, the O3 be decomposed to O2 rapidly at the room temperature, while the ozone hits the filter surface coated with catalyst, the extra energy not be needed in whole action process.
Step1： O3 + Mn → M-O + O2
Step2： M-O + O3 → M + 2O2

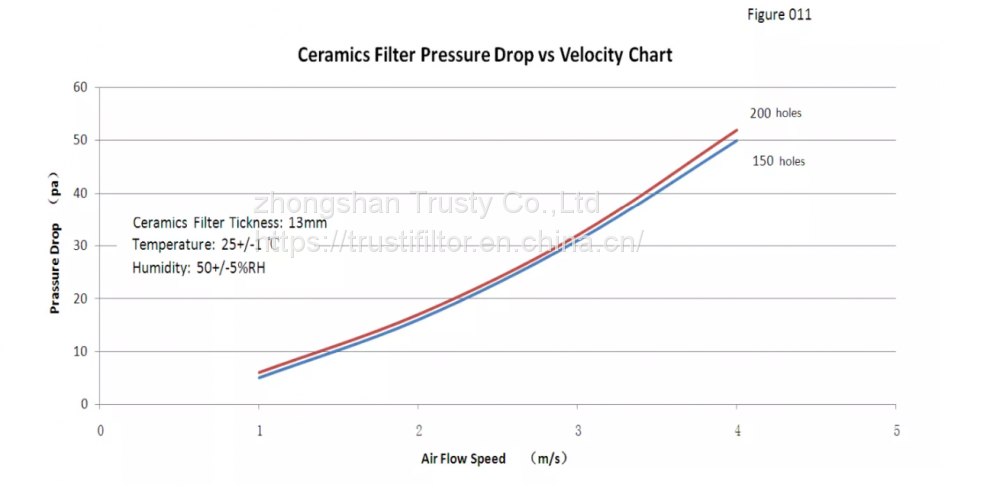

Performance
Applications
1.Plasma air purifier,high-voltage equipment and etc.;
2.Elimination of residual ozone in wastewater treatment;
Manufacturing Standard
* TF's Standard
* ISO9001
