Product introduction

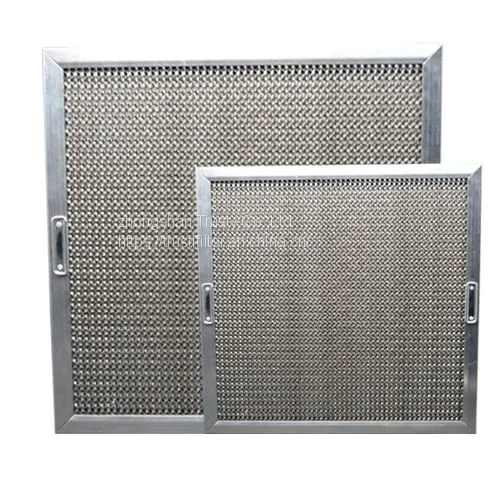

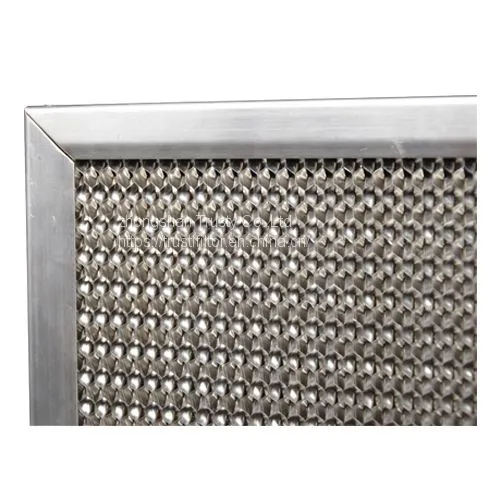

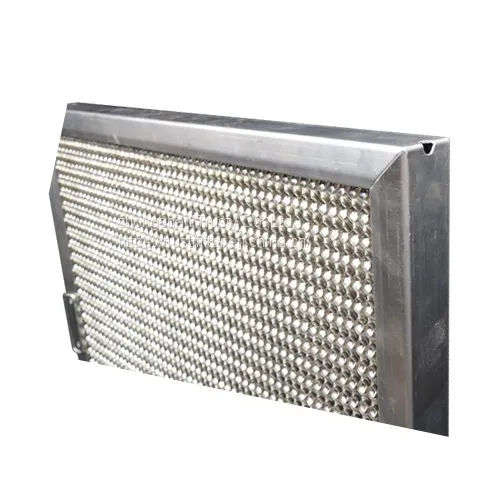

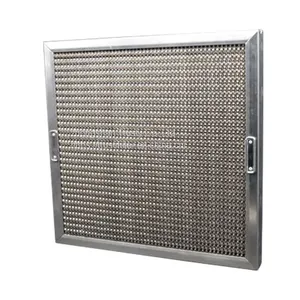

The honeycomb stainless steel degreasing filter adopts stainless steel S-shaped core body, which is wrapped with stainless steel frame. The contact area between the core body and the oil fume is larger, which is conducive to efficient oil collection. The oil collected by the filter screen flows into the oil collection tank through the oil leakage hole at the corner of the filter, which has the advantages of high efficiency, firmness and durability.
Advantage
* The metal edge is the anti scratches design;
* S-type calendering process to increase the contact area of oil fume and reduce the wind resistance;
* High oil removal efficiency, realizing the interception by 70%-85% of large oil particles and impurities;
* Fire resistance and effectively preventing fire from escaping into the flue;
* Strong structure, easy installation and disassembly, low maintenance cost;
Principle:

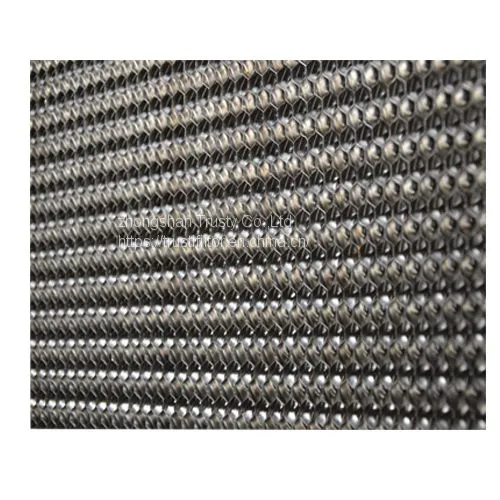

The filter has an S-shaped channel. When the oil fume air flows through the filter, the oil droplets collide with the channel wall in the channel and gather into larger oil droplets to remove the oil fume.

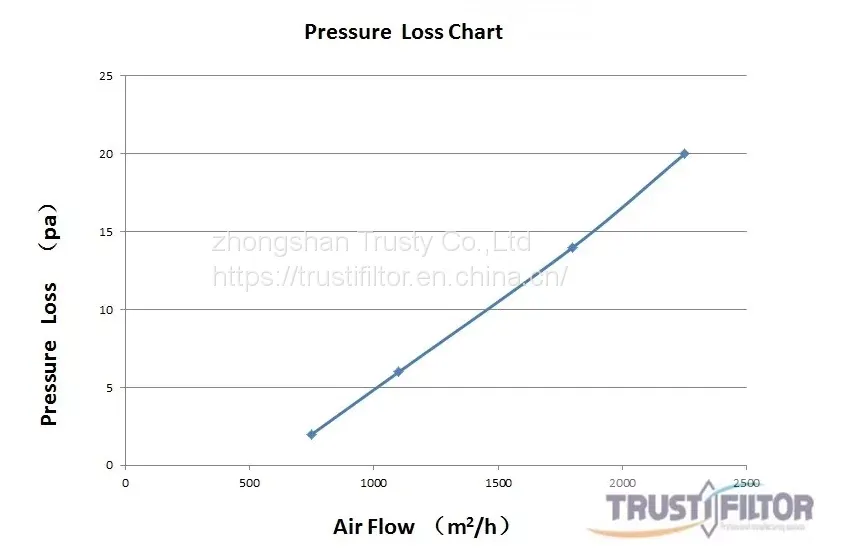

Performance

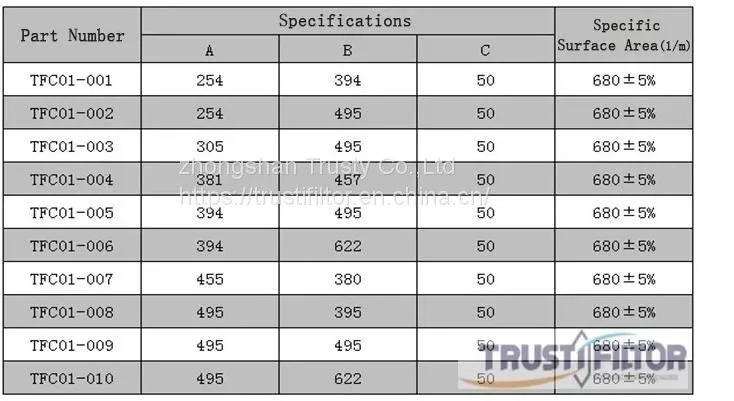

Specification
Customized according to customer requirements.
Applications:
·Commercial kitchens ·Flame arresters
·Water mist separation · Sand filtration
·Grease filtration
Manufacturing Standard
* TF's Standard
* ISO9001
