Product Details
| Brand Name | PHONEFIX | Place of Origin | China | |
| Model Number | MS005 |
Product Description
10X-150X simul-focal trinocular stereo microscope head with continuous zoom WF10X/20 eyepiece auxiliary objective lens, HD 1080P 5MP integrated trinocular stereo white microscope with LCD display screen, 8 horizontal and vertical grid lines, color thickness adjustable and movable, 1080P 5MP Lab industrial simul-focal trinocular stereo microscope for mobile phone PCB soldering repair
Specification:

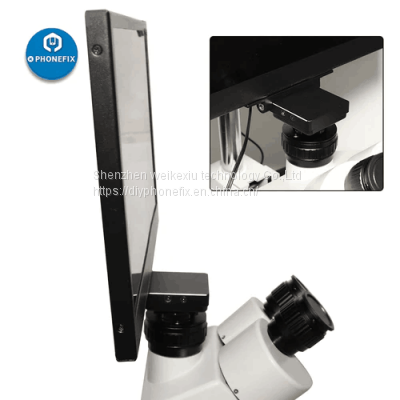

Display: 13.3 inch
Digital Camera: HD 1080P 5MP, 10 million pixels
Image Resolution: 1920* 1080
Frame Rate: HDIM output, 60 frames/second
Output interface: HDMI output + USB output
Optical Magnification: 10X - 150X
Electronic Magnification 10-150 (standard 13.3 inch) Max 1000X
Camera Interface Eyepiece: 0.4X (large viewing angle, no vignetting)
Observation Head: inclined at 45, and the viewing binocular observation head can make 360, the adjustment range of interpupillary distance: 54-76mm, both eyepiecestalk visibility can be adjusted, and adjustable range is ±5 diopters, trinocular spectroscopy imaging
Eyepiece: wide field, high-point eyepiece WF10X20, it can observe image of observation specimen with glasses
Continuous Zoom: 1:6.5
Working Distance: Standard working distance 100mm, but extended range of working distance is 30mm-265mm with auxiliary objectives
Auxiliary illuminant: 56 high-brightness ∮5mm LED lamp beads, brightness can be adjusted
Bracket: Big workbench
Column Height: 240mm
Base Size: 380*250mm
Optional Eyepiece: WF15X15mm, WF20X10mm, WF25X9mm, WF30X8mm
Optional Accessory Objective: 0.3X.0.5X.0.75X.1X.1.5X.2.0X
External equipment: external monitor (HDMI output)
Basic functions: photo, video, measurement, image comparison
Picture quality adjustment: exposure, color temperature, white balance
Grid lines: 8 horizontal and vertical, color thickness adjustable and movable
Picture quality adjustment: exposure, color temperature, white balance

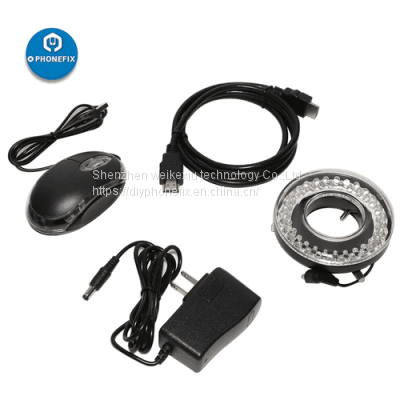

Package Included :
1pcs x Trinocular stereo microscope with LED & dimmer, microscope stand
1pcs x 13.3" HDMI integrated camera
1pcs x Dust cover
1pcs x 12V power supply
1 pair of WF10X/20mm eyepiece with rubber eye guards
1pcs x 0.5X Objective
