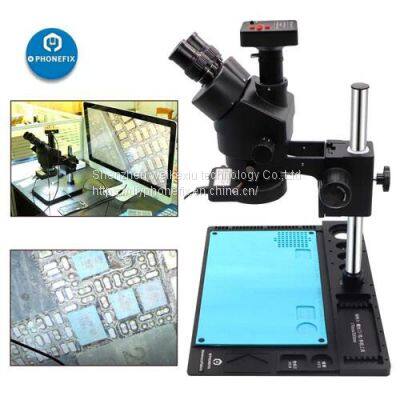

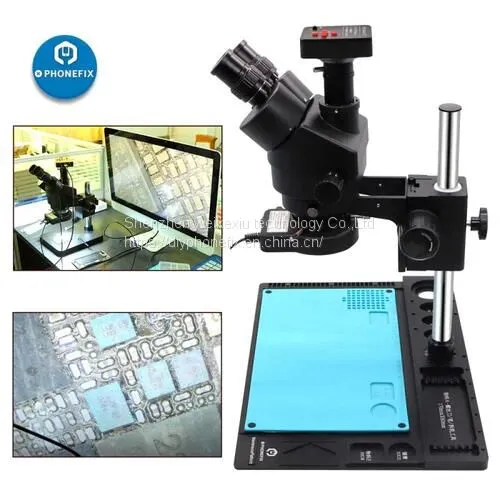

Black Simul-focal 7-45X Trinocular Stereo Zoom Microscope With Aluminum Alloy Base Pad

Black Simul-focal 7-45X Trinocular Stereo Zoom Microscope with Aluminum Alloy base pad. 3.5X-90X Trinocular Stereo Zoom Microscope with metal aluminum alloy holder fixed base 38MP HDMI camera LED Ring Light for Mobile Phone Motherboard Welding Repair.

It is synchronous, what you can observe are shown at the same time as the camera display, 3.5X-90x Trinocular Stereo microscope with Aluminum Alloy Pad, option 14/16/20MP HDMI or VGA Camera adapter, phone repair engineer Trinocular Stereo microscope, with Repair Tools parts & material collector storage slot.

Aluminum alloy microscope bases professional phone repair Workbench Platform, Aluminum Alloy Pad (with silicone pad) - Ring Light LED, protection glass (UV glass), 14MP / 16MP / 20MP HDMI / VGA camera adapter (Optional), 0.5x and 2.0x Objective lens (Optional)

Parameter:

Head: 45°Inclined 360°rotatable trinocular

Eyepieces: Eyepiece: 30mm super widefield high-eyepoint WF10X/20mm

Zoom ratio: 1:6.4

Auxiliary objective (option): SZM 0.5X & SZM 2.0X

Objective zoom: 0.7x~4.5x (Objective: 0.35-9.0X, Choose: 2.0X / 0.5X Objective Len)

Both ocular tubes have diopter adjustment: ±5dp

Interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)

Working distance: 100mm

Focus adjustment stroke: 2-3/8" (50mm).

Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base

Microscope fixed base: 41.5cm*29cm aluminum alloy pad

Features:

HD Recording Camera

LED ring-light

Top quality optical glass elements

Sturdy metal framework

45°inclined 360°rotatable trinocular head

Captures Microscope Images and Streams Live Video on big size TV

Built-in Reduction Lens Provides the Same Field of View on Screen as Through Eyepiece

3.5X-90X stereo zoom microscope in black finish

Super widefield optical system offers crystal clear stereo images

Long working distance allows enough operation space

Both ocular tubes have diopter adjustment

Adjustable inter-pupillary distance to fit anyone's eyes

Package List:

7-45X Microscope with Aluminum Pad Standard:

1x 7-45X Black Trinocular Microscope.

1x Phonefix 41.5*29cm Aluminum Alloy Pad(black) with bracket.

2x WF10X / 20mm eyepiece with rubber eye guards(1 pair).

1x 56 LED Light.

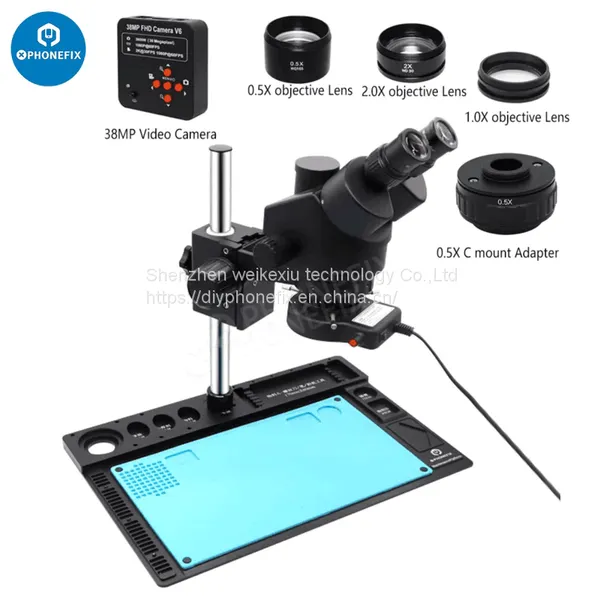

3.5-90X Microscope with Aluminum Pad 38MP 0.5X C Mount:

1x 7-45X Black Trinocular Microscope.

1x Phonefix 41.5*29cm Aluminum Alloy Pad(black) with bracket.

2x WF10X / 20mm eyepiece with rubber eye guards(1 pair).

1x 56 LED Light.

1x 38MP HDMI camera.

1x 0.5X C Mount adapter.

1x 2.0X objective lens.

1x 0.5X objective lens.

1x 1.0X objective lens.

7-45X Simple Pad Standard:

1x 7-45X Black Trinocular Microscope.

1x Simple metal pad(black).

2x WF10X / 20mm eyepiece with rubber eye guards(1 pair).

1x 56 LED Light.

3.5-90X Microscope with Aluminum Pad 38MP 0.5X C Mount:

7-45X Microscope with Aluminum Pad Standard:

1x 7-45X Black Trinocular Microscope.

1x Phonefix 41.5*29cm Aluminum Alloy Pad(black) with bracket.

2x WF10X / 20mm eyepiece with rubber eye guards(1 pair).

1x 56 LED Light.

3.5-90X Microscope with Aluminum Pad 38MP 0.5X C Mount:

1x 7-45X Black Trinocular Microscope.

1x Phonefix 41.5*29cm Aluminum Alloy Pad(black) with bracket.

2x WF10X / 20mm eyepiece with rubber eye guards(1 pair).

1x 56 LED Light.

1x 38MP HDMI camera.

1x 0.5X C Mount adapter.

1x 2.0X objective lens.

1x 0.5X objective lens.

1x 1.0X objective lens.

7-45X Simple Pad Standard:

1x 7-45X Black Trinocular Microscope.

1x Simple metal pad(black).

2x WF10X / 20mm eyepiece with rubber eye guards(1 pair).

1x 56 LED Light.

3.5-90X Microscope with Aluminum Pad 38MP 0.5X C Mount:

1x 7-45X Black Trinocular Microscope.

1x Simple metal pad(black).

2x WF10X / 20mm eyepiece with rubber eye guards(1 pair).

1x 56 LED Light.

1x 38MP HDMI camera.

1x SZM CTV 1/2 C Mount adapter.

1x 2.0X objective lens.

1x 0.5X objective lens.

1x 1.0X objective lens.
