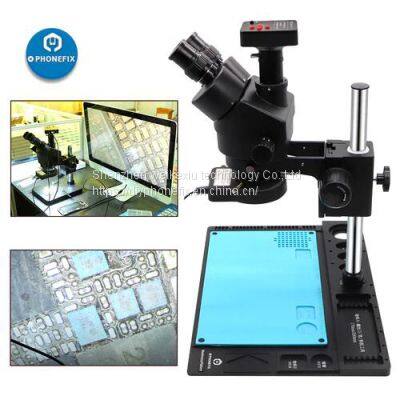

3.5X-90X Black Trinocular Stereo Zoom Microscope Camera for Phone PCB Soldering

Black version 3.5X-90X trinocular stereo zoom microscope with aluminum alloy bracket fixed base + LED ring light + mobile phone motherboard welding repair HD camera.

It is synchronous, what you can observe are shown at the same time as the camera display, 3.5X-90 x Trinocular Stereo microscope with Aluminum Alloy Pad, option 14/16/20MP HDMI or VGA Camera adapter, phone repair engineer Trinocular Stereo microscope, with Repair Tools parts & material collector storage slot.

Aluminum alloy microscope bases professional phone repair Workbench Platform, Aluminum Alloy Pad (with silicone pad) - Ring Light LED, protection glass (UV glass), 14MP / 16MP / 20MP HDMI / VGA camera adapter, 0.5x and 2.0x Objective lens (Optional)

Parameter :

Head: 45° Inclined 360°rotatable trinocular

Eyepieces: Eyepiece: 30mm super widefield high-eyepoint WF10X/20mm

Zoom ratio: 1 : 6.4

Auxiliary objective (option): SZM 0.5X & SZM 2.0X

Objective zoom: 0.7x~4.5x (Objective: 0.35-9.0X choose: 2.0X / 0.5X Objective Len)

Both ocular tubes have diopter adjustment ±5dp

Interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)

Working distance: 100mm

Focus adjustment stroke: 2-3/8" (50mm)

Microscope fixed base size: 41.5cm*29cm aluminum alloy pad

Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base

Features :

Captures Microscope Images and Streams Live Video on big size TV

Built-in Reduction Lens Provides the Same Field of View on Screen as Through Eyepiece

Top quality optical glass elements

Long working distance allows enough operation space

Super wide-field optical system offers crystal clear images

45°inclined 360°rotatable trinocular head

Sharp erect stereo images over a wide field view

Both ocular tubes have diopter adjustment

Adjustable inter-pupillary distance to fit anyone's eyes

Sturdy metal framework

Package List :

1pc x 0.7x~4.5x Trinocular stereo microscope (Black Version)

1pc x VGA / 14MP / 16MP / 21MP HDMI Microscope Camera with HDMI, USB Cable or VGA cable

1pc x Aluminum Alloy Pad (Black Color)

1pc x Dust Cover

1 Pair of WF10X/20mm eyepiece with rubber eye guards
