HIROSS Air Compressor Auto Drain Valve

Auto Drain Valve

·What is the Drain Valves?
Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.

Auto Drain Valve  Characters
Imported IC chip, High quality in low price.
A model is suitable for all applications, easy installation, fully automatic and maintenance free.
Interval time and discharge time is adjustable and have a test button.
Pressure 16 Bar, various pressure and port can be choose.
Full stain steel valve, anti-explosion valve can be choose.
CE Certificate, level of protection is IP65, insulation grade is H.
Viton seal.
Equipped with 16 Bar ball filter, fission with drain valve, “L” construction.

·Auto Drain Valve Work Conditions
Steps as following:
1)Close isolation valves, press test button, to ensure that electronic drain valve has been isolated from air compressor system(under the zero pressure).
2)Cut off the drain valve power supply.
3)Remove the coil(Before remove the coil,must cut off the valve first,or valve body will burn out after electrify coil), separate the solenoid valve, remove the valve core and the spring, use water to clean it then installed again, the fault can be ruled out.

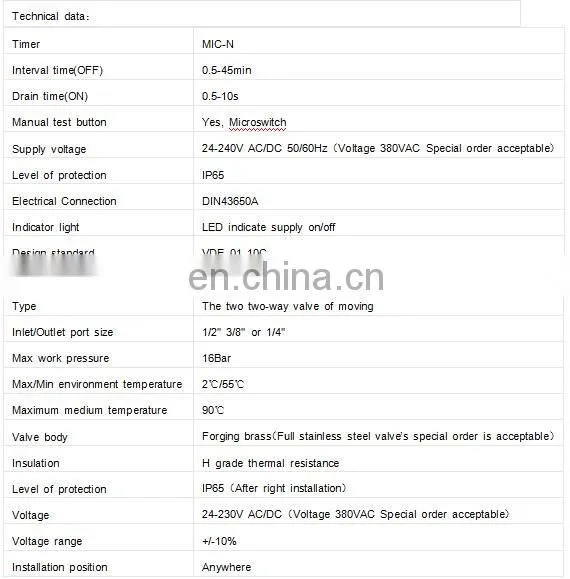

Auto Drain Valve technical parameters

Packaging Details

Packed in small single box first and then in big carton box for more safety transportation

Delivery Time

Shipped in 15 days after payment
