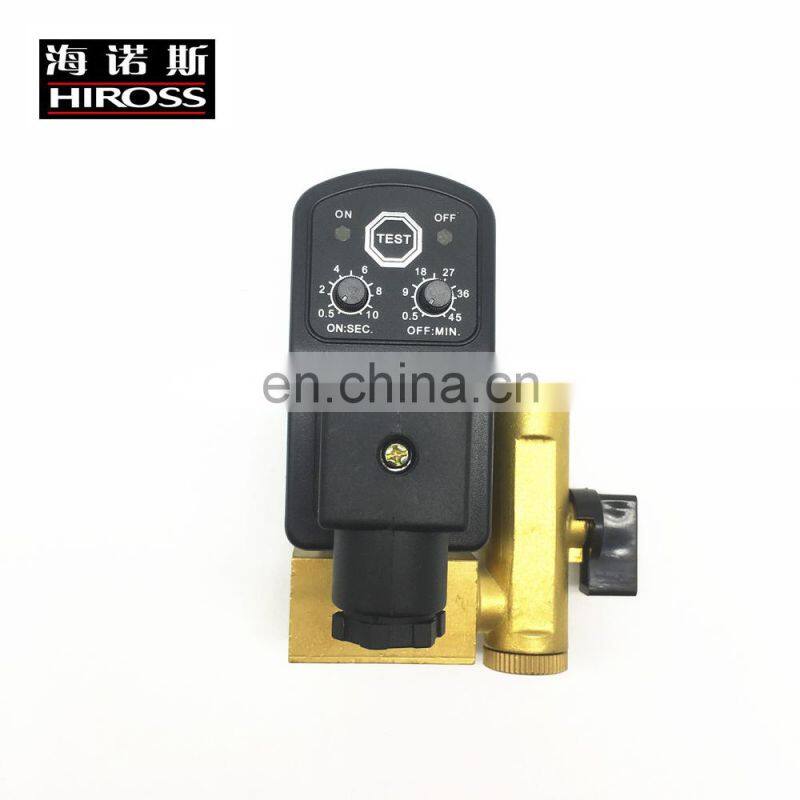

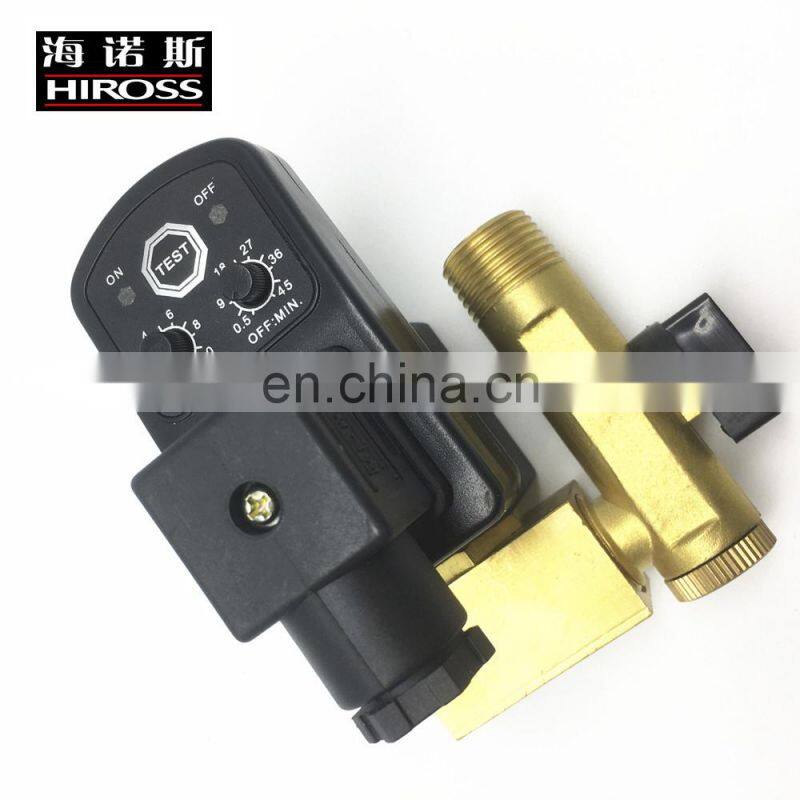

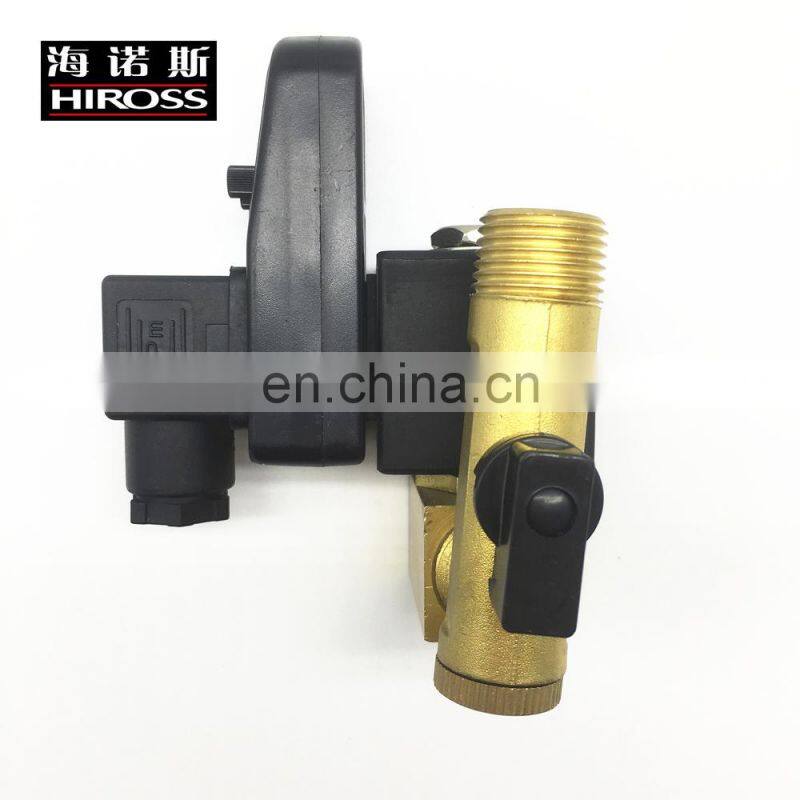

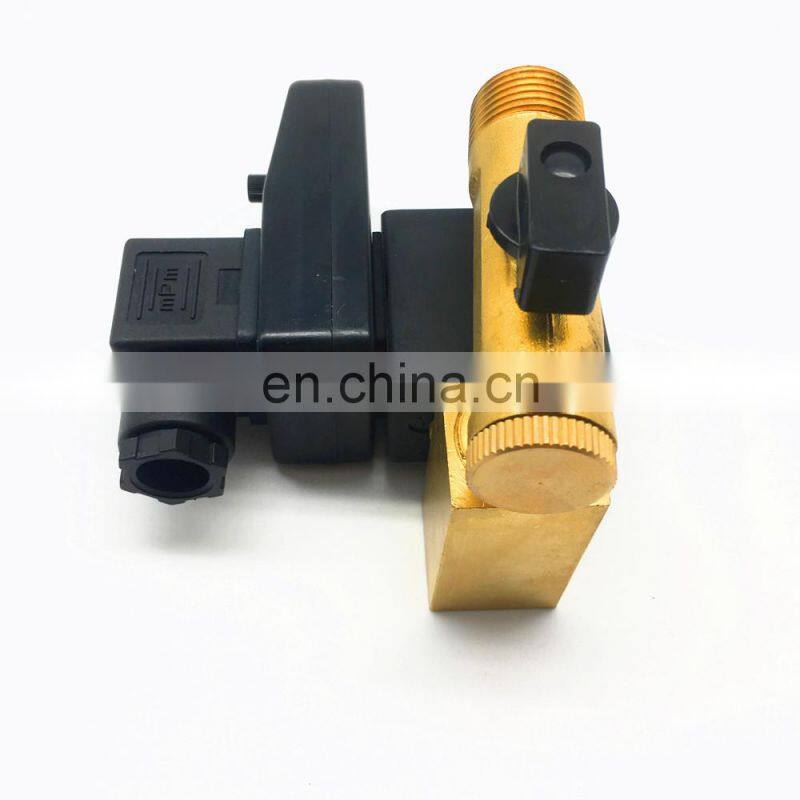

1/2" Electronic Auto Drain Valve with Timer for Air Compressor Condensate
- T/T Credit Card
You May Like
-
HIROSS Air Compressor Auto Drain Valve
-
Auto solenoid drain valve for Spare parts for refrigerated air dryer for air compressor
-
Manometer Liquid Filled Pressure Gauge Wholesale brass pressure gauge manometer
-
Zero gas loss aluminium alloy auto drain valve for air compressor air tank air filter
-
MIC-HP350 Bar Ultra high Pressure Auto Drain Valve
-
HR0912 Hiross Zero Loss Auto Drain Valve for Compressor Air Dryer
Product Description
Auto Drain Solenoid Valve
·What is the Drain Valve?
Drain valve to simulate an electronic circuit solid state electronic timer and solenoid valve to match the timing of realization of the compressed air system condensate automatic discharge. High voltage electron drain valve widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components, discharge time and interval can be adjusted according to different needs.
Timer | ||
Interval Time | 0.5-45mins | |
Discharge Time | 0.5-10 seconds | |
Manual Test Switch | yes | |
Supply Voltage | 24V--~240V±10% 50/60HZ | |
Current Consumption | Max. 4mA | |
Oprating Temperature | -40℃~5040℃ | |
Environmental protection | IP 65 | |
Case Material | ABS Plastic FR Grade | |
Indicators | Yellow, valve open | |
Yellow, valve closed | ||
Valve | ||
Type | 2/2-way direct acting valve | |
In/Out Ports | 1/4",1/2" female | |
Max. working pressure | 16bar | |
Operating Temperature | 2℃/55℃ ambient | |
Media Temperature | Max.90 ℃ | |
Valve body | Forged Brass | |
Insulation | Thermal Group H Grade (180 ℃) | |
Environmental protection | IP 65 | |
Supply Voltage | 24V--~240V ±10% 50/60HZ | |
Mounting | in any position | |
Main Features
-This compressed air condensate automatic drainer is significantly different from traditional mechanical automatic drainer, which is belong to continuous drops drain.
-Shell is made of casting aluminum alloy, with plastic powder coating surface, resistant to corrosion.
-Automatic drainer is extremely reliable in operation, no electricity needed, no noise, no loss of compressed air.
-Drainer has big drainage outlet that is not easily blocked; it is a new generation and great choice of compressed air equipment drainer.
-This is a quite stable drainer which has great performance and low failure rate.
micro heat adsorption air dryer
Compressed air tank
Compressed air filter
Air filter
Auto drain Valve
float ball type drain valve
Hiross (Zhangzhou) Industrial Machinery Co.,Ltd, has specialized in Compressed Air Drying and Purifying Equipment for more than 15years,is a professional manufacturer engaged in the research, development, production, sale and service of refrigerated air dryer,desiccant air dryer,air filter,air filter element,dehumidifier,and other accessories.
We are located in Zhangzhou City with convenient transportation access,only 1 Hour distance to Xiamen Port. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In recent years, our company has obtained I S O 9 0 0 1,C E,G C C A certificates. Selling well in all cities and provinces around China, Our products are available in 30 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, UK, Mexico, Spain, Serbia,Italy, Finland, Australia, Philippines, Pakistan, Thailand, Indonesia, India,Africa.Our products have been widely used in kinds of industry including petroleum, chemical, electric power, food, medical, biological pharmaceutical,textile industry.We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, welcome to contact our customer service center about your sourcing requirements.
customer's visiting
customer's visiting
customer's visiting
Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
