Home > Products > Refrigerated Air Dryer > Best Quality High Pressure Compressed Air Cooled Refrigerated Air Dryer HR-10AC

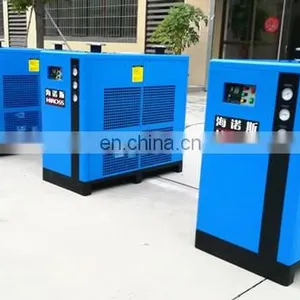

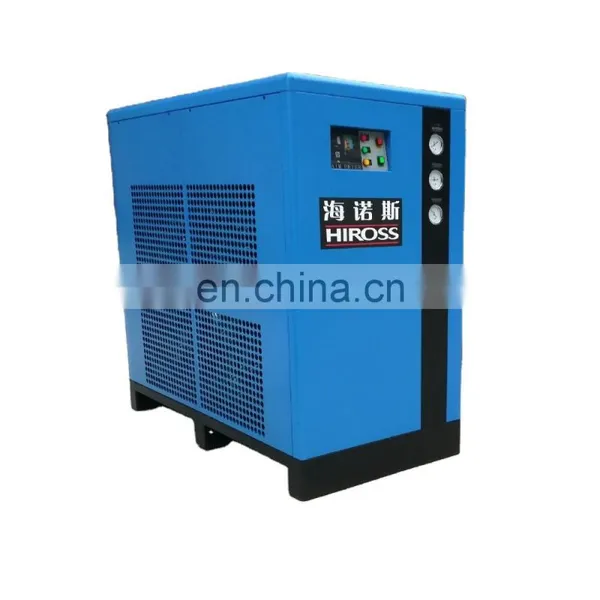

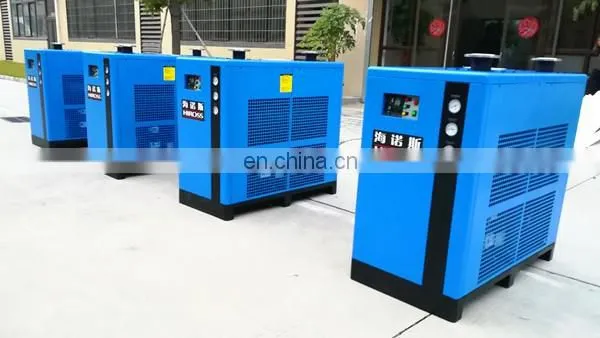

Best Quality High Pressure Compressed Air Cooled Refrigerated Air Dryer HR-10AC
- T/T Credit Card
You May Like
-
HOT Sales Air-cooled High Temperature Refrigerated Dryer Air Dryers for Compressors Suppliers
-
2021 Hot Selling High Quality Air Dryer For Compressor
-
High Quality Standard Premium Refrigerated Refrigerated Compressed Air Dryer
-
Hot Sale Refrigeration Compressor for Air Dryer
-
130CFM Air Compressor Refrigerated Freeze Dryer
-
Air Cooled Refrigerated Compressor Air Dryer With Famous Compressor
Product Description
Air cooling refrigerated air dryer HR-10AC | ||
Max Inlet Temperature | 80℃ | |
Max Environment Temperature | 40℃ | |
Voltage | 220V/50HZ(other voltage also can be customized) | |
Refrigerant | R407C | |
Air Entrance Diameter: | DN100 | |
Dew point | 2~10℃ | |
Working pressure | 0.6~1Mpa | |
Main Features
1) easy in installation and maintation.

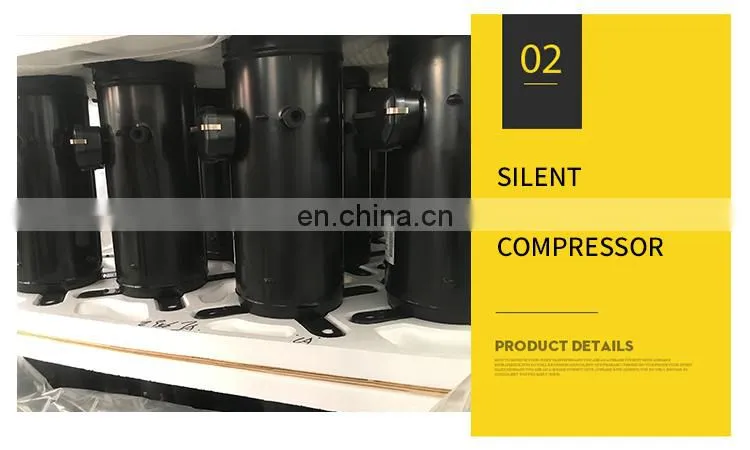

2) Adopting advanced world famous brand components in compressor parts and other accessory parts.
3) Excellent quality with long lifetime
4) Low noise
Model | Capacity (Nm^3/Min | Applicable Air Compressor (HP) | Power Consumption (KW) | Air Entrance Diameter | Unit Size (mm) (L*W*H) | Power | Weight (Kg) |
HR-10AC | 1 | 5 | 0.65 | G1'' | 650*400*600 | 220V/50Hz | 40 |
HR-15AC | 1.5 | 10 | 0.75 | G1'' | 700*400*690 | 220V/50Hz | 48 |
HR-23AC | 2.3 | 15 | 0.85 | G1'' | 700*400*690 | 220V/50Hz | 56 |
HR-28AC | 2.8 | 20 | 1 | G1'' | 780*400*780 | 220V/50Hz | 68 |
HR-38AC | 3.8 | 30 | 1.35 | G1.5'' | 930*500*850 | 220V/50Hz | 125 |
HR-55AC | 5.5 | 40 | 1.4 | G1.5'' | 930*500*850 | 220V/50Hz | 135 |
HR-69AC | 6.9 | 50 | 1.7 | G2'' | 980*540*910 | 220V/50Hz | 158 |
HR-86AC | 8.6 | 60 | 2.1 | G2'' | 980*540*910 | 220V/50Hz | 160 |
HR-110AC | 11 | 75 | 2.6 | G2.5'' | 1080*600*1000 | 220V/50Hz | 198 |
HR-150AC | 15 | 100 | 3.6 | G3'' | 1220*680*1160 | 380V/50Hz | 225 |
HIROSS INDUSTRY MACHINERY CO.,ltd have more than 10 years experience in designing,researching and developing and manufacturing the purify,environment friendly,energy saving equipment.Product various from compressed air dryer,dehumidifier,filter,chiller,to accessories,etc.
HIROSS company occupies a 1500 square meter manufacturing field,focus on advanced technology,combining with internationally processing technology to develop and manufacture a series of high performance,low vibration, quiet operation and trouble free equipment.A series of HIROSS products have passed ISO9001,CE,2008 international quality system certification.
We are pleased to welcome you from home or abroad to our company for a visit or a business talk, even if you have already had a familiar partner.
Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
